🇵🇱 ZSD Nysa N59-M Minibus (1959 - 1964)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

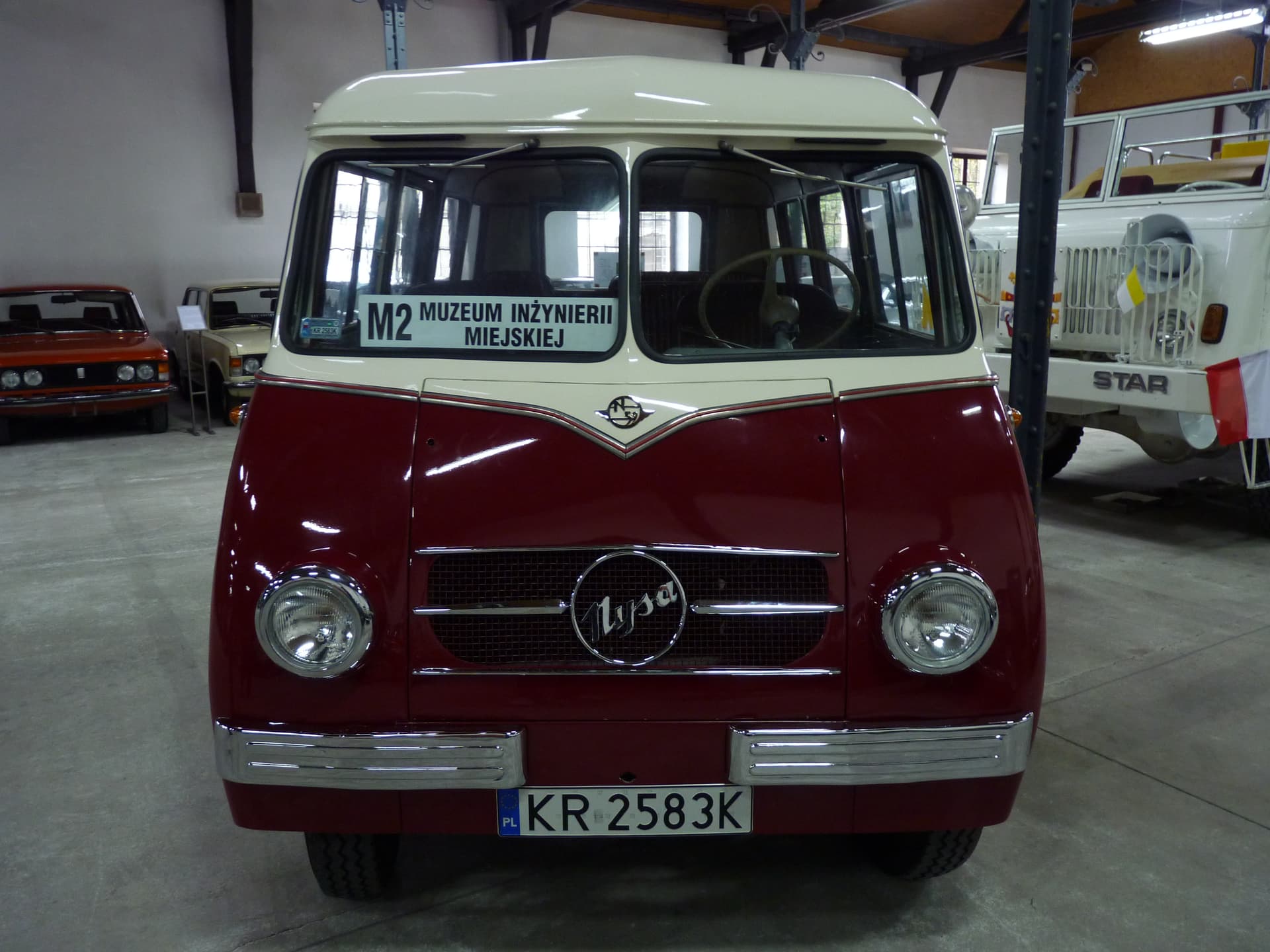

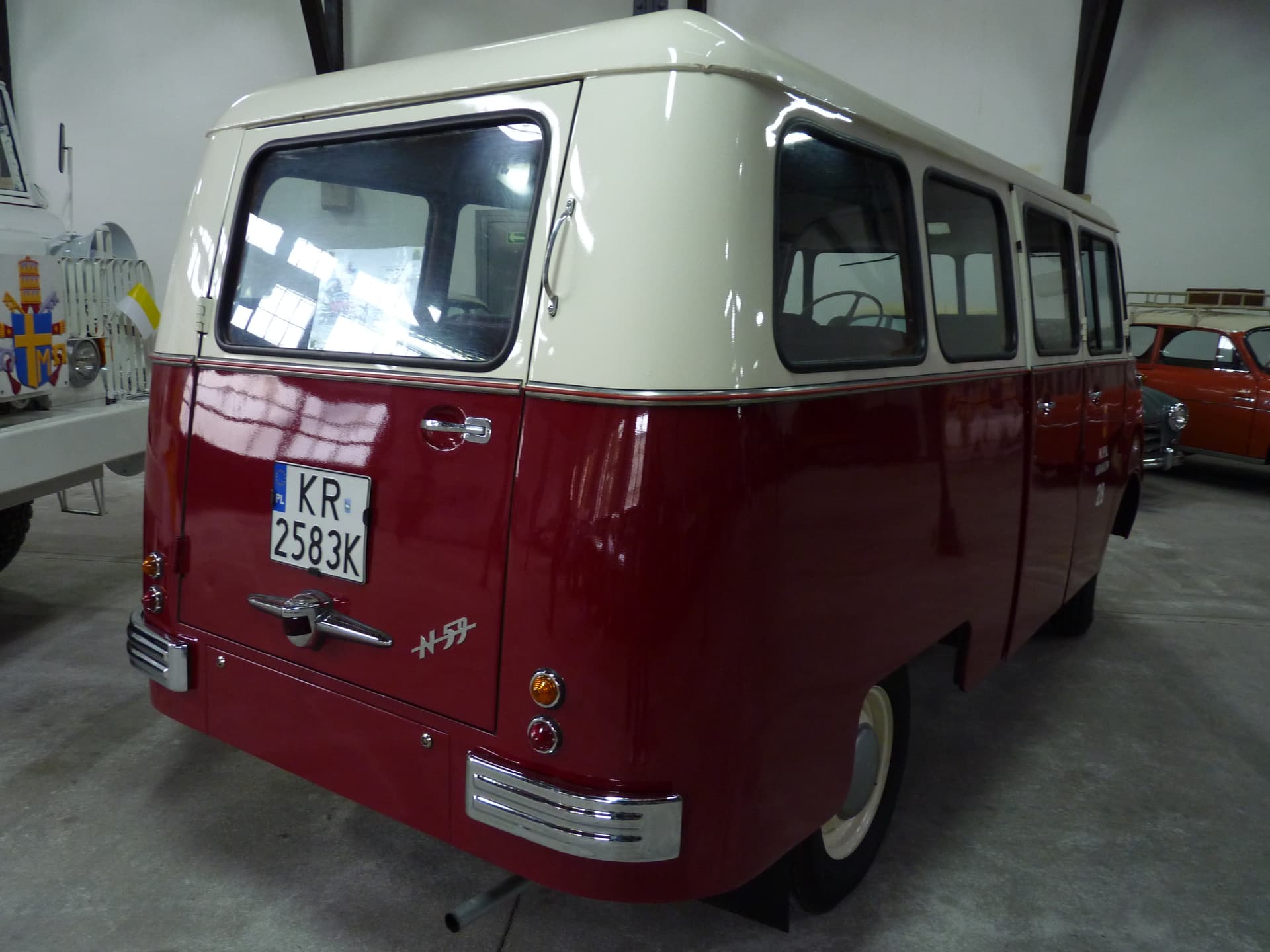

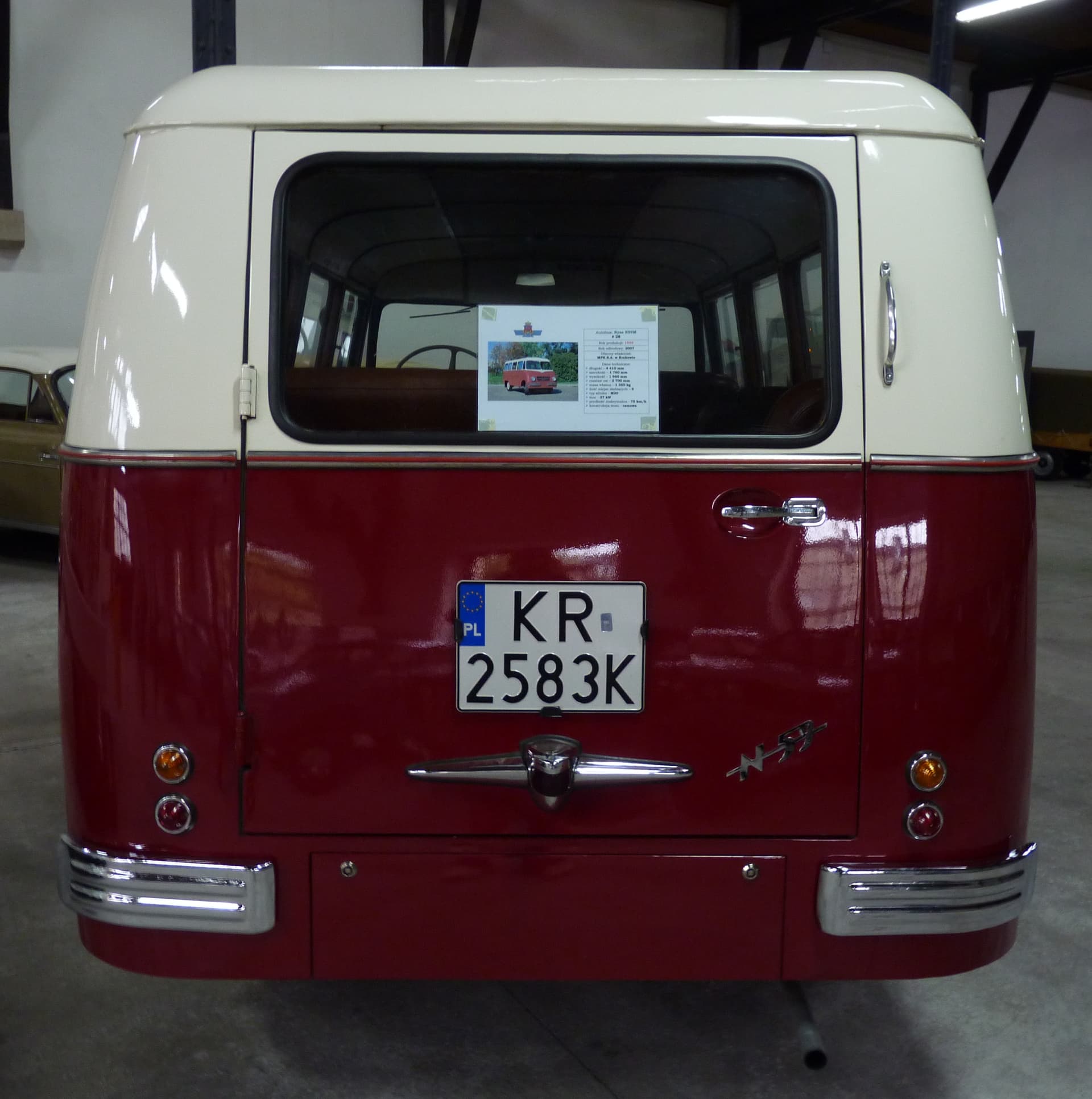

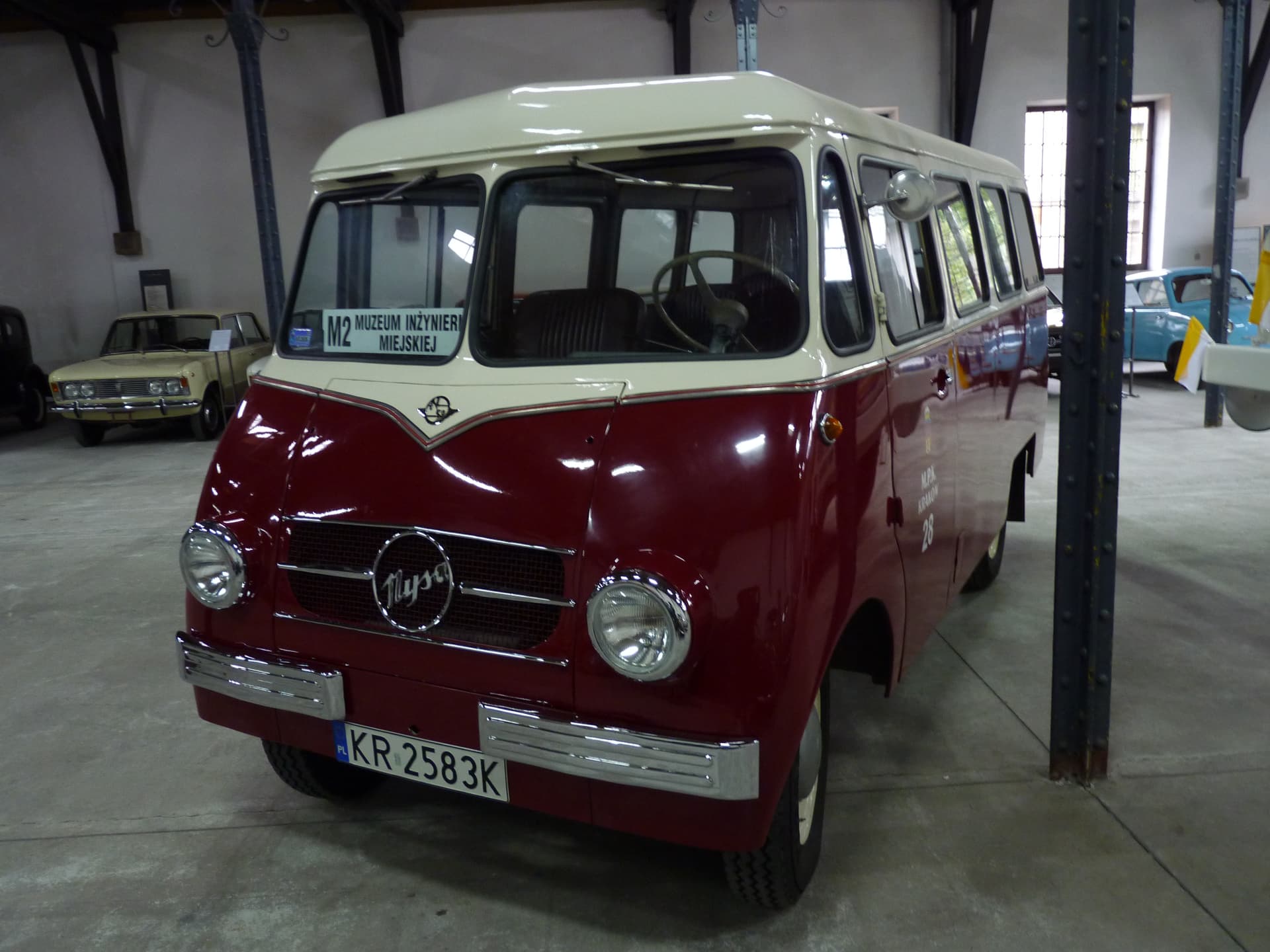

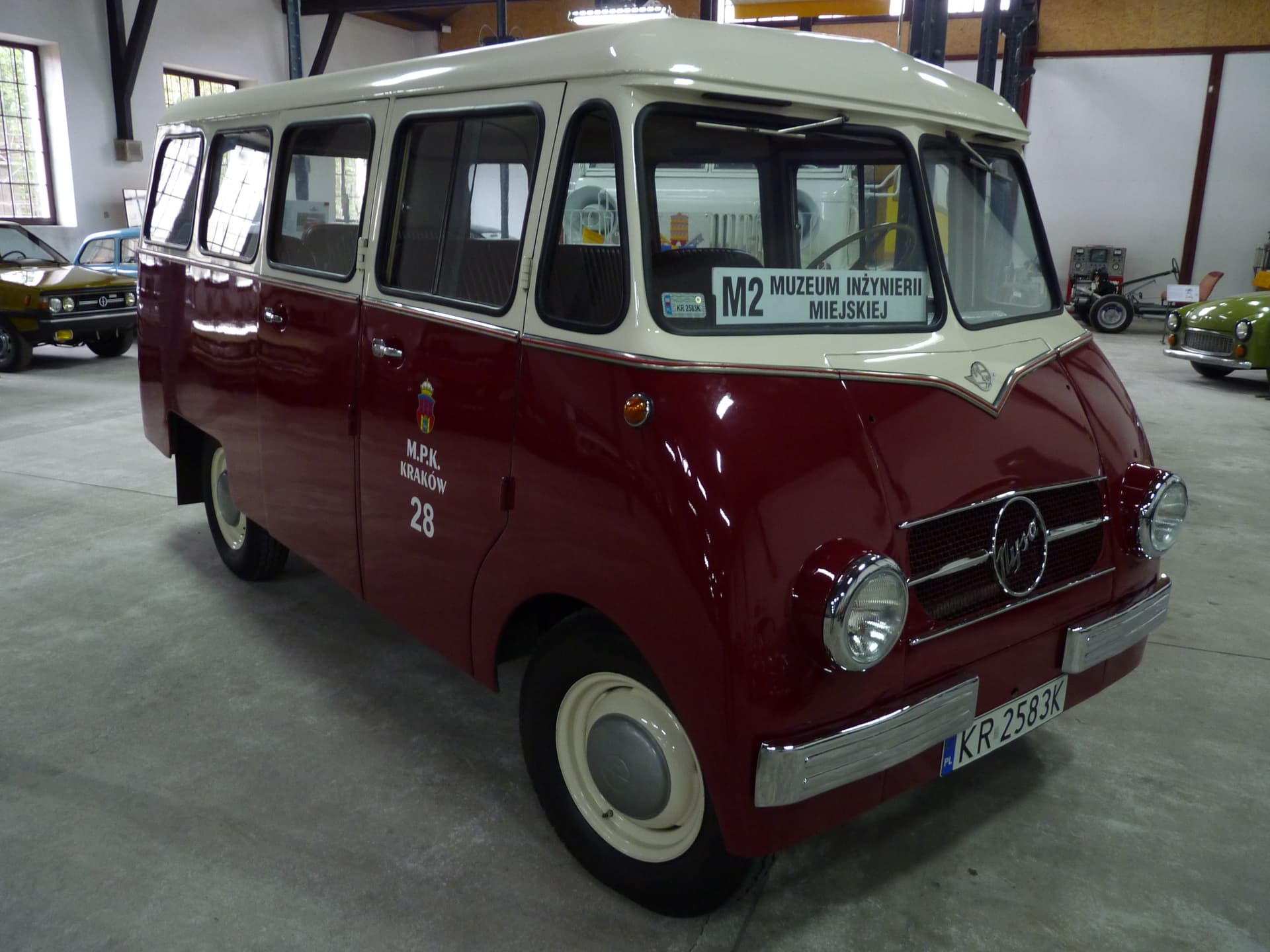

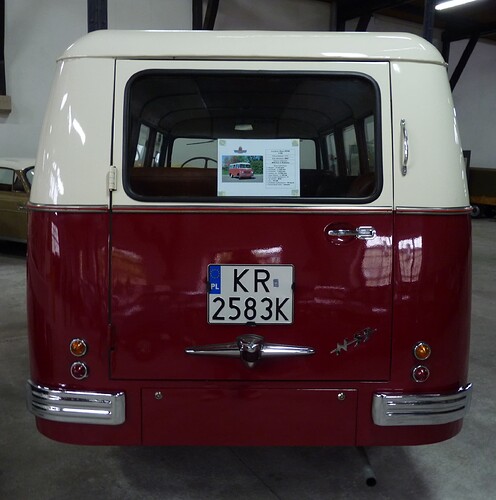

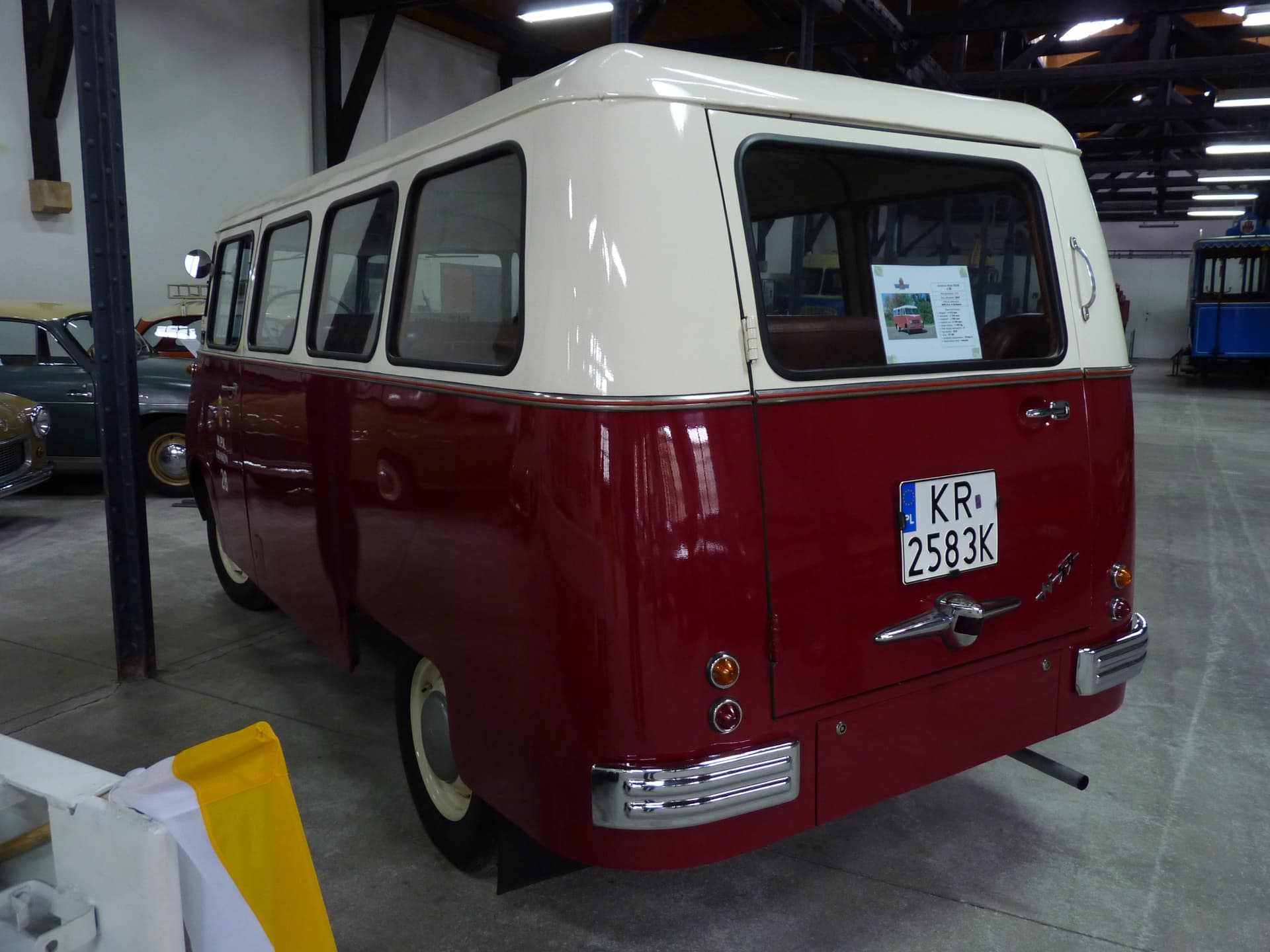

ZSD Nysa N59-M Minibus

–––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: LCV

• Body type: 4-door minibus

• Transmision: 3-speed automatic

• Clutch type: friction, single-disc

• Drivetrain: RWD

• Length: 4400 mm

• Width: 1760 mm

• Height: 1960 mm

• Wheelbase: 2700 mm

• Steering system type: globoid worm gear

• Tire size: 165/80 R16

• Rim size: 4.5 x 16

• Front brake type: drum

• Rear brake type: drum

• Front suspension type: independent

• Rear suspension type: dependent

• Own weight: 1550 kg

• Number of seats: 9

–––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: M-20

• Produced: from 1951 to 1957

• Displacement: 2120 cm³

• Engine type: 4-stroke petrol

• Engine power: 50 HP (37 kW) at 3600 rpm

• Maximum torque: 116 Nm at 2200 rpm

• Engine mounting: at the front, longitudinally

• Location of the camshaft: SV

• Number of cylinders: 4

• Cylinder arrangement: inline

• Number of valves: 8

• Compression ratio: 6.2:1

• Injection type: Jikov 40 SOP single-barrel carburetor

• Ignition type: spark

• Maximum speed: 90 km/h

• 0 - 90km/h: no official info

• Engine code: M-20
