Volvo 740 GLE Wagon

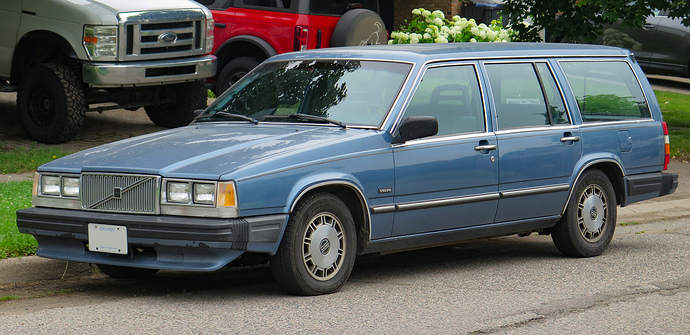

1986_Volvo_740_GLE_Wagon_in_Medium_Blue_Metallic,_front_left,_2024-07-15
1986_Volvo_740_GLE_Wagon_in_Medium_Blue_Metallic,_front_left,_2024-07-151920Γ—934 1.74 MB

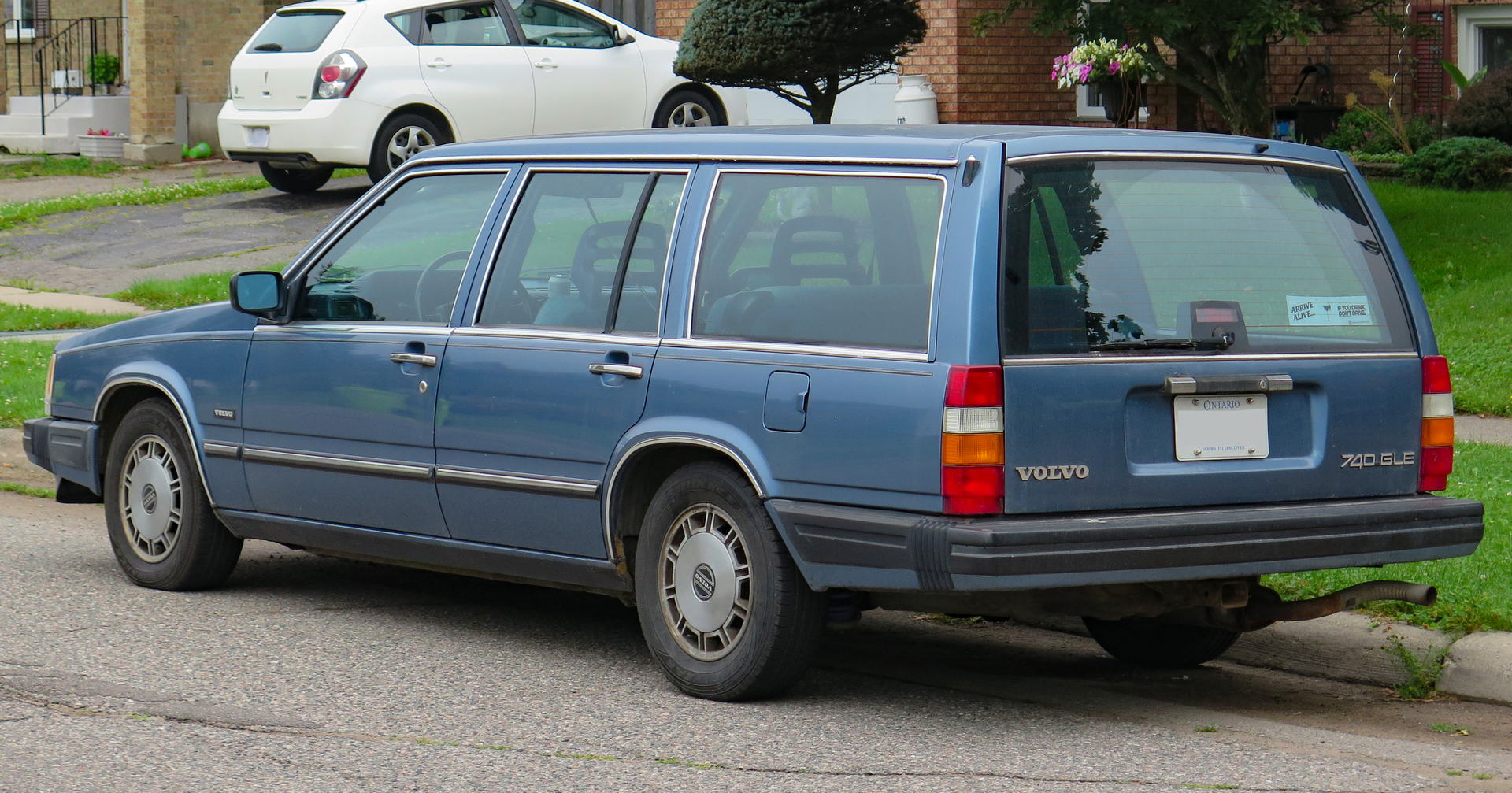

1986_Volvo_740_GLE_Wagon_in_Medium_Blue_Metallic,_rear_left,_2024-07-15
1986_Volvo_740_GLE_Wagon_in_Medium_Blue_Metallic,_rear_left,_2024-07-151920Γ—1007 1.91 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: E

  • Body type: 5-door wagon

  • Transmision: 4-speed automatic

  • Drivetrain: RWD

  • Length: 4785 mm

  • Width: 1750 mm

  • Height: 1435 mm

  • Wheelbase: 2770 mm

  • Front wheeltrack: 1470 mm

  • Rear wheeltrack: 1460 mm

  • Steering system type: Rack and pinion with hydraulic power assist

  • Basic tire size: 185/65 R15

  • Optional tire sizes: 195/65 R15; 205/60 R15

  • Basic rim size: 5.5J x 15

  • Optional rim size: 7J x 15

  • Front brake type: Ventilated disc

  • Rear brake type: Disc

  • Front suspension type: Independent, MacPherson struts

  • Rear suspension type: Dependent, rigid axle

  • Own weight: 1360 kg

  • Number of seats: 5

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 740 GLE

  • Produced: from 1984 to 1988

  • Displacement: 2316 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 131 hp (96 kW) at 5500 rpm

  • Maximum torque: 190 Nm at 3300 rpm

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 10.0:1

  • Bore x stroke: 96 mm x 80 mm

  • Injection type: mechanical multi-point Bosch K-Jetronic

  • Ignition type: breakerless

  • Maximum speed: 180 km/h

  • 0 - 100 km/h: 12 seconds

  • Engine code: B23E
