🇩🇪 Volkswagen Transporter T4 Double Cab Pickup LWB Pre-Facelift (1990 - 1995)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

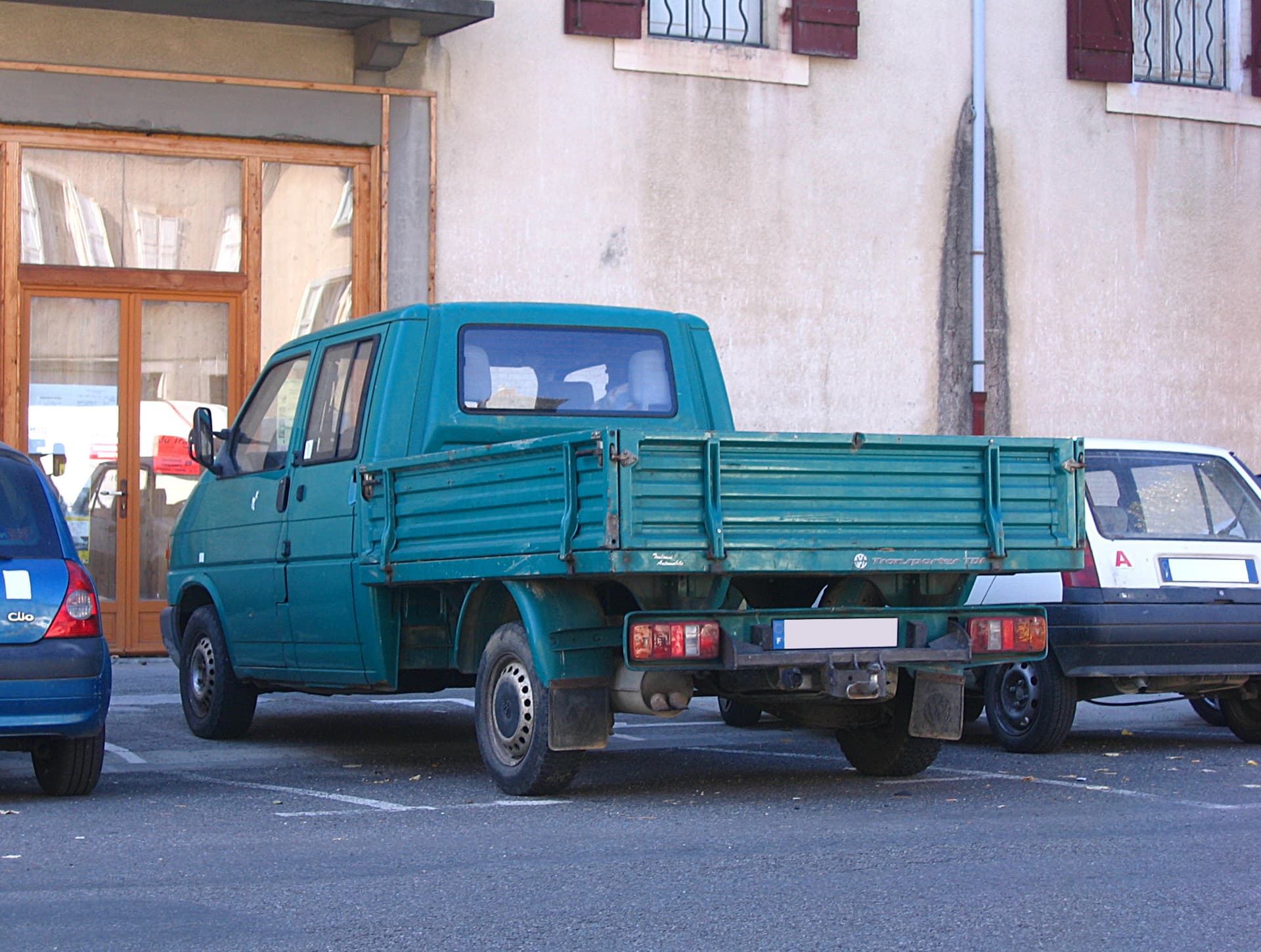

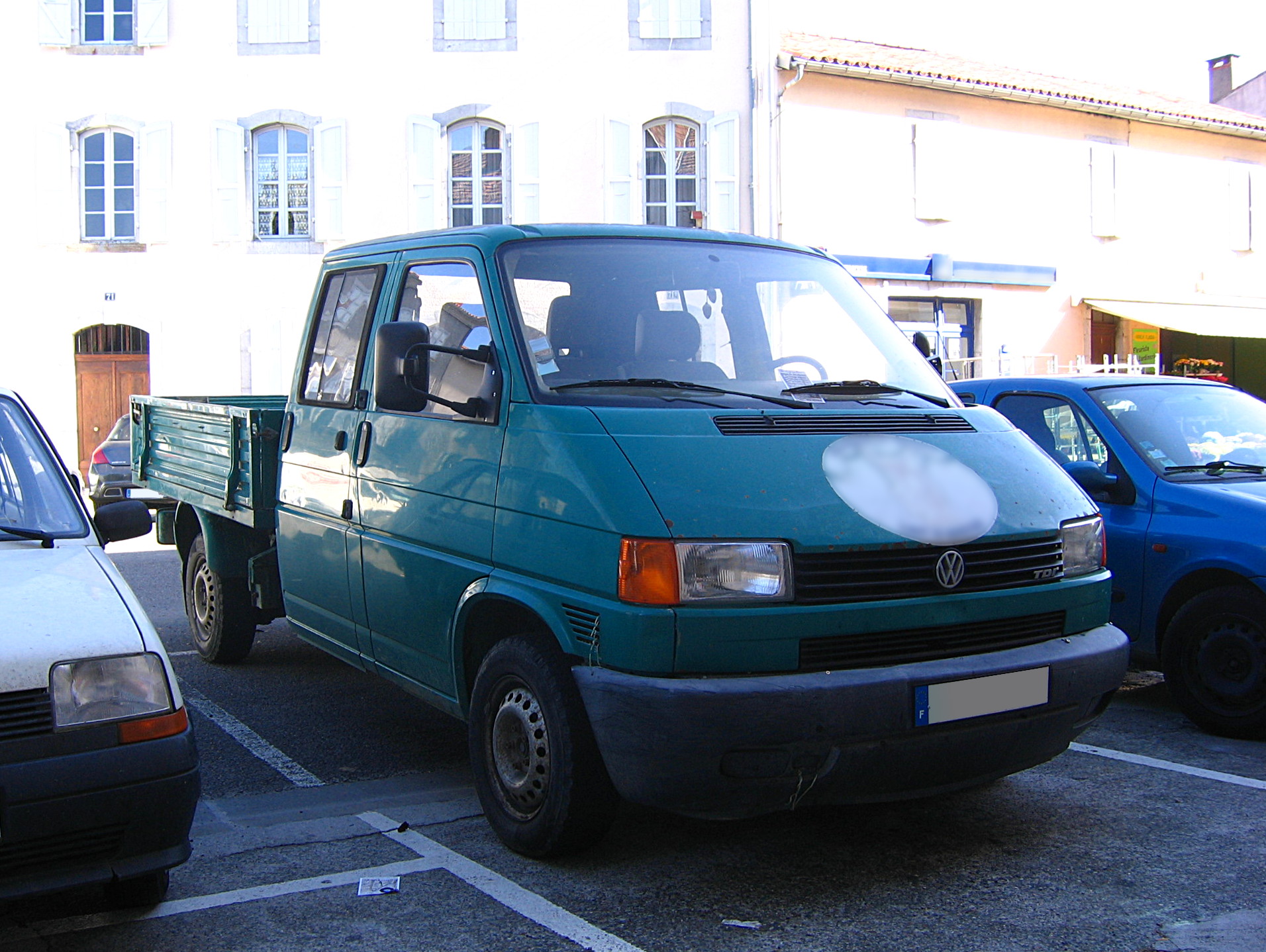

Volkswagen Transporter T4 Double Cab Pickup LWB

–––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: D LCV

• Body type: 4-door pickup

• Transmision: 5-speed automatic

• Drivetrain: FWD

• Length: 5107 mm

• Width: 1840 mm

• Height: 1940 mm

• Wheelbase: 3320 mm

• Front wheeltrack: 1589 mm

• Rear wheeltrack: 1554 mm

• Front overhang: 968 mm

• Rear overhang: 901 mm

• Ground clearance: 180 mm

• Steering system type: rack and pinion with hydraulic power assist

• Basic tire size: 195/70 R15

• Optional tire size: 205/65 R15

• Rim size: 6J x 15

• Front brake type: disc

• Rear brake type: disc

• Own weight: 1735 kg

• Number of seats: 5

• Euro NCAP test rating: 4/5

–––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: 2.5 TDI - whole TDI emblem is silver

• Produced: from 1995 to 2003

• Displacement: 2461 cm³

• Engine type: 4-stroke diesel

• Engine power: 102 hp (75 kW) at 3500 rpm

• Maximum torque: 250 Nm at 1900 - 2300 rpm

• Engine mounting: at the front, transverselly

• Location of the camshaft: SOHC

• Top-up: turbocharger, intercooler

• Number of cylinders: 5

• Cylinder arrangement: inline

• Number of valves: 10

• Compression ratio: 19.5:1

• Bore x stroke: 81 mm x 95.5 mm

• Injection type: direct

• Ignition type: compression

• Maximum speed: 157 km/h

• 0 - 100 km/h: 16 seconds

• Engine code: ACV

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

@JerryAxel why change “before facelift” to “pre-facelift”

[JerryAxel]

cos it didnt fit the whole text on what you typed

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

ok
