πŸ‡©πŸ‡ͺ Volkswagen Transporter T3 Doka Pickup before facelift (1979 - 1985)

Suggestions CC2 Vehicle Suggestions
, ,
1

Volkswagen Transporter T3 Doka Pickup

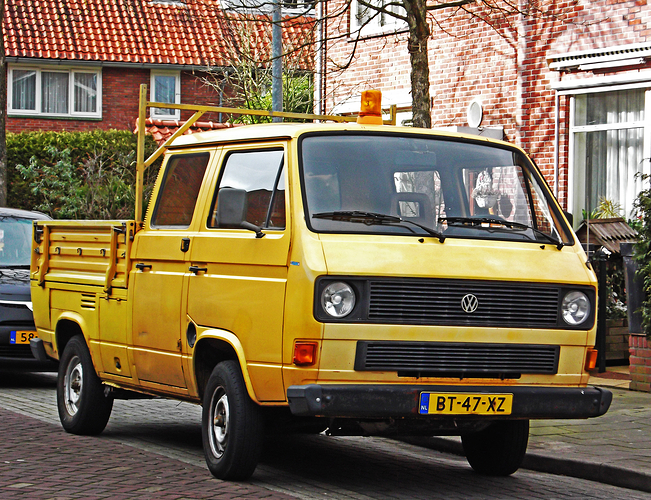

Volkswagen_Transporter_1.6_TD_(16527276268)
Volkswagen_Transporter_1.6_TD_(16527276268)1920Γ—1474 3.06 MB

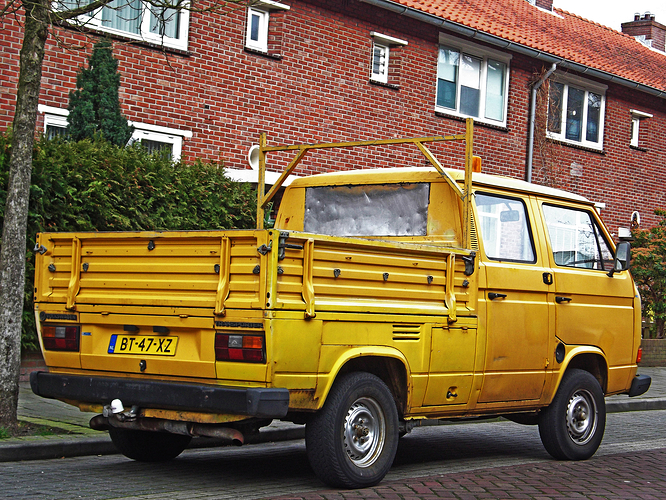

Volkswagen_Transporter_1.6_TD_(16507577167)
Volkswagen_Transporter_1.6_TD_(16507577167)1920Γ—1440 3.43 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: D LCV

  • Body type: 4-door Doka Pickup

  • Transmision: 4-speed automatic

  • Drivetrain: RWD

  • Length: 4570mm

  • Width: 1850mm

  • Height: 1925 mm

  • Wheelbase: 2461 mm

  • Front wheeltrack: 1585 mm

  • Rear wheeltrack: 1570 mm

  • Front overhang: 960 mm

  • Rear overhang: 990 mm

  • Ground clearance: 190 mm

  • Tire size: 185/80 R14C; 205/70 R14C

  • Rim size: 5.5J x 14; 6J x 14

  • Front brake type: disc

  • Rear brake type: drum

  • Front suspension type: independent, double wishbones, coil springs and telescopic twin-tube shock absorbers

  • Rear suspension type: independent, trailing arm, coil springs and vertically mounted telescopic shock absorbers mounted separately from the springs

  • Own weight: 1395 kg

  • Number of seats: 6

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.6 TD

  • Produced: from 1984 to 1992

  • Displacement: 1588 cmΒ³

  • Engine type: 4-stroke diesel

  • Cooling: water

  • Engine power: 70 hp (51 kW) at 4500 rpm

  • Maximum torque: 138 Nm at 2500 rpm

  • Engine mounting: in the back, longitudinally

  • Position of the camshaft: SOHC

  • Top-up: turbocharger

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 23.0:1

  • Bore x stroke: 76.5 mm Γ— 86.4 mm

  • Injection type: indirect

  • Ignition type: compression

  • Maximum speed: 127 km/h

  • 0 - 100 km/h: 27 seconds

  • Engine code: JX
