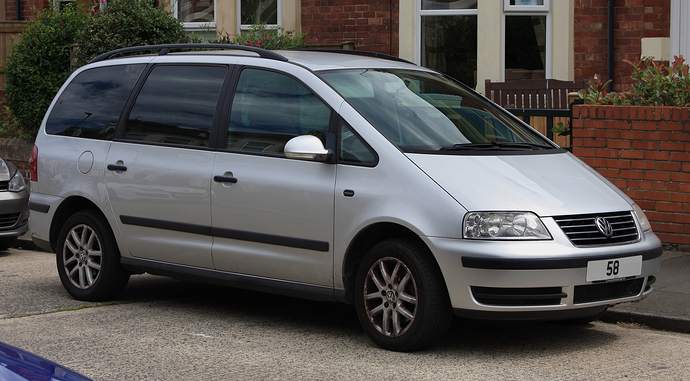

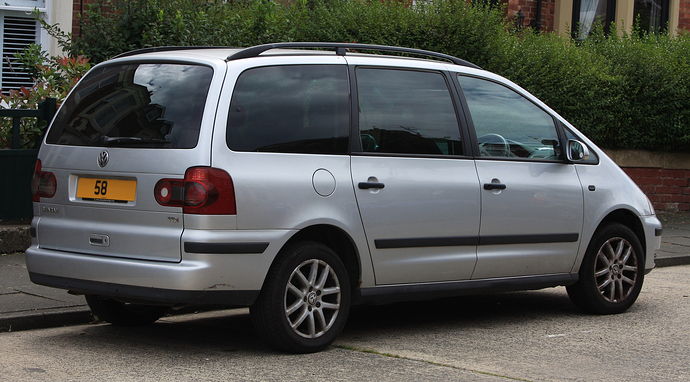

Volkswagen Sharan MK1 Comfortline
βββββββββββββββββββββββββββββββββββ
βΆοΈ 1. Main βοΈ
-
Class: D Minivan
-
Body type: 5-door minivan
-
Transmision: 5-speed automatic
-
Drivetrain: FWD
-
Gearbox type: Tiptronic
-
Turning diameter: 10.9 m
-
Turning radius: 5.5 m
-
Length: 4634 mm
-
Width: 1810 mm
-
Width with wing mirrors: 2142 mm
-
Height: 1759 mm
-
Height with roof rails: 1762 mm
-
Wheelbase: 2841 mm
-
Front wheeltrack: 1510 mm
-
Rear wheeltrack: 1505 mm
-
Front overhang: 875 mm
-
Rear overhang: 907 mm
-
Ground clearance: 113 mm
-
Approach angle: 14.0 Β°
-
Departure angle: 15.0 Β°
-
Steering system type: rack and pinion with hydraulic power assist
-
Basic tire size: 195/65 R15
-
Optional tire sizes: 195/60 R16; 205/55 R16; 205/60 R15; 225/45 R17; 235/40 R18
-
Rim sizes: 6J x 16; 7J x 16
-
Front brake type: Ventilated disc
-
Rear brake type: Disc
-
Front suspension type: Independent McPherson struts, anti-roll bar, and coil springs
-
Rear suspension type: Semi-independent with trailing arms, coil springs, and anti-roll bar
-
Shock absorbers type: Telescopic
-
Own weight: 1706 kg
-
Number of seats: 7
-
Euro NCAP test rating: 3/5
βββββββββββββββββββββββββββββββββββ
βΆοΈ 2. Engine βοΈ
-
Model: 1.9 TDI - I is red
-
Produced: from 2006 to 2010
-
Displacement: 1896 cmΒ³
-
Engine type: four-stroke diesel
-
Engine power: 115 HP (85 kW) at 4000 rpm
-
Maximum torque: 310 Nm at 1900 rpm
-
Engine mounting: at the front, transverselly
-
Top-up: turbocharger
-
Position of the camshaft: SOHC
-
Number of cylinders: 4
-
Cylinder arrangement: inline
-
Number of valves: 8
-
Compression ratio: 18.0 : 1
-
Bore x stroke: 79.5 Γ 95.5 mm
-
Injection type: direct
-
Ignition type: compression
-
Maximum speed: 181 km/h
-
0 - 100 km/h: 13.7 seconds
-
Engine code: AUY
