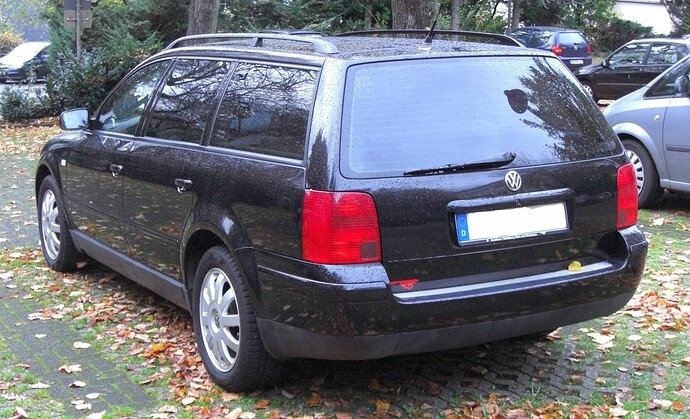

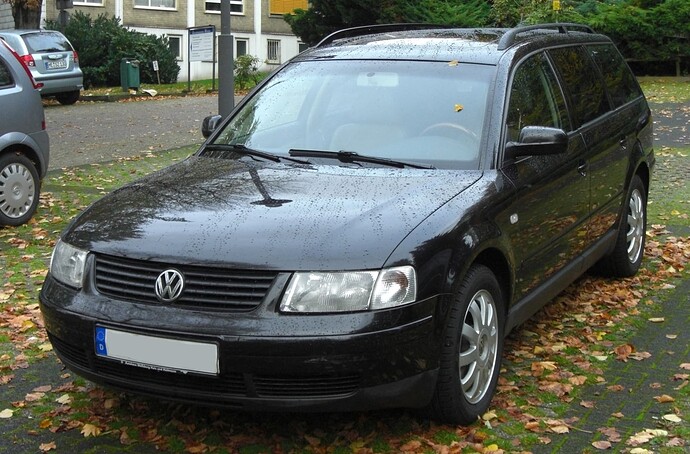

Volkswagen Passat B5 Variant
==============================================
▶️ 1. Main ◀️
-
Class:
D -
Body type:
5-door Wagon -
Transmision:
5-speed Automatic -
FWD
-
Length:
4675 mm -
Width:
1740 mm -
Width with side mirrors:
1912 mm -
Height:
1468 mm -
Wheelbase:
2705 mm -
Track width - front:
1515 mm -
Track width - rear:
1515 mm -
Clearance:
124 mm -
Distance of the front backrest from the engine compartment:
907 mm -
Distance from the front seat to the roof:
1011 mm -
Distance between front and rear seats:
653 mm -
Distance from rear seat to the roof:
1010 mm -
Type of steering:
rack and pinion transmission with hydraulic support -
Base tires:
195/65 R15 -
Optional tires:
205/65 R15 -
Basic rims:
6.00Jx15 -
Type of brakes (front):
ventilated discs -
Type of brakes (rear):
disc -
Type of suspension (front):
multi-link -
Type of suspension (rear):
Multilink architecture system -
Own weight:
1343 kg -
Number of seats:
5 -
Euro NCAP test:
3/5
==============================================
▶️ 2. Engine ◀️
-
Model:
1.9 TDI -
Produced:
from 1997 to 2000 -
Displacement:
1896 cm³ -
Engine type:
diesel -
Engine power:
110 hp (81 kW) at 4150 rpm -
Maximum Torque:
235 Nm at 1900 rpm -
Engine assembly:
at the front, longitudinally -
Top up:
turbocharger -
Location of the camshaft:
SOHC (OHC) -
Number of cylinders:
4 -
Cylinder arrangement:
inline -
Number of valves:
8 -
Compression ratio:
20.0:1 -
Bore × stroke:
79.5 × 95.5 mm -
Ignition:
automatic -
Injection type:
indirect -
Maximum speed:
190 km/h -
(0 - 100km/h):
11.9 seconds -
Engine code:
AFN
