πŸ‡©πŸ‡ͺ Volkswagen Jetta MK2 TX before facelift (1984 - 1987)

Suggestions CC2 Vehicle Suggestions
, ,
1

Volkswagen Jetta MK2 TX

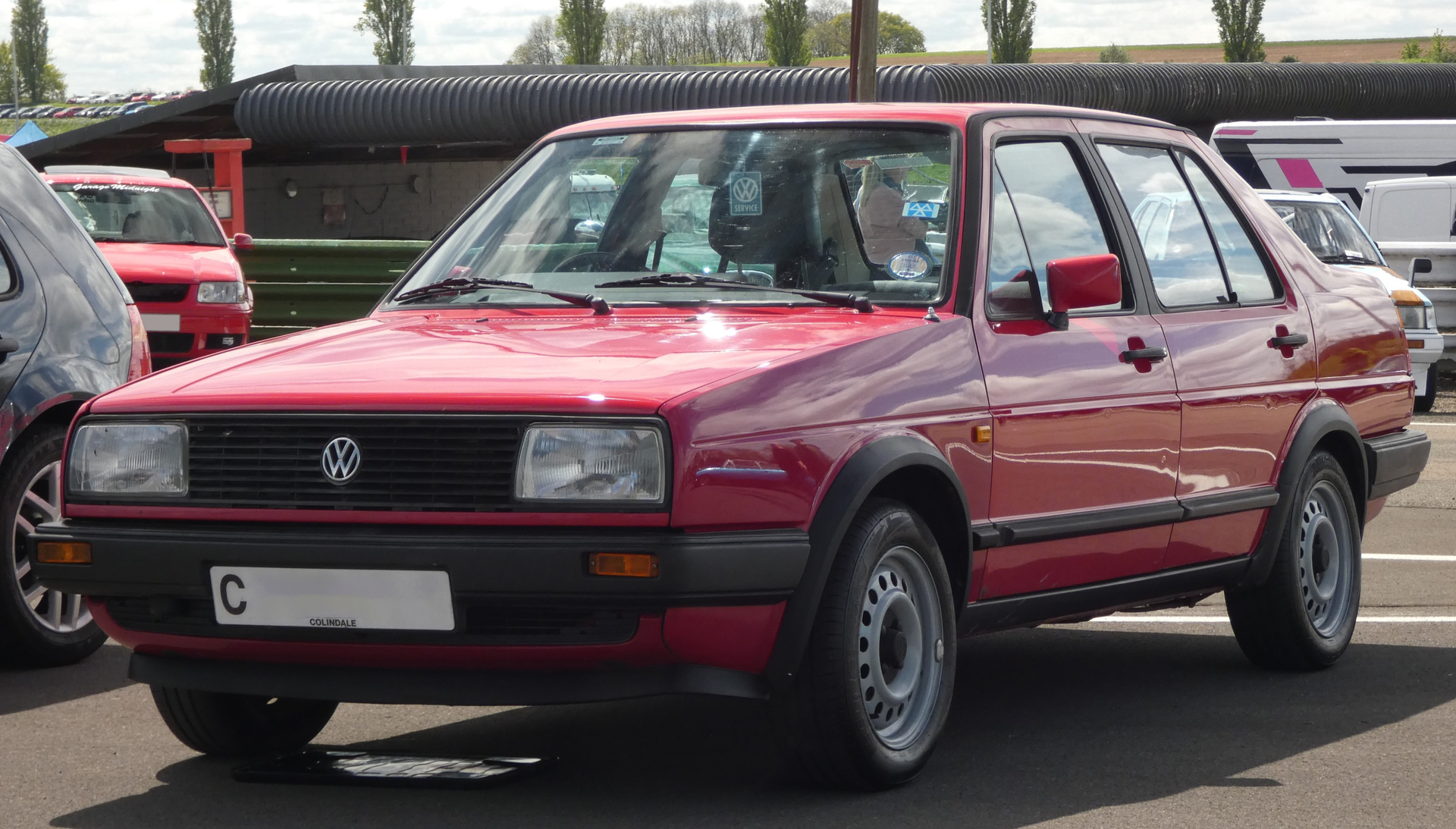

1986_Volkswagen_Jetta_TX_-1595cc_1.6(75PS)Petrol-Tornado_Red-_05-2024,_Front
1986_Volkswagen_Jetta_TX_-1595cc_1.6(75PS)Petrol-Tornado_Red-_05-2024,_Front1920Γ—1093 1.47 MB

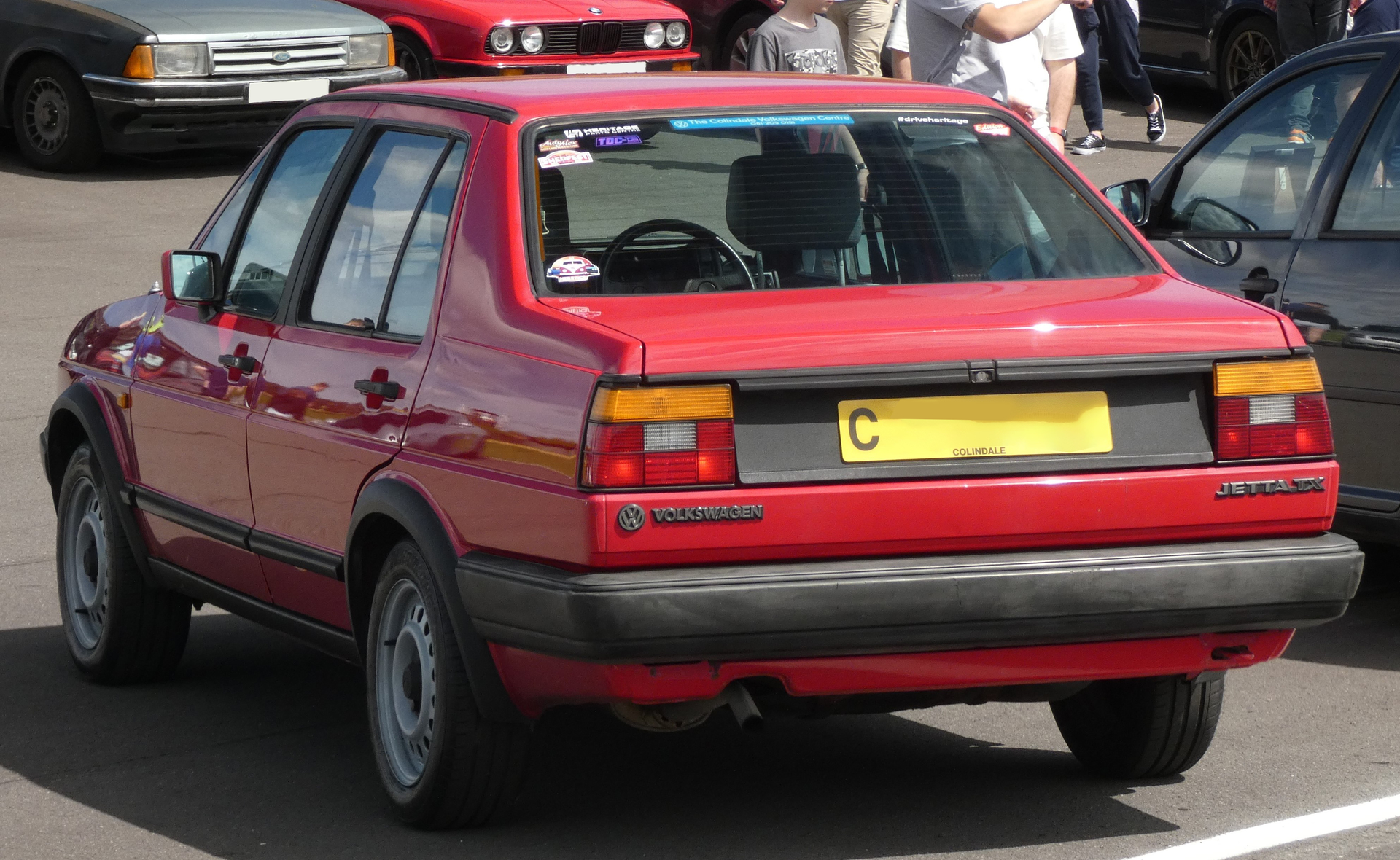

1986_Volkswagen_Jetta_TX_-1595cc_1.6(75PS)Petrol-Tornado_Red-_05-2024,_Rear
1986_Volkswagen_Jetta_TX_-1595cc_1.6(75PS)Petrol-Tornado_Red-_05-2024,_Rear1920Γ—1180 1.65 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: C

  • Body type: 4-door sedan

  • Transmision: 4-speed automatic

  • Drivetrain: FWD

  • Length: 4346 mm

  • Width: 1660 mm

  • Height: 1410 mm

  • Wheelbase: 2475 mm

  • Front wheeltrack: 1427 mm

  • Rear wheeltrack: 1422 mm

  • Ground clearance: 130 mm

  • Basic tire size: 155/80 R13

  • Optional tire sizes: 175/70 R13; 185/55 R15; 185/60 R14; 195/50 R15; 205/45 R16

  • Front brake type: disc

  • Rear brake type: drum

  • Front suspension type: independent, Macpherson struts

  • Rear suspension type: semi-independent, torsion beam

  • Own weight: 910 kg

  • Number of seats: 5

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.6

  • Produced: from 1983 to 1992

  • Displacement: 1595 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 75 HP (55 kW) at 5500 rpm

  • Maximum torque: 125 Nm at 2500 rpm

  • Engine mounting: at the front, transverselly

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 9.0 : 1

  • Bore Γ— stroke: 81 Γ— 77.4 mm

  • Injection type: Pierburg 2E2 carburetor

  • Ignition type: electronic

  • Maximum speed: 165 km/h

  • 0 - 100 km/h: 13.4 seconds

  • Engine code: EZ

7 Likes
2

I honestly prefer the Jetta’s 4th generation, another early-2000s sedan that I really like (Even tho I doubt that CC2 will add it someday, since they generally prefer race cars, hypercars & very large vehicles someday)

6 Likes
