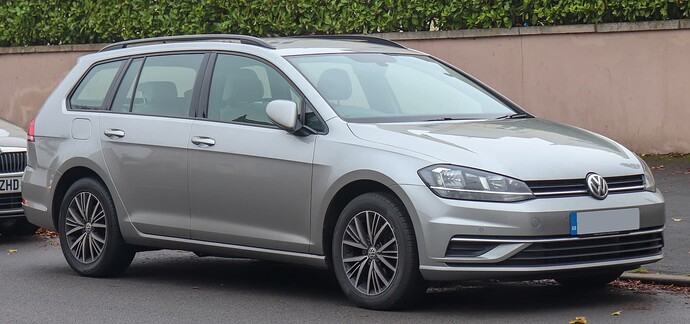

Volkswagen Golf MK7 Variant before facelift (2013 - 2017)

Volkswagen Golf MK7 Variant


==============================================

▶️ 1. Main ◀️

  • Class:
    C

  • Body type:
    5-door Wagon

  • Transmision:
    7-speed Automatic DSG

  • Drivetrain:
    FWD

  • Length:
    4562 mm

  • Width:
    1799 mm

  • Width with side mirrors:
    2027 mm

  • Height:
    1481 mm

  • Wheelbase:
    2635 mm

  • Track width - front:
    1549 mm

  • Track width - rear:
    1520 mm

  • Clearance:
    140 mm

  • Distance of the front backrest from the engine compartment:
    1046 mm

  • Distance from the front seat to the roof:
    981 mm

  • Distance between front and rear seats:
    903 mm

  • Distance from rear seat to the roof:
    980 mm

  • Width above armrests at the front:
    1469 mm

  • Width above the armrests in the back:
    1441 mm

  • Width at the height of the armrests at the front:
    1442 mm

  • Rake angle:
    13.0°

  • Ramp angle:
    9.9°

  • Departure Angle:
    12.4°

  • Basic tires:
    195/65 R15

  • Optional tires:
    205/50 R17; 205/55 R16; 225/40 R18; 225/45 R17; 235/35 R19

  • Type of brakes (front):
    ventilated discs

  • Type of brakes (rear):
    disc

  • Own weight:
    1205 - 1395 kg

  • Number of seats:
    5

  • Euro NCAP test:
    5/5

==============================================

▶️ 2. Engine ◀️

  • Model:
    1.6 TDI CR DPF BlueMotion Technology

  • Produced:
    from 2013 to 2017

  • Displacement:
    1598 cm³

  • Engine type:
    diesel

  • Engine power:
    105 hp (77 kW) at 3000 rpm

  • Maximum Torque:
    250 Nm at 1500 - 2750 rpm

  • Engine assembly:
    at the front, transversely

  • Top up:
    turbochargers

  • Location of the camshaft:
    DOHC

  • Number of cylinders:
    4

  • Cylinder arrangement:
    inline

  • Number of valves:
    16

  • Injection type:
    direct Common Rail

  • Ignition:
    automatic/self-acting idk

  • Maximum speed:
    193 km/h

  • (0 - 100km/h):
    11.2 seconds

  • Engine code:
    CLHA
