🇩🇪 Volkswagen Golf MK5 Variant (2007 - 2009)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

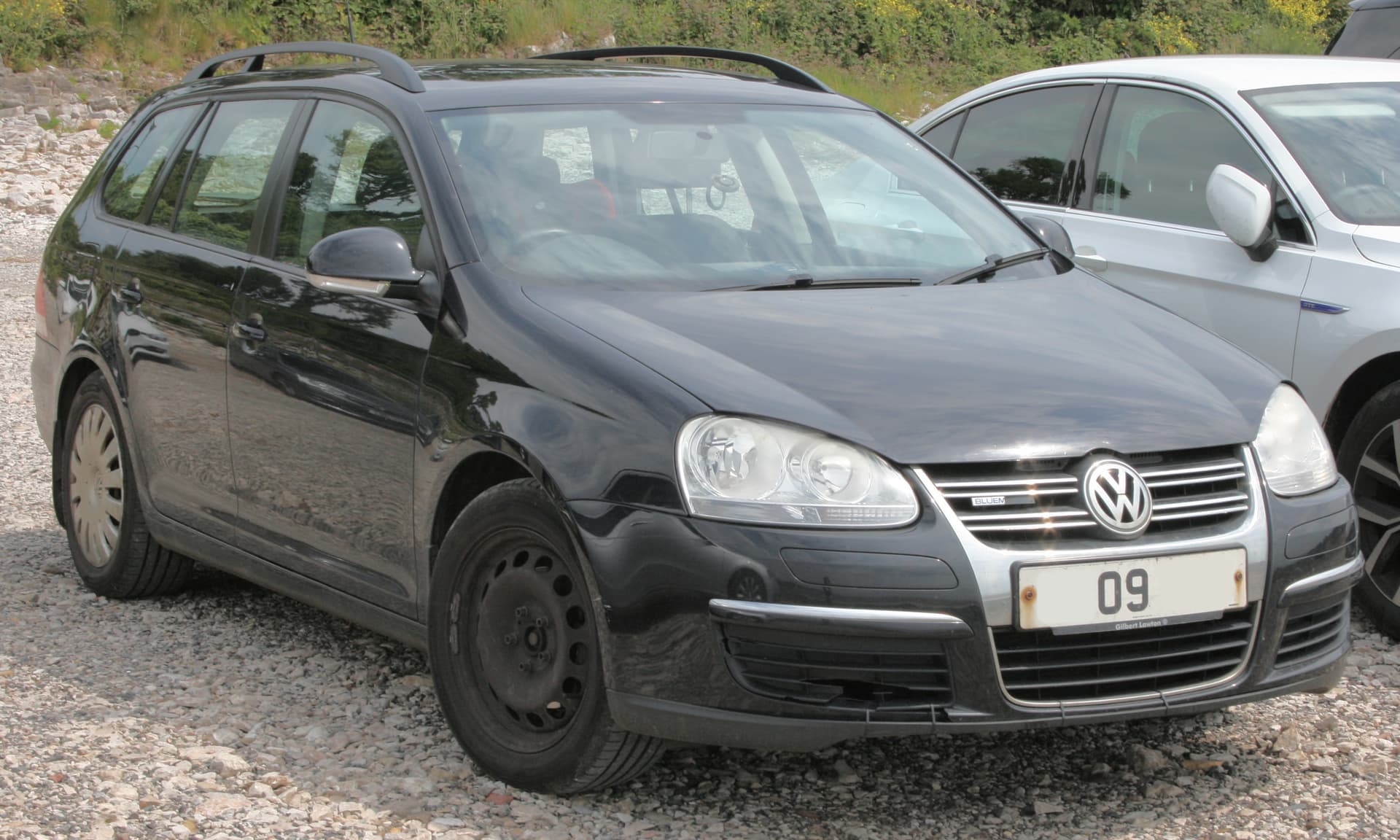

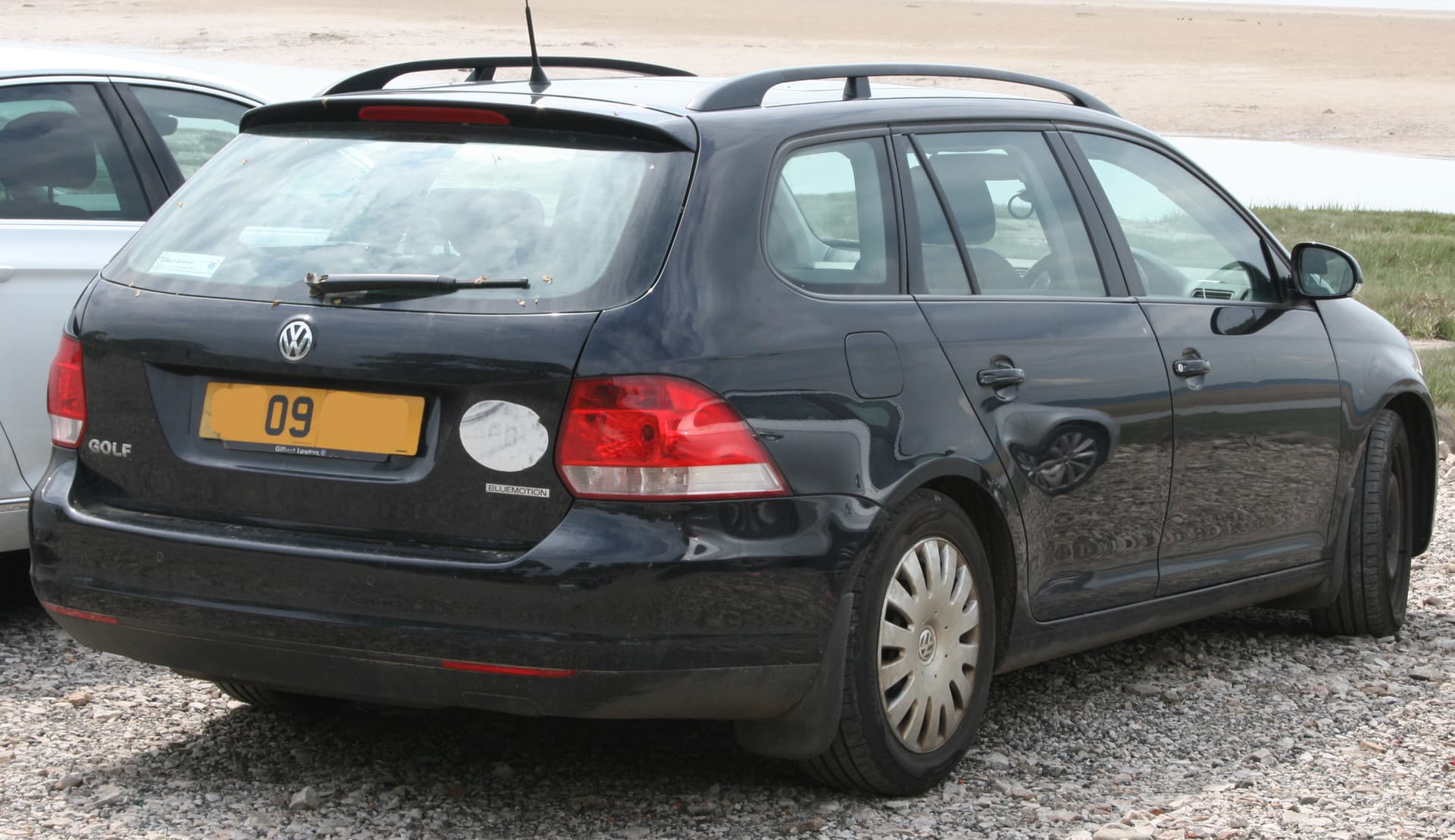

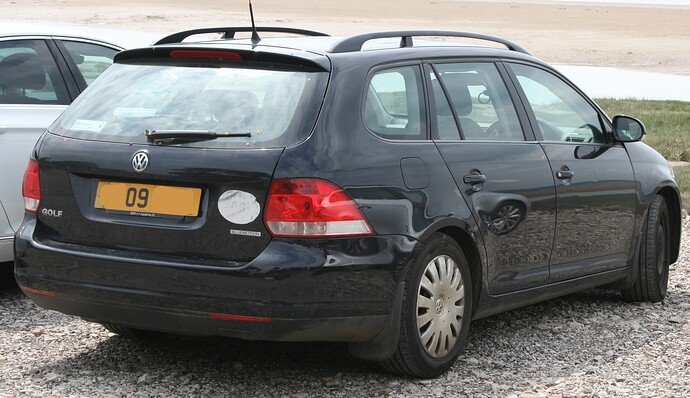

Volkswagen Golf MK5 Variant

–––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: C

• Body type: 5-door wagon

• Transmision: 5-speed automatic

• Drivetrain: FWD

• Turning diameter: 10.8 m

• Turning radius: 5.4 m

• Length: 4556 mm

• Width: 1781 mm

• Width with side mirrors: 2003 mm

• Height: 1504 mm

• Wheelbase: 2578 mm

• Front wheeltrack: 1535 mm

• Rear wheeltrack: 1508 mm

• Ground clearance: 146 mm

• Approach angle: 13.6 °

• Ramp angle: 8.8 °

• Departure angle: 11.9 °

• Tire size: 195/65 R15

• Front brake type: ventilated disc

• Rear brake type: disc

• Own weight: 1361 kg

• Number of places: 5

• Euro NCAP test rating: 5/5

–––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: 1.9 TDI Bluemotion

• Produced: from 2005 to 2008

• Displacement: 1896 cm³

• Engine type: 4-stroke diesel

• Engine power: 105 HP (77 kW) at 4000 rpm

• Maximum torque: 250 Nm at 1900 rpm

• Engine assembly: at the front, transverselly

• Top-up: turbocharger, intercooler

• Camshaft location: SOHC (OHC)

• Number of cylinders: 4

• Cylinder arrangement: inline

• Number of valves: 8

• Compression ratio: 19.0 : 1

• Bore × stroke: 79.5 mm × 95.5 mm

• Ignition: selfacting

• Injection type: direct

• Maximum speed: 190 km/h

• (0 - 100 km/h): 11.3 seconds

• Engine code: BXE
