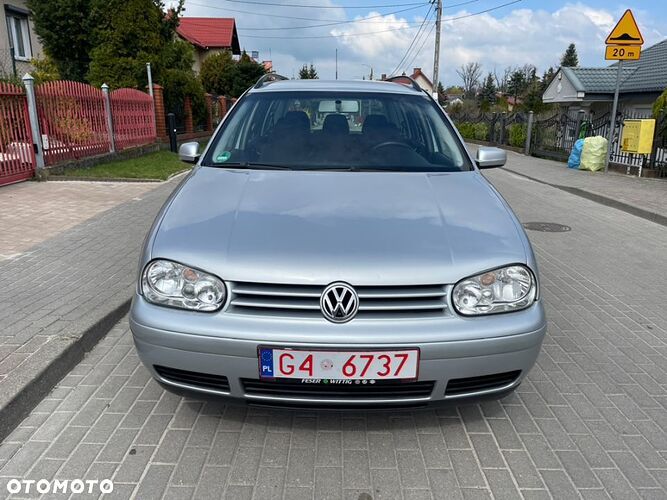

Volkswagen Golf MK4 Variant (1999 - 2006)

Volkswagen Golf MK4 Variant








––––––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

  • Class:
    C

  • Body type:
    5-door Wagon

  • Transmision:
    5-speed Automatic

  • Drivetrain:
    FWD

  • Length:
    4397 mm

  • Width:
    1735 mm

  • Height:
    1473 mm

  • Height with roof rails:
    1485 mm

  • Wheelbase:
    2515 mm

  • Track width - front:
    1513 mm

  • Track width - rear:
    1494 mm

  • Clearance:
    130 mm

  • Distance of the front backrest from the engine compartment:
    880 mm

  • Distance from the front seat to the roof:
    979 mm

  • Distance between front and rear seats:
    590 mm

  • Distance from rear seat to roof:
    964 mm

  • Base tires:
    195/65 R15

  • Basic rims:
    6J x 15

  • Type of brakes (front):
    ventilated discs

  • Type of brakes (rear):
    disc

  • Own weight:
    1321 kg

  • Number of seats:
    5

  • Euro NCAP test:
    4/5

––––––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

  • Model:
    1.9 TDI

  • Produced:
    from 2000 to 2006

  • Displacement:
    1896 cm³

  • Engine type:
    diesel

  • Engine power:
    100 hp (74 kW) at 4000 rpm

  • Maximum Torque:
    240 Nm at 1800 rpm

  • Engine assembly:
    at the front, transversely

  • Top up:
    turbochargers

  • Location of the camshaft:
    SOHC (OHC)

  • Number of cylinders:
    4

  • Cylinder arrangement:
    inline

  • Number of valves:
    8

  • Compression ratio:
    19.0:1

  • Bore × stroke:
    79.5 × 95.5 mm

  • Injection type:
    direct

  • Maximum speed:
    188 km/h

  • (0 - 100km/h):
    12.5 seconds

  • Engine code:
    ATD
