πŸ‡©πŸ‡ͺ Volkswagen Golf MK3 GL Hatchback (1991 - 1998)

Suggestions CC2 Vehicle Suggestions
, ,
1

Volkswagen Golf MK3 GL Hatchback

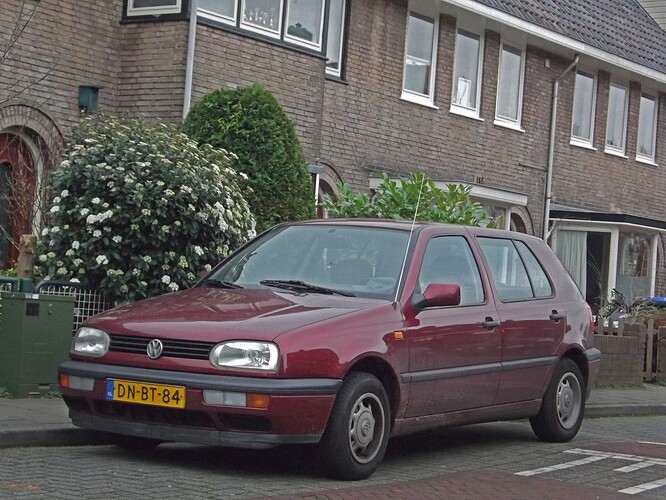

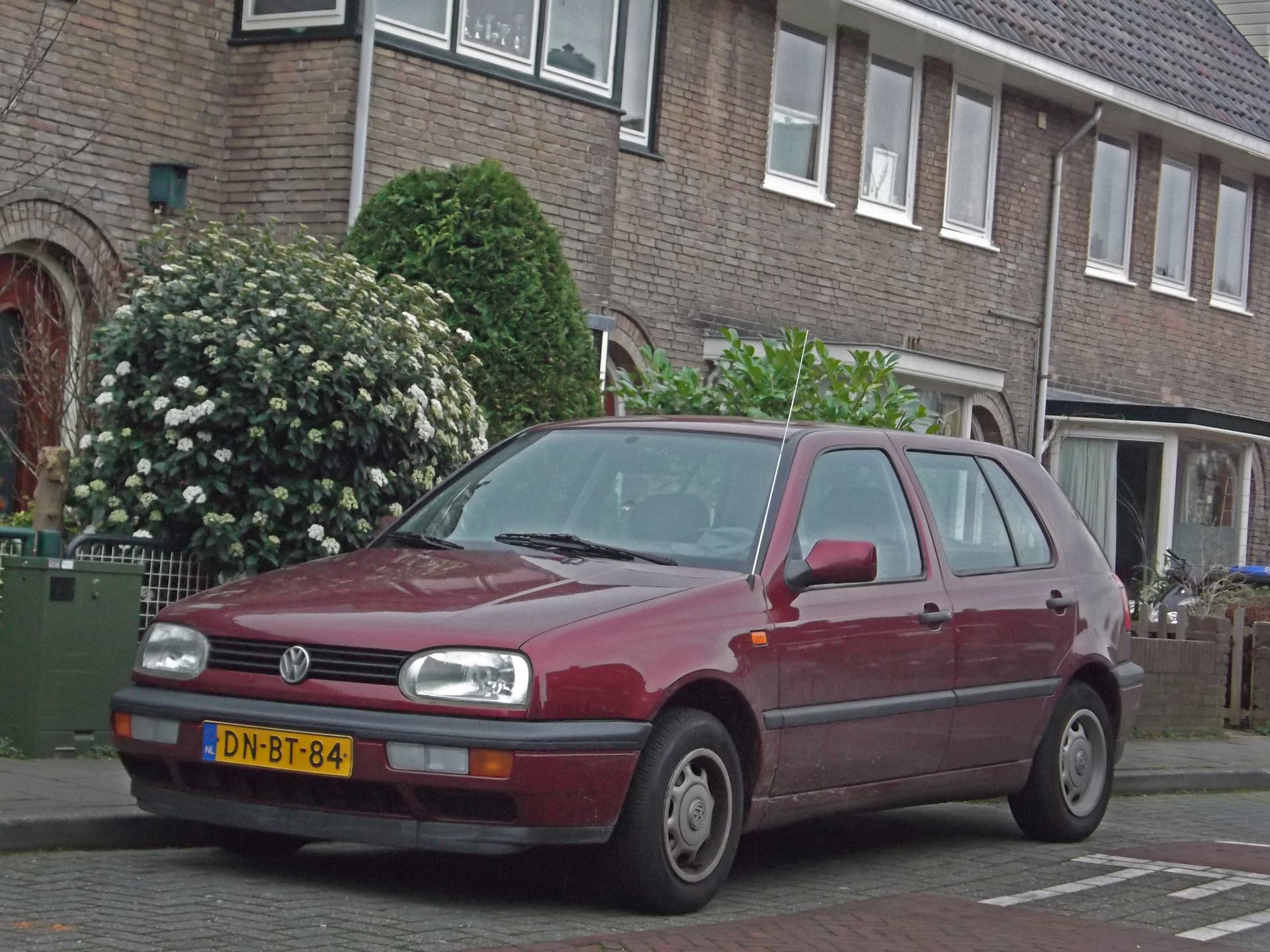

Volkswagen_Golf_1.8_GL_(12614535833)
Volkswagen_Golf_1.8_GL_(12614535833)1920Γ—1440 280 KB

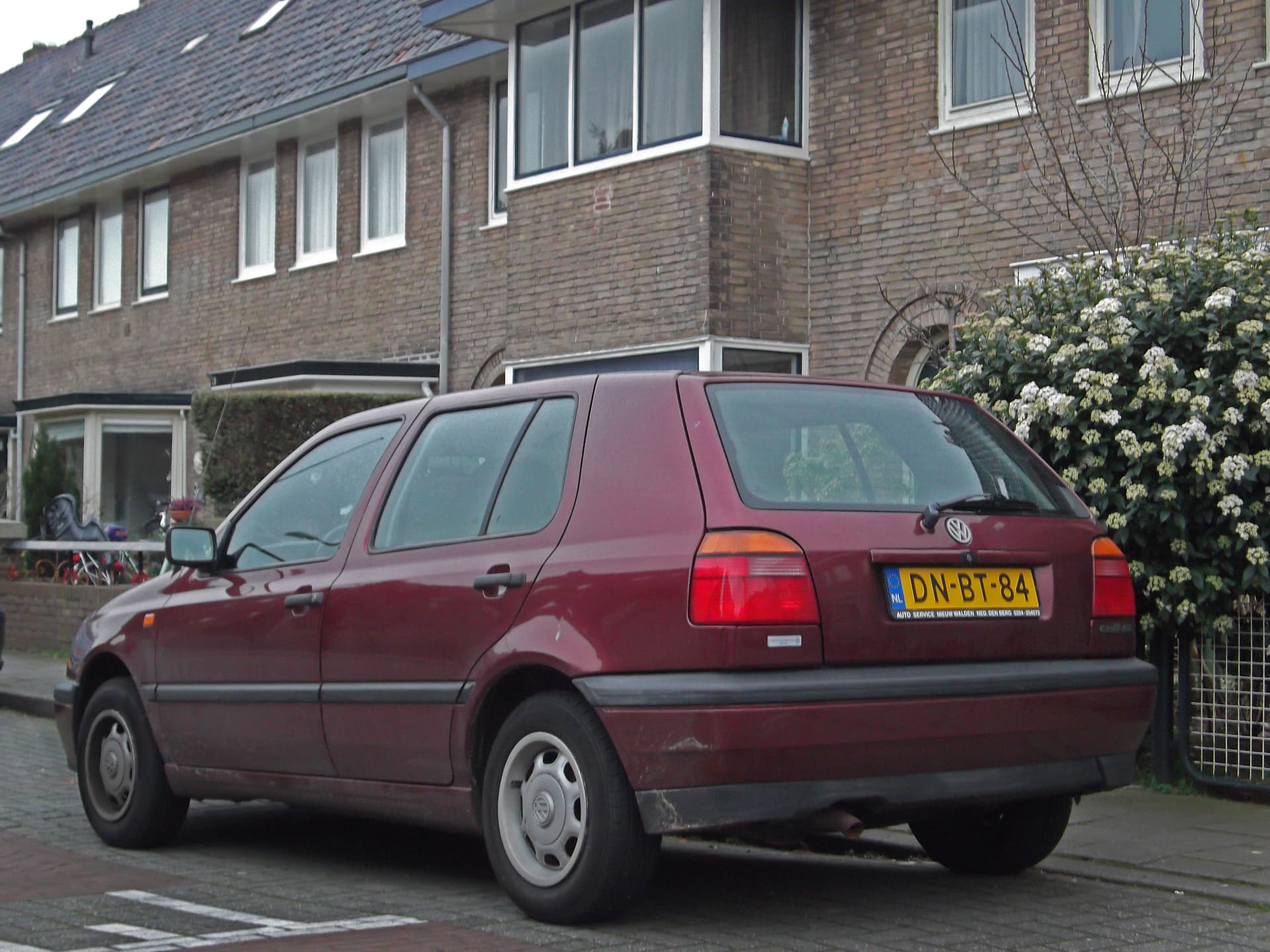

Volkswagen_Golf_1.8_GL_(12614428465)
Volkswagen_Golf_1.8_GL_(12614428465)1920Γ—1440 254 KB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: C

  • Body type: 5-door hatchback

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Turning diameter: 10.7 m

  • Turning radius: 5.3 m

  • Length: 4020 mm

  • Width: 1695 mm

  • Height: 1405 mm

  • Wheelbase: 2475 mm

  • Front wheeltrack: 1478 mm

  • Rear wheeltrack: 1448 mm

  • Steering type: Rack and pinion with hydraulic power steering

  • Basic tire size: 175/70 R13

  • Optional tire sizes: 185/60 R14; 195/50 R15; 205/40 R17; 205/45 R16

  • Front brake type: Disc

  • Rear brake type: Drum

  • Front suspension type: Independent MacPherson struts, stabilizer bar, coil springs

  • Rear suspension type: Semi-independent single wishbones, coaxial coil springs

  • Shock absorbers: Hydraulic telescopic

  • Own weight: 1035 kg

  • Number of seats: 5

  • Euro NCAP test rating: 4/5

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Model: 1.8

  • Produced: from 1991 to 1997

  • Displacement: 1781 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 75 HP (55 kW) at 5000 rpm

  • Maximum torque: 140 Nm at 2500 rpm

  • Engine assembly: at the front, transverselly

  • Camshaft location: SOHC (OHC)

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 9.0 : 1

  • Bore Γ— stroke: 81 mm Γ— 86.4 mm

  • Injection type: single-point (SPI, CPI)

  • Maximum speed: 168 km/h

  • 0 - 100 km/h: 14.0 seconds

  • Engine code: AAM

6 Likes
