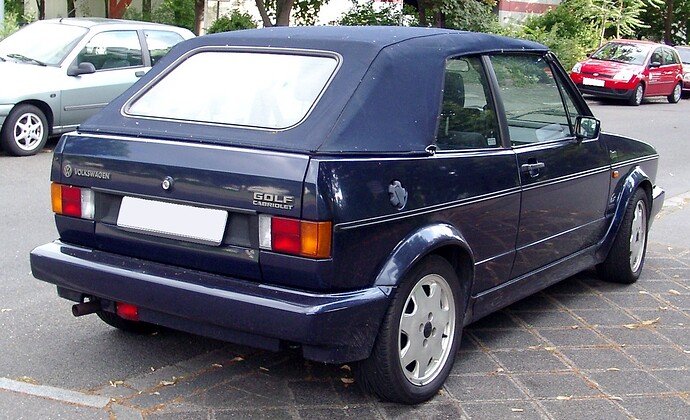

Volkswagen Golf MK1 Cabriolet (1979 - 1993)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

Volkswagen Golf MK1 Cabriolet

==============================================

1. Main

• Class:
  C

• Body type:
  2-door Cabriolet

• Transmision:
  5-speed Automatic

• FWD

• Length:
  3890 mm

• Width:
  1640 mm

• Height:
  1410 mm

• Wheelbase:
  2400 mm

• Track width - front:
  1404 mm

• Track width - rear:
  1372 mm

• Basic tires:
  175/70 R13

• Optional tires:
  175/65 R14; 185/55 R15; 185/60 R14

• Type of brakes (front):
  disc

• Type of brakes (rear):
  drum

• Own weight:
  790–973 kg

• Number of seats:
  4

==============================================

2. Engine

• Model:
  1.6

• Produced:
  from 1979 to 1994

• Displacement:
  1588 cm³

• Engine type:
  petrol

• Engine power:
  110 hp (81 kW) at 6100 rpm

• Maximum torque:
  140 Nm at 5000 rpm

• Engine assembly:
  at the front, transversely

• Location of the camshaft:
  SOHC (OHC)

• Number of cylinders:
  4

• Cylinder arrangement:
  inline

• Number of valves:
  8

• Compression ratio:
  10.0: 1

• Bore × piston stroke:
  79.5 × 80 mm

• Engine code:
  EG

• Maximum speed:
  172 km / h

• (0 - 100km / h):
  10.2 s
