πŸ‡―πŸ‡΅ Toyota Corolla MK6 E90 XL Hatchback (1987 - 1992)

Suggestions CC2 Vehicle Suggestions
, ,
1

Toyota Corolla MK6 E90 XL Hatchback

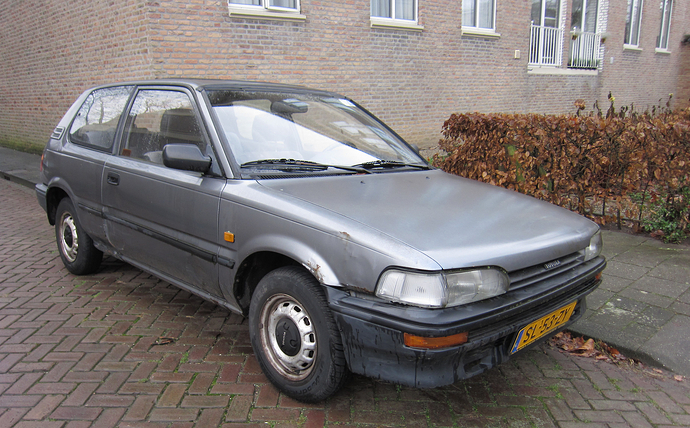

1987_Toyota_Corolla_1.3_XL_front
1987_Toyota_Corolla_1.3_XL_front1920Γ—1193 1.99 MB

1987_Toyota_Corolla_1.3_XL_rear
1987_Toyota_Corolla_1.3_XL_rear1920Γ—1273 2.03 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: C

  • Body type: 3-door hatchback

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Length: 3995 mm

  • Width: 1666 mm

  • Height: 1365 mm

  • Wheelbase: 2431 mm

  • Front wheeltrack: 1460 mm

  • Rear wheeltrack: 1450 mm

  • Basic tire size: 155/80 R13

  • Optional tire sizes: 165/80 R13; 175/70 R13; 185/60 R14; 185/70 R13; 195/50 R15

  • Front brake type: disc

  • Rear brake type: drum

  • Front suspension type: independent with McPherson struts, transverse wishbones, and stabilizer bar

  • Rear suspension type: independent with coil springs

  • Own weight: 915 kg

  • Number of seats: 5

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.3

  • Produced: from 1987 to 1990

  • Displacement: 1295 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 75 HP (55 kW) at 6200 rpm

  • Maximum torque: 103 Nm at 3600 rpm

  • Engine mounting: at the front, transverselly

  • Position of the camshaft : SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 12

  • Compression ratio: 9.5:1

  • Bore x stroke: 73 mm x 77.4 mm

  • Injection type: Aisan 21100 carburetor

  • Ignition type: mechanical-electronic

  • Maximum speed: 160 km/h

  • 0 - 100 km/h: 11.7 seconds

  • Engine code: 2E
