🇨🇿 Škoda Fabia MK1 Sport Wagon after facelift (2004 - 2008)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

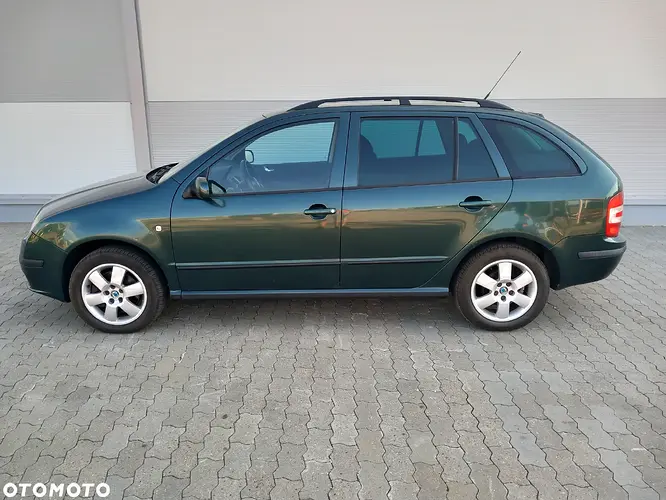

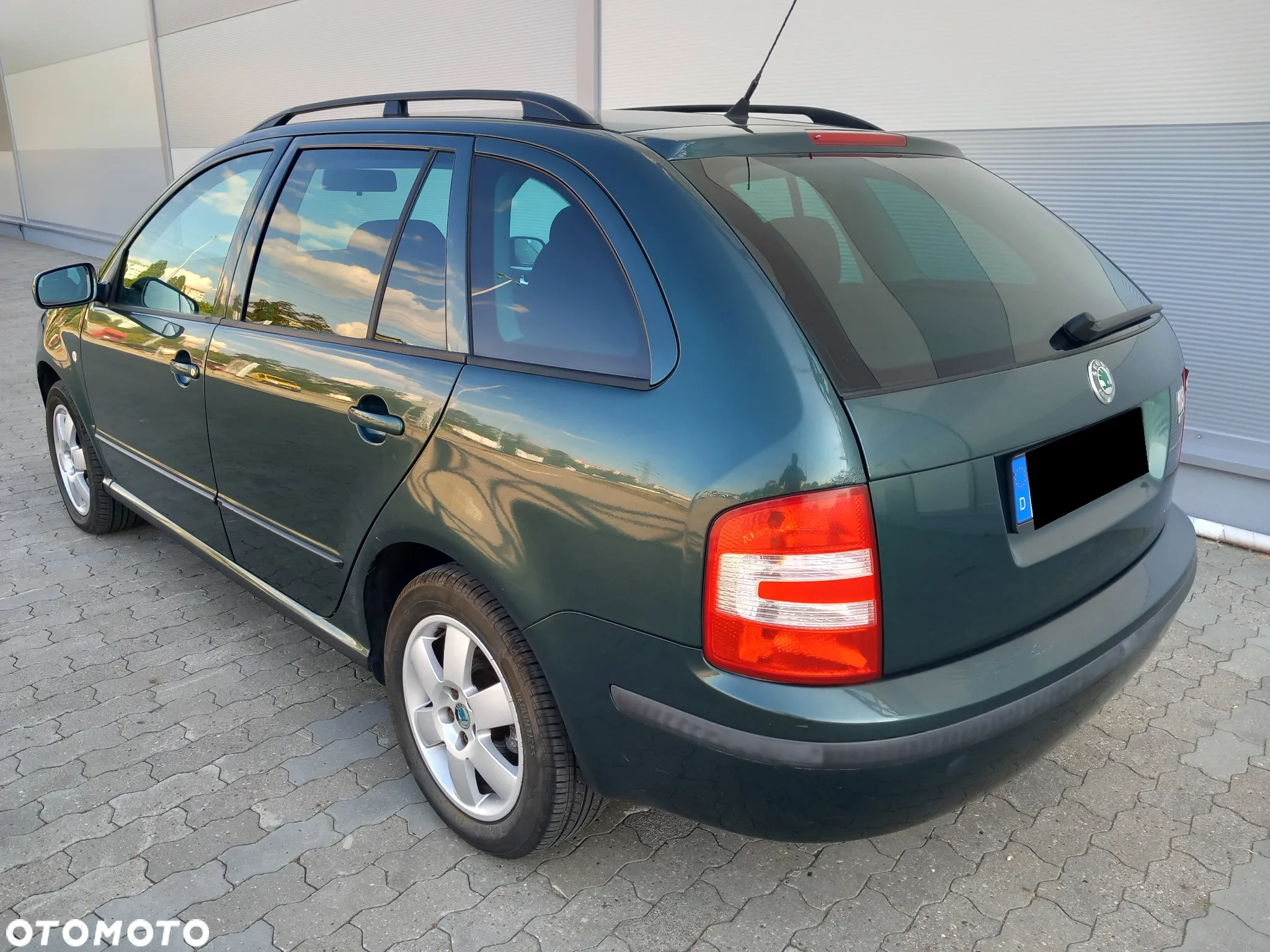

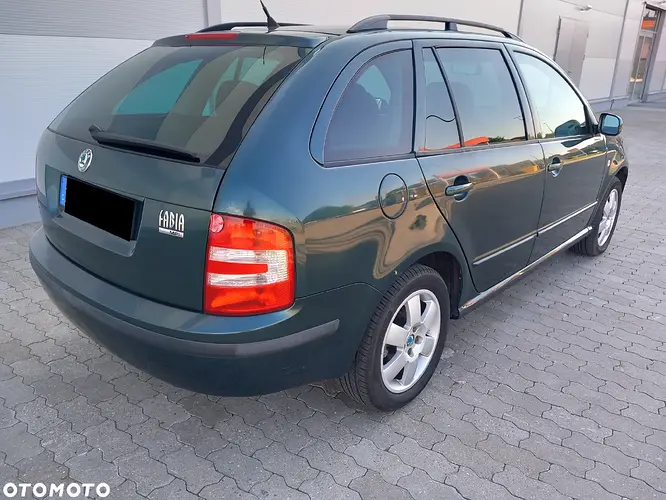

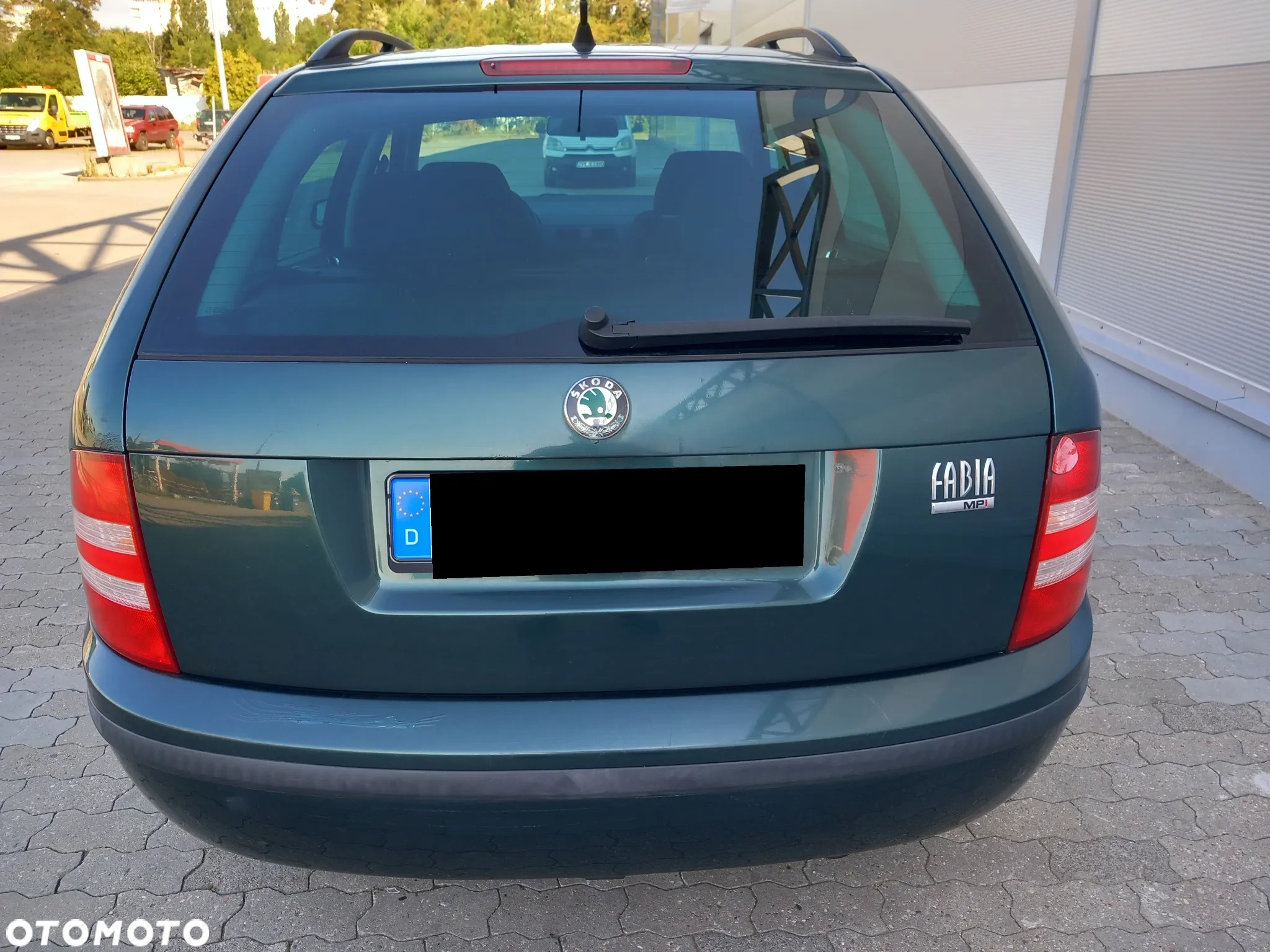

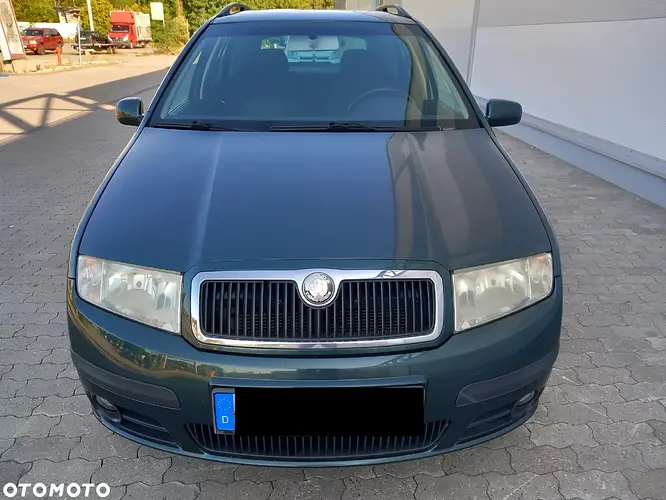

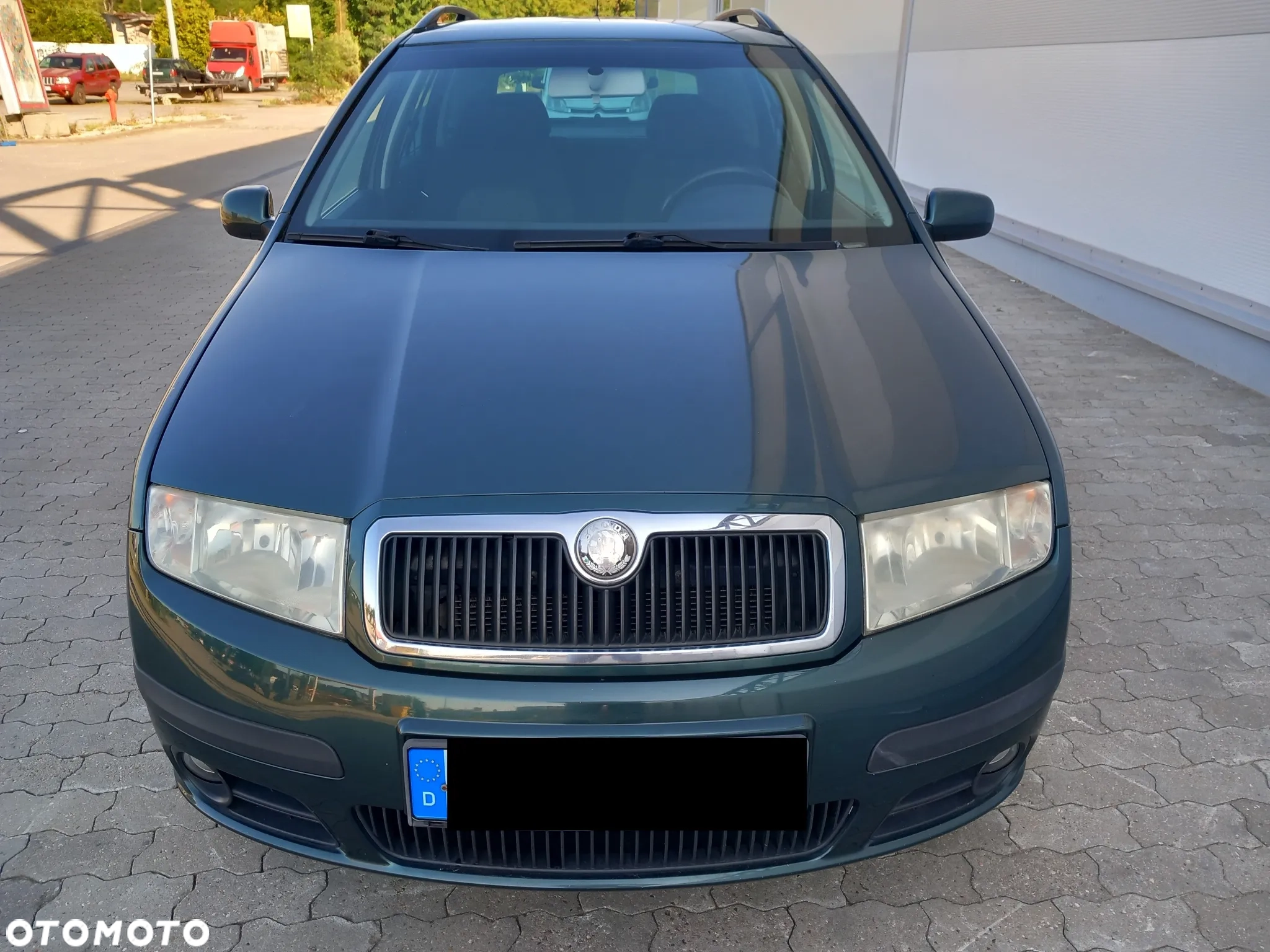

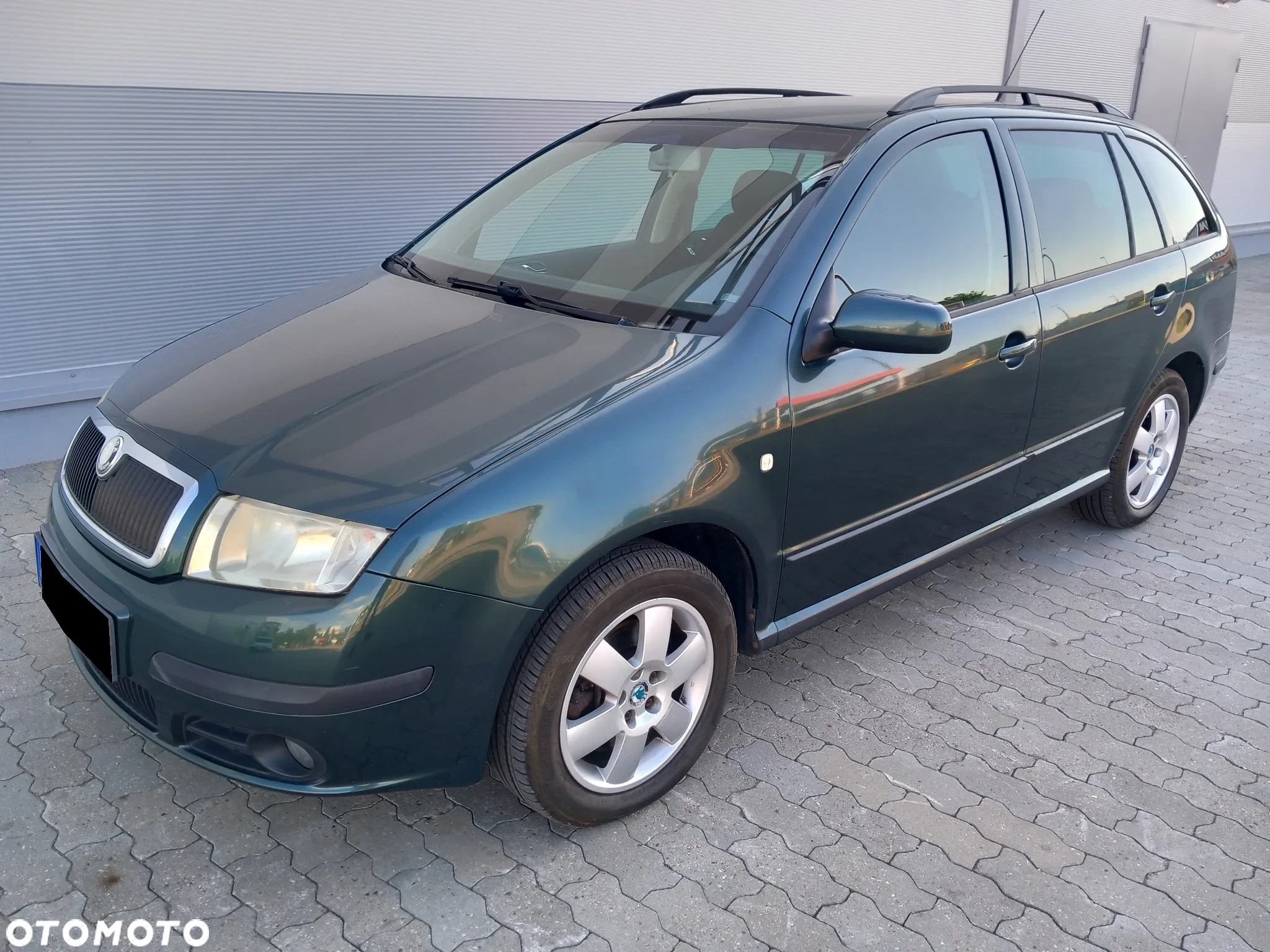

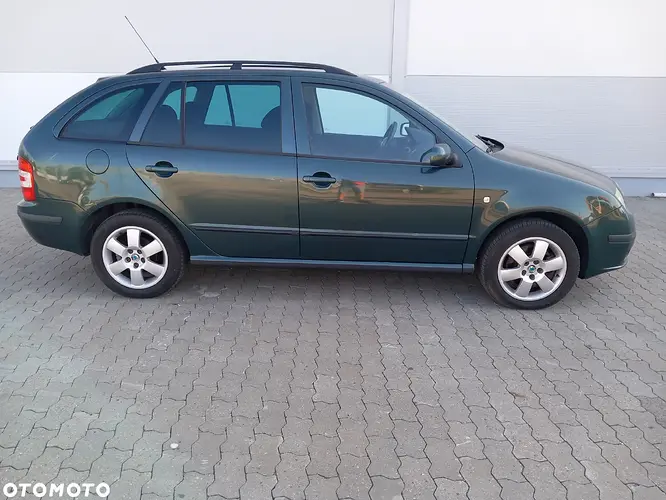

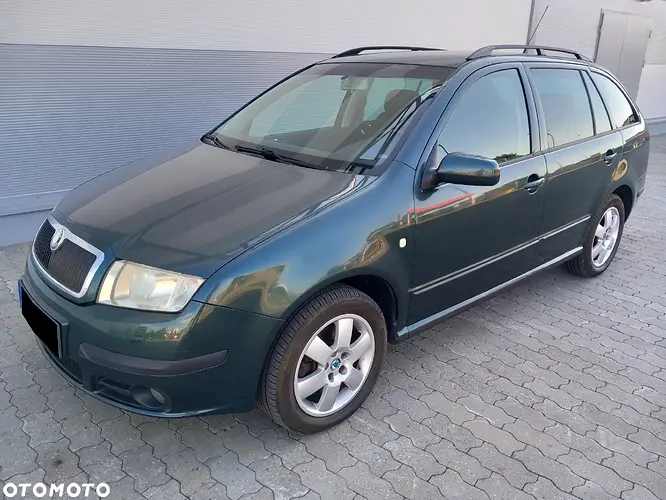

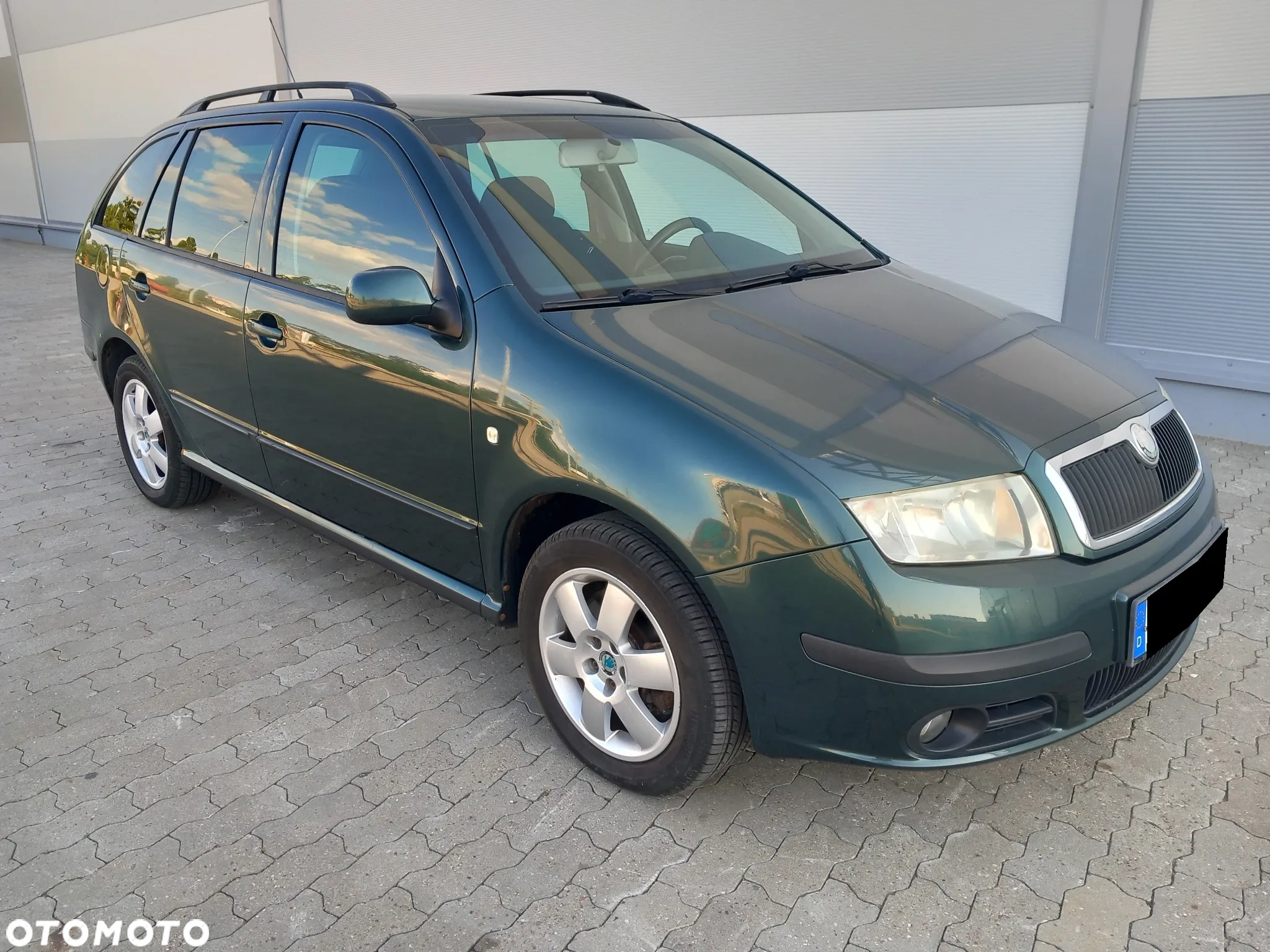

Škoda Fabia MK1 Sport Wagon

––––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: B

• Body type: 5-door wagon

• Transmision: 5-speed automatic

• Drivetrain: FWD

• Turning diameter: 10.4 m

• Length: 4232 mm

• Width: 1646 mm

• Width with side mirrors: 1890 mm

• Height: 1452 mm

• Height with roof rails: 1550 mm

• Wheelbase: 2462 mm

• Front wheeltrack: 1435 mm

• Rear wheeltrack: 1424 mm

• Front overhang: 837 mm

• Rear overhang: 933 mm

• Ground clearance: 120 mm

• Approach angle: 16°

• Departure angle: 16°

• Steering system type: rack and pinion with electric power assist

• Basic tire size: 195/50 R15

• Optional tire sizes: 195/45 R16; 205/45 R16

• Rim size: 6J

• Front brake type: Ventilated disc

• Rear brake type: Disc

• Front suspension type: Independent, McPherson struts

• Rear suspension type: Semi-independent, torsion beam

• Own weight: 1145 kg

• Number of seats: 5

• Euro NCAP test rating: 4/5

––––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: 2.0

• Produced: from 2000 to 2007

• Displacement: 1984 cm³

• Engine type: 4-stroke petrol

• Engine power: 115 HP (85 kW) at 5400 rpm

• Maximum torque: 170 Nm at 2400 rpm

• Engine mounting: at the front, transverselly

• Position of the camshaft: SOHC

• Number of cylinders: 4

• Cylinder arrangement: inline

• Number of valves: 8

• Compression ratio: 10.5 : 1

• Bore × stroke: 82.5 mm × 92.8 mm

• Ignition type: spark

• Injection type: multipoint

• Maximum speed: 197 km/h

• 0 - 100 km/h: 10.2 seconds

• Engine code: AZL
