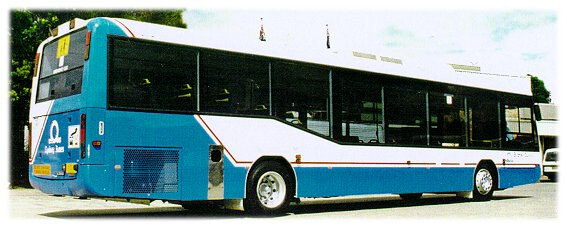

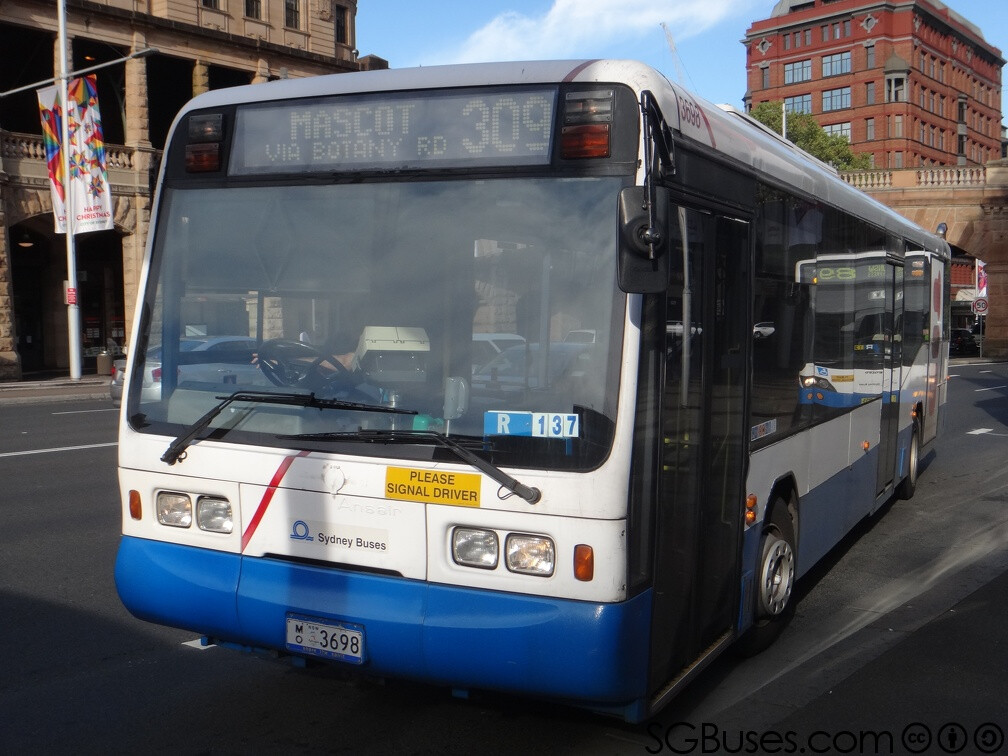

Scania L113CRL





Dimensions

  • Length: 12355 mm
  • Width: 2500 mm
  • Height: 3287 mm
  • Weight Front: 3500 kg
  • Weight Rear: 7540 kg

Mobility

  • Engine Model: DSC 11-71
  • No. Cylinders: 6
  • Compression Ratio: 16:1
  • Bore: 127 mm
  • Stroke:145 mm
  • Max kW (DIN): @172/1900 RPM
  • Max Torque (Nm): @1030/1200 RPM
  • Max Gov. Speed: 2200 RPM
  • Gearbox: 30
  • Transmission Type: ZF-4HP500
    • 1st Ratio/Roadspeed: 3.43/28
    • 2nd Ratio/Roadspeed: 2.01/48
    • 3rd Ratio/Roadspeed: 1.42/67
    • 4th Ratio/Roadspeed: 1.00/96
    • Reverse Ratio: 4.84:1
    • Final Drive Ratio: 3.80:1
  • Top Speed: 80 km/h

Other

  • Engine location: Rear Underfloor
  • Rear Axle Type: Spiral Bev Single Red
  • Token: 0
  • Tier: 2
