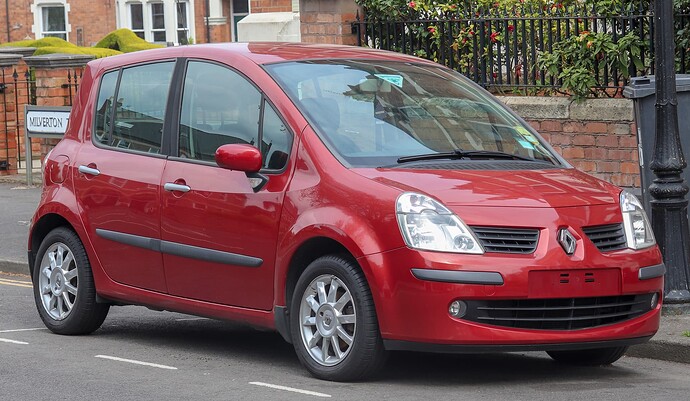

Renault Modus Minivan
––––––––––––––––––––––––––––––––––––––
▶️ 1. Main ◀️
-
Class:
B Minivan -
Body type:
5-door Minivan -
Transmision:
5-speed Automatic -
Drivetrain:
FWD -
Length:
3792 mm -
Width:
1695 mm -
Width with side mirrors:
1960 mm -
Height:
1589 mm -
Wheelbase:
2482 mm -
Track width - front:
1471 mm -
Track width - rear:
1450 mm -
Front overhang:
771 mm -
Rear overhang:
539 mm -
Clearance:
120 mm -
Distance from the front seat to the roof:
1031 mm -
Distance from rear seat to the roof:
982 mm -
Width above armrests at the front:
1384 mm -
Width above the armrests at the back:
1385 mm -
Width at the height of the armrests at the front:
1365 mm -
Width at the height of the armrests at the back:
1345 mm -
Overall cabin interior length:
1968 mm -
Type of steering:
rack and pinion gear with electric assistance -
Basic tires:
185/60 R15 -
Type of brakes (front):
ventilated discs -
Type of brakes (rear):
drum -
Own weight:
from 1155 kg -
Number of seats:
5 -
Euro NCAP test:
5/5
––––––––––––––––––––––––––––––––––––––
▶️ 2. Engine ◀️
-
Model:
1.5 dCi -
Produced:
from 2005 to 2012 -
Displacement:
1461 cm³ -
Engine type:
diesel -
Engine power:
85 hp (63 kW) at 4000 rpm -
Maximum Torque:
200 Nm at 1900 rpm -
Engine assembly:
at the front, transversely -
Top up:
turbochargers -
Location of the camshaft:
SOHC (OHC) -
Number of cylinders:
4 -
Cylinder arrangement:
inline -
Number of valves:
8 -
Compression ratio:
17.9:1 -
Bore x stroke:
76 mm × 80,5 mm -
Injection type:
direct Common Rail -
Maximum speed:
171 km/h -
(0 - 100km/h):
13.4 seconds
