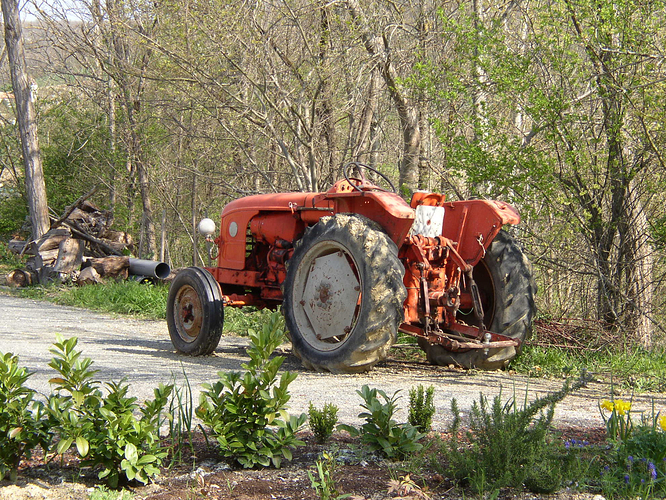

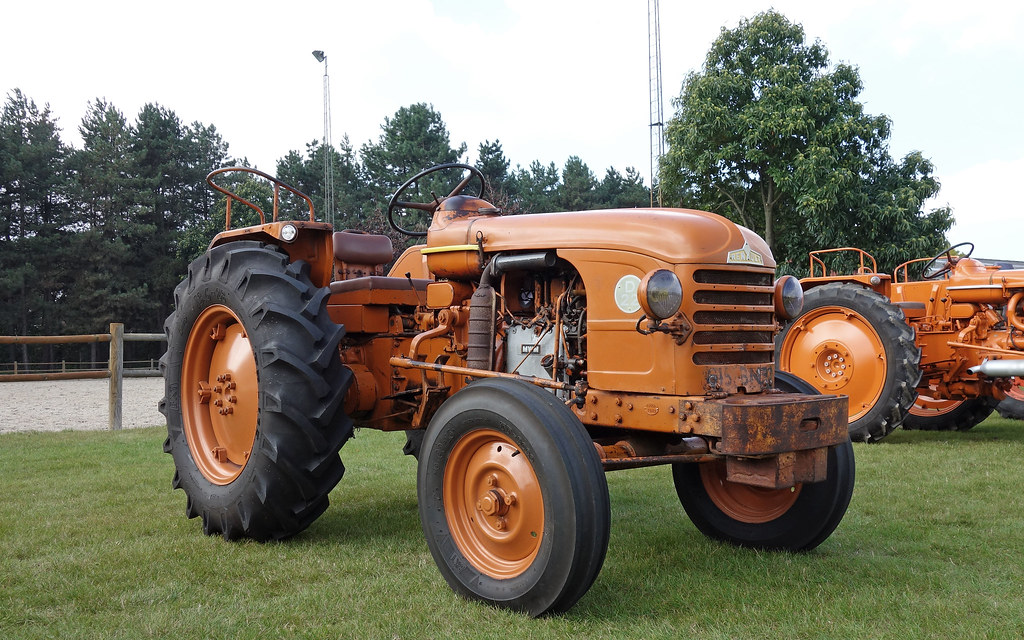

Renault D22 1956
Engine and Transmission
Fuel Diesel
Engine(s) MWM AKD 112 Z (L2)
Engine Position Front longitudinal
Displacement 1,810 cm3
Maximum Power 22 hp DIN (16 kW)
Transmission 2-wheel drive (rear)
Gearbox Manual with 6 to 12 forward gears
Manual with 1 to 2 reverse gears
Weight and Performance
Unladen Weight 1,650 kg
Maximum Speed 20.9 km/h
Chassis - Body
Body Type Open cabin tractor
Brakes Mechanical drum cable (rear)
Standard Tires 10x28 or 11x28 (rear)
Dimensions
Length 3,000 mm
Width 1,170 to 2,110 mm
Height 1,540 mm
Wheelbase 1,723 mm
