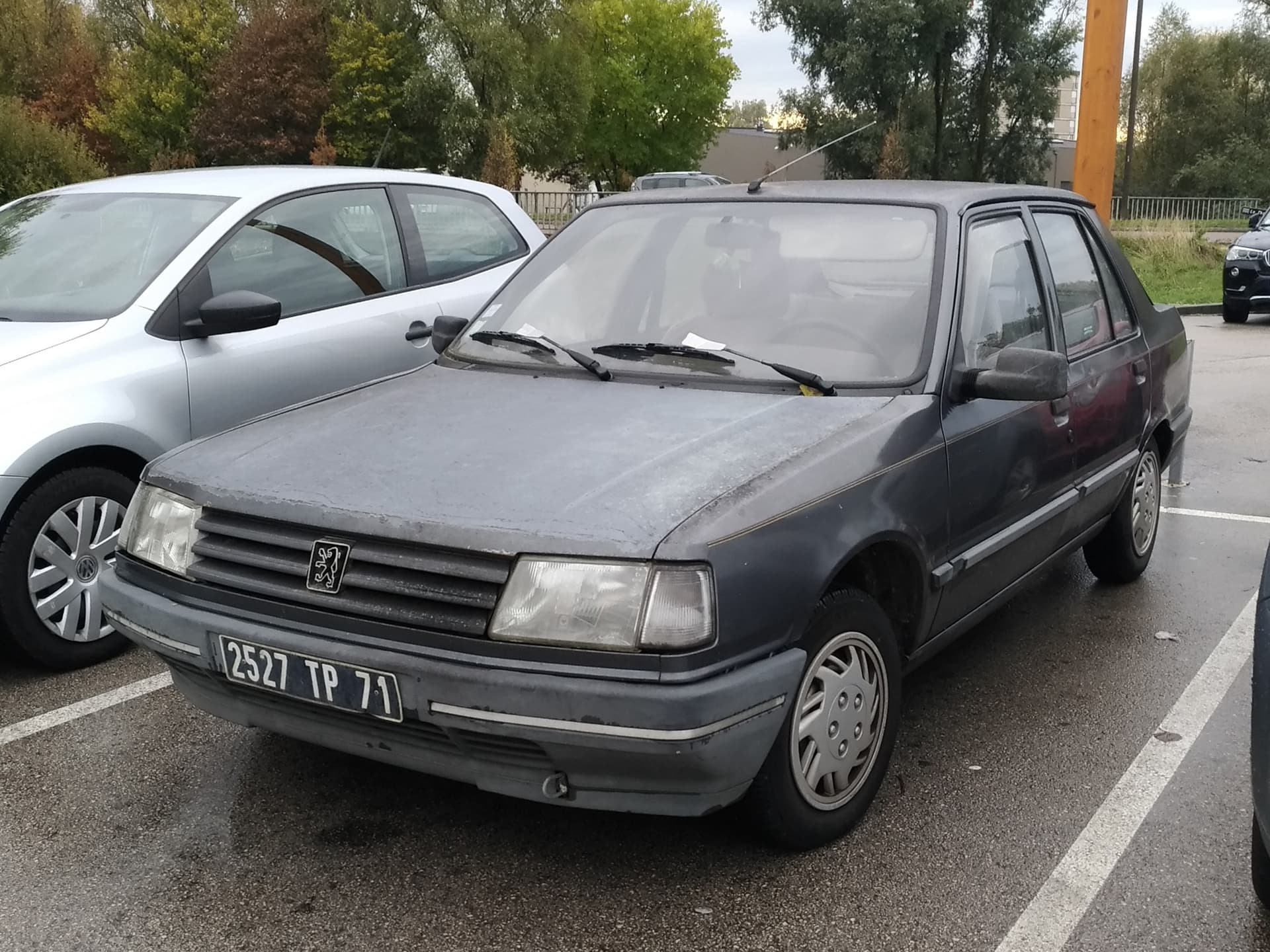

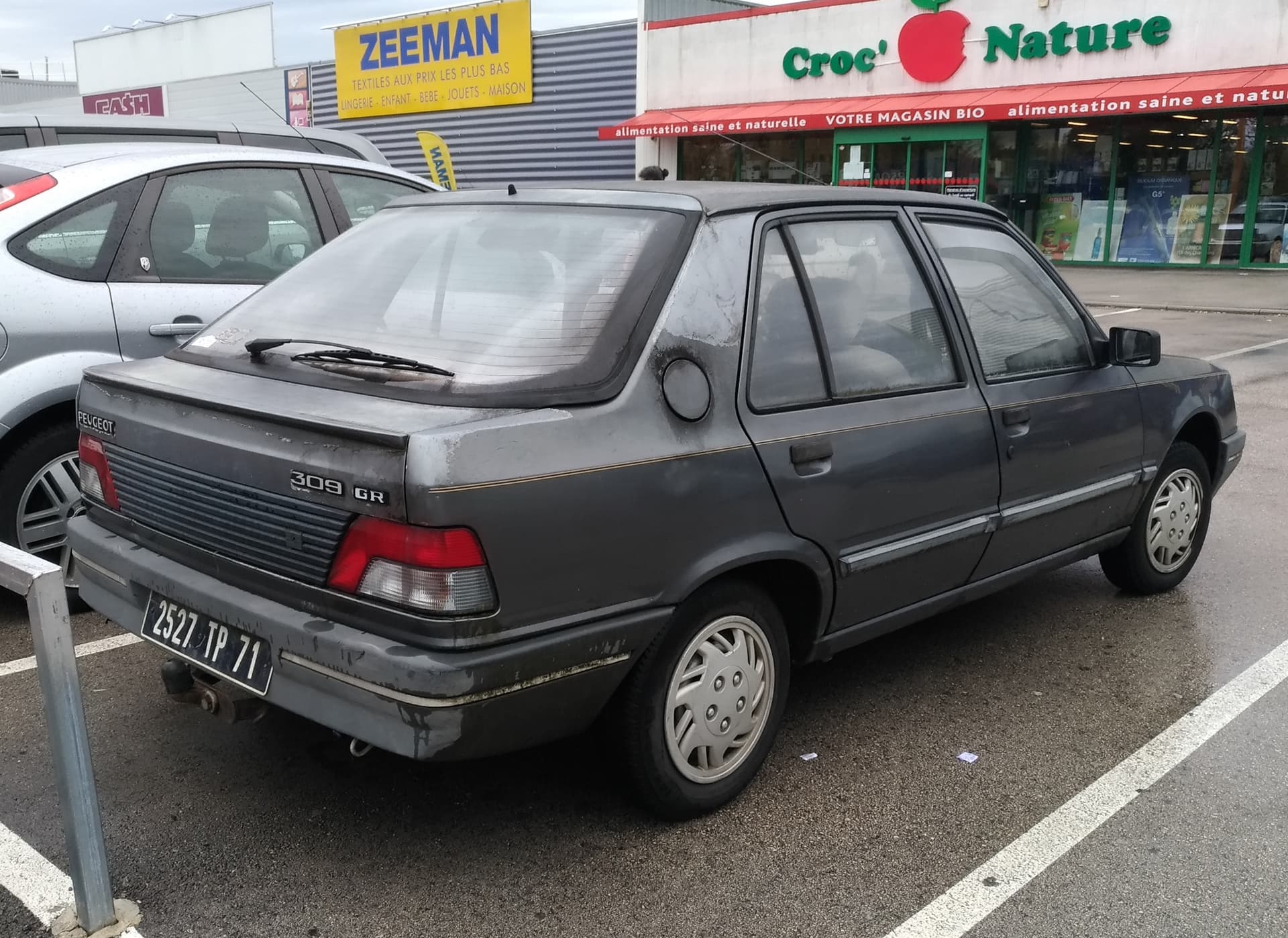

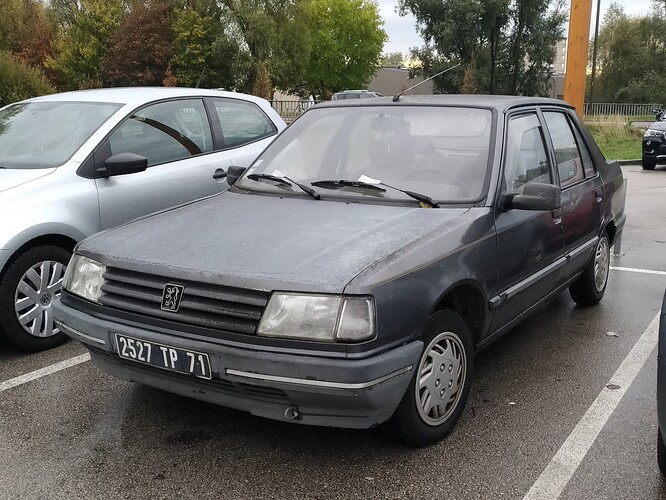

Peugeot 309 Liftback
––––––––––––––––––––––––––––––––––––––
▶️ 1. Main ◀️
-
Class:
C -
Body type:
5-door Liftback -
Transmision:
5-speed Automatic -
Drivetrain:
FWD -
Length:
4051 mm -
Width:
1628 mm -
Height:
1380 mm -
Wheelbase:
2469 mm -
Wheel track - front:
1408 mm -
Wheel track - rear:
1376 mm -
Front overhang:
753 mm -
Rear overhang:
829 mm -
Type of steering system:
rack and pinion transmission with hydraulic support -
Basic tires:
165/70 R13 -
Brake type (front):
disc -
Brake type (rear):
drum -
Suspension type (front):
transverse wishbone, telescopic shock absorber -
Suspension type (rear):
trailing arm, torsion bar -
Own weight:
850 kg -
Number of seats:
5
––––––––––––––––––––––––––––––––––––––
▶️ 2. Engine ◀️
-
Model:
1.4 -
Produced:
from 1990 to 1993 -
Displacement:
1360 cm³ -
Engine type:
petrol -
Engine power:
67 HP (49 kW) at 5600 rpm -
Maximum torque:
109 Nm -
Engine assembly:
at the front, transversely -
Number of cylinders:
4 -
Cylinder arrangement:
inline -
Number of valves:
8 -
Compression ratio:
9:3 -
Bore x stroke:
75 mm x 77 mm -
Injection type:
carburetor -
Maximum speed:
166 km/h -
(0 - 100km/h):
13.1 seconds -
Engine code:
K1D TU3A
