πŸ‡©πŸ‡ͺ Opel Astra F Club Caravan after facelift (1994 - 2002)

Suggestions CC2 Vehicle Suggestions
, ,
1

Opel Astra F Club Caravan

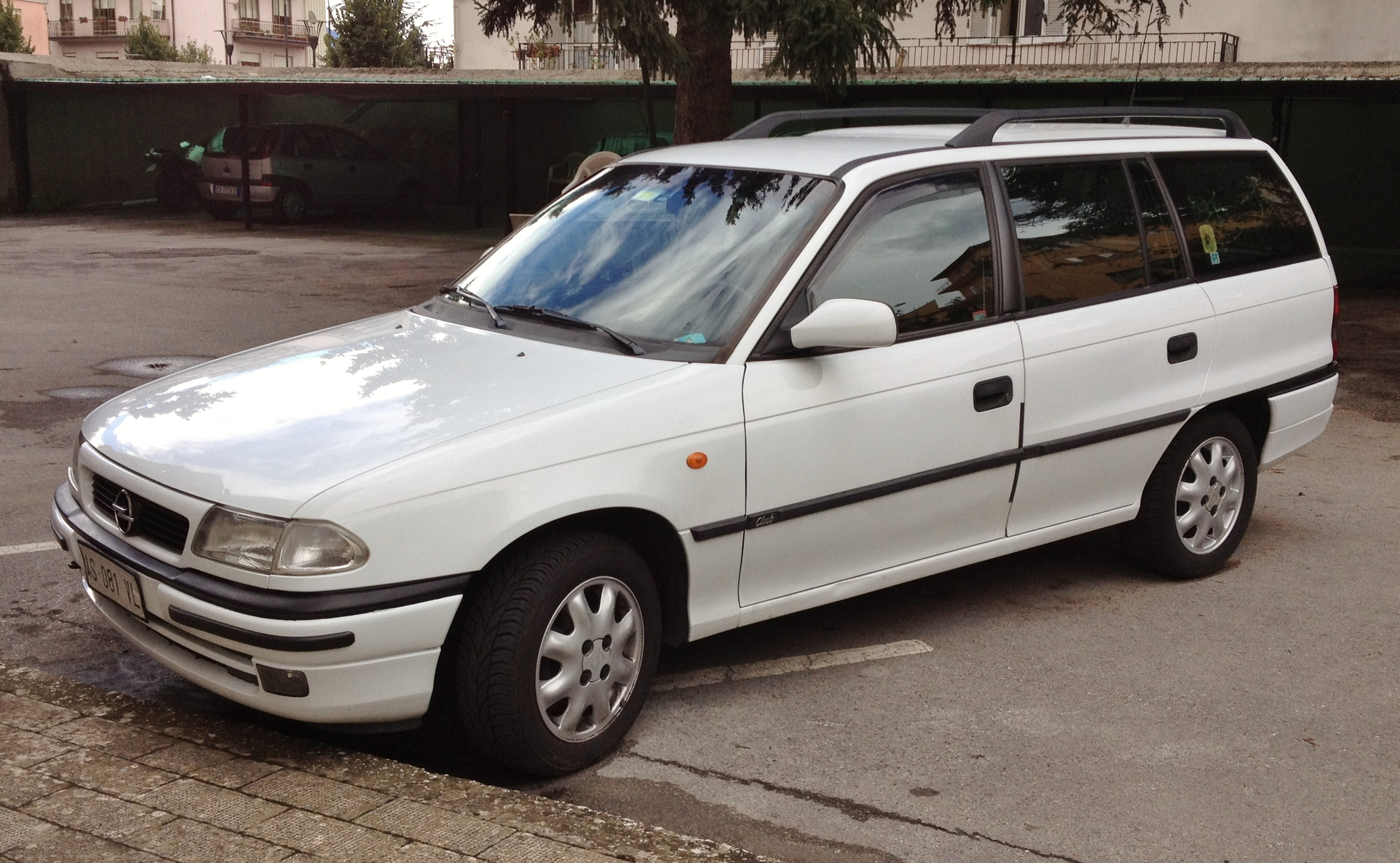

Opel_Astra_F_Caravan_1.7_TDS
Opel_Astra_F_Caravan_1.7_TDS1920Γ—1183 1.73 MB

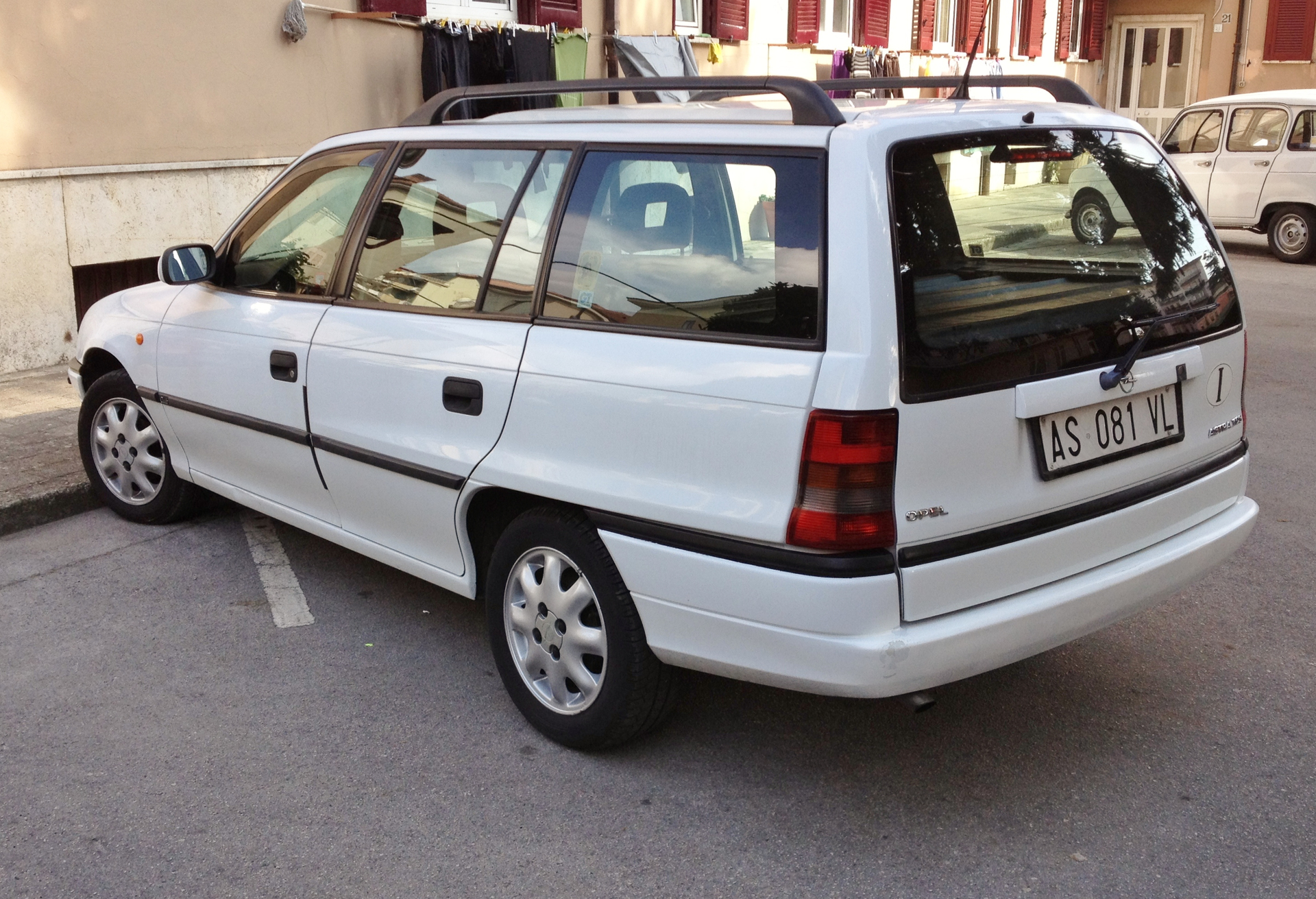

Opel_Astra_F_Caravan_1.7_TDS_Club_rear
Opel_Astra_F_Caravan_1.7_TDS_Club_rear1920Γ—1311 1.92 MB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: C

  • Body type: 5-door wagon

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Turning diameter: 10.5 m

  • Turning radius: 5.2 m

  • Length: 4278 mm

  • Width: 1696 mm

  • Height: 1410 mm

  • Wheelbase: 2517 mm

  • Front wheeltrack: 1430 mm

  • Rear wheeltrack: 1429 mm

  • Steering system type: Rack and pinion with hydraulic power assist

  • Basic tire size: 155/80 R13

  • Optional tire sizes: 175/65 R14; 185/55 R15; 185/60 R14

  • Front brake type: disc

  • Rear brake type: drum

  • Front suspension type: McPherson struts

  • Rear suspension type: torsion beam

  • Current weight: 1160 kg

  • Number of seats: 5

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.7 TDS

  • Produced: from 1993 to 1998

  • Displacement: 1686 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power: 82 hp (60 kW) at 4400 rpm

  • Maximum torque: 168 Nm at 2400 rpm

  • Engine mounting: at the front, transverselly

  • Top-up: turbocharger

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 22.0 : 1

  • Bore Γ— stroke: 79 mm Γ— 86 mm

  • Injection type: indirect

  • Maximum: 168 km/h

  • 0 - 100 km/h: 14.5 seconds

  • Engine code: X17DT
