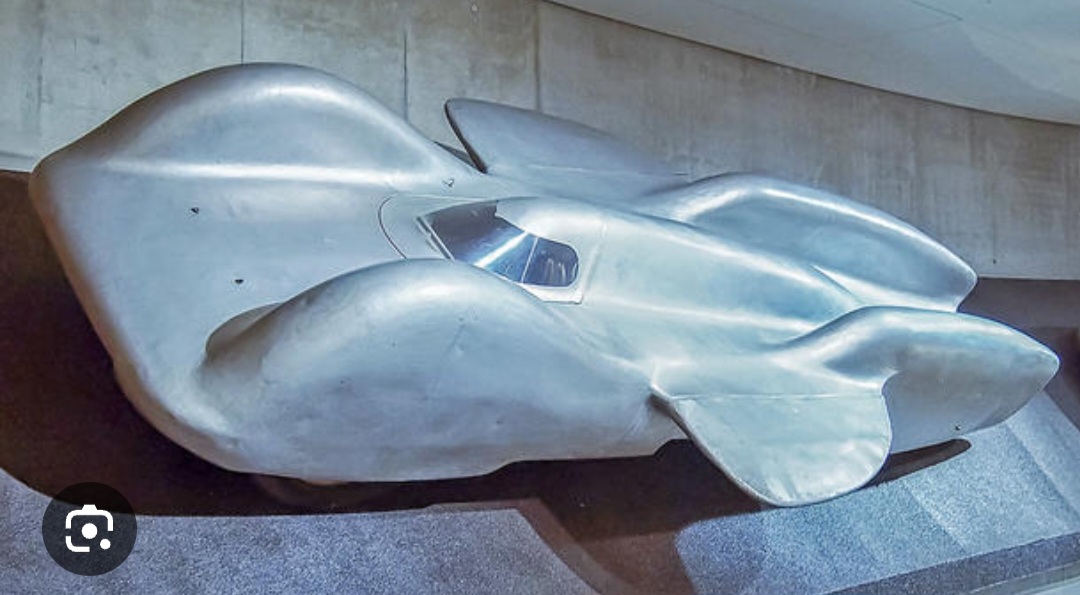

Mercedes T80
It was a car built in the 1930s that was meant to break the speed record. Ferdinand Porsche, the inventor, never got the opportunity to test it due to the outbreak of WW2. In reality, it only went 184 mph (I calculated it) and by no means could break the land speed record.
The project began in 1937, while the Third Reich was at the height of its powers. Automotive designer Dr. Ferdinand Porsche first aimed at a speed of 550 km / h (342 mph), but after George Eyston and John Cobb’s successful LSR. In the 1938 and 1939 races, the target speed was raised to 600 km. / h (373 mph). At fines from 1939, when the project was completed, the target speed was much higher than 750 km / h (466 mph). This would also be the first attempt to achieve the absolute land speed record on German soil. envisioned the T80 as another propaganda triumph of German technological superiority that will be witnessed around the world, courtesy of German television. The same Autobahn ride had already proven ideal for breaking records in lower capacity classes, as Britain’s Goldie Gardner topped 200 mph (322 km / h) in a 1,500 cc MG.
The huge 44.5-liter inverted Daimler-Benz DB 603 V12 was selected to power the record-breaking car. The engine was a higher displacement derivative of the famous DB-601 aircraft engine that powered the Messerschmitt Bf 109 fighter in production at the time, and the DB 603 ended up as the highest displacement inverted V12 aviation engine in production for Germany during the World War. II years. The installed DB-603 was only the third prototype (V3) engine of this variant and tuned up to 3,000 hp (2,237 kW; 3,042 PS), about twice the power of the Bf 109 or Supermarine Spitfire. The engine ran on a special mixture of methyl alcohol (63%), benzene (16%), ethanol (12%), acetone (4.4%), nitrobenzene (2.2%), avgas (2%) and ether (0.4% ). ) with injection of MW (methanol-water) to cool the load and as an anti-detonator.
The difficulty of the challenge met with money and engineering genius. In 1939, the T80 was completely completed at a cost of RM 600,000. The car was over 8 m (26 ft) long, had three axles with two of them driven, weighed over 2.7 metric tons (three short tons) and produced 3,000 hp (2,237 kW; 3,042 PS) along with the aerodynamics of the specialist Josef. Mickl to reach a projected speed of 750 km / h (466 mph). Aerodynamically, the T80 featured a closed Porsche-designed cockpit, sloping low hood, rounded wings, and elongated tail arms. In the middle of the body were two small wings to provide downforce and ensure stability; These wings were inspired by the wings of the famous Opel rocket cars from 1928
Technical data
Total Weight: 2,896 kg (6,385 lbs)
Power: 3,000 hp (2,237 kW; 3,042 PS) at 3,200 rpm [2]
Engine: 44.5 liters (2716 cubic inches)
Wheels: (6) 7 X 31
Length: 8,128 meters (26 feet 8 inches)
Width (body without wings): 1,753 meters (5 feet 9.0 inches)
Width (body with wings): 3.20 meters (10 feet 6 inches)
Height: 1,245 meters (4 feet 1 inch)
Drag coefficient: 0.18
Speed: estimated between 550 and 750 km / h (340 and 470 mph)
jet
2 years
Well the forum is ageing
R E V I V E
Before posting, make sure that:
If it already exists, like that instead to increase the chances of it being added!
It would be awesome to add the Mercedes T80 to the game! This iconic car set speed records in the 1930s. Its inclusion could bring a unique and nostalgic racing experience to
omg t80 in cars real1!!1!1!1
This is not mercedes t80 this is flash mcwish
Yrevive
This would’ve probably been the fastest piston-engined vehicle in existence had it been ran.
I believe that that V12 is around as heavy as an average car though)))
t80 is the red hypercar
Revive
Never touched road
We can dream
NAME: (Add in title too) Mercedes T-80
PICTURES:
DO NOT POST IF THERE ALREADY IS A VEHICLE SUGGESTION FOR THIS CAR (Check the ”Your topic is similar to…” tab or search on the forum)
Ferdinand Porsche collab
