πŸ‡©πŸ‡ͺ Mercedes-benz T1 MWB Minibus (1977 - 1995)

Suggestions CC2 Vehicle Suggestions
, ,
1

Mercedes-benz T1 MWB Minibus

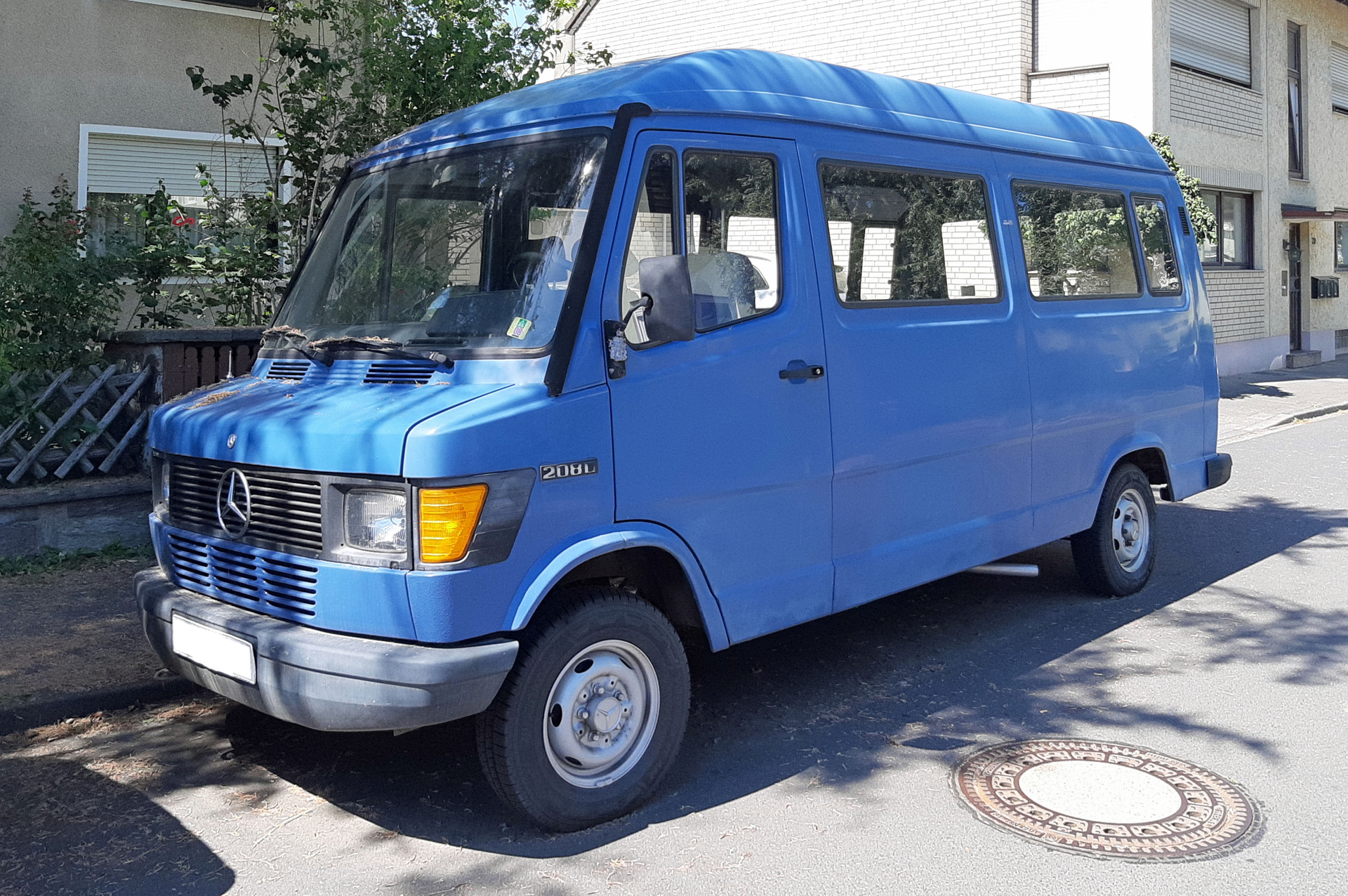

52435207714_2f35bf1a87_o
52435207714_2f35bf1a87_o1920Γ—1276 2.15 MB

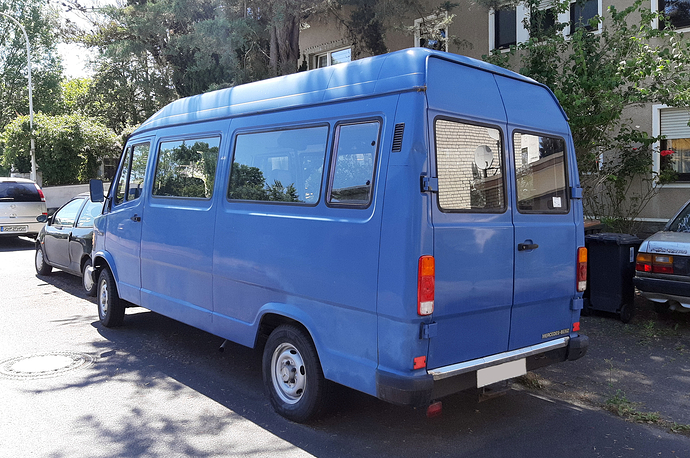

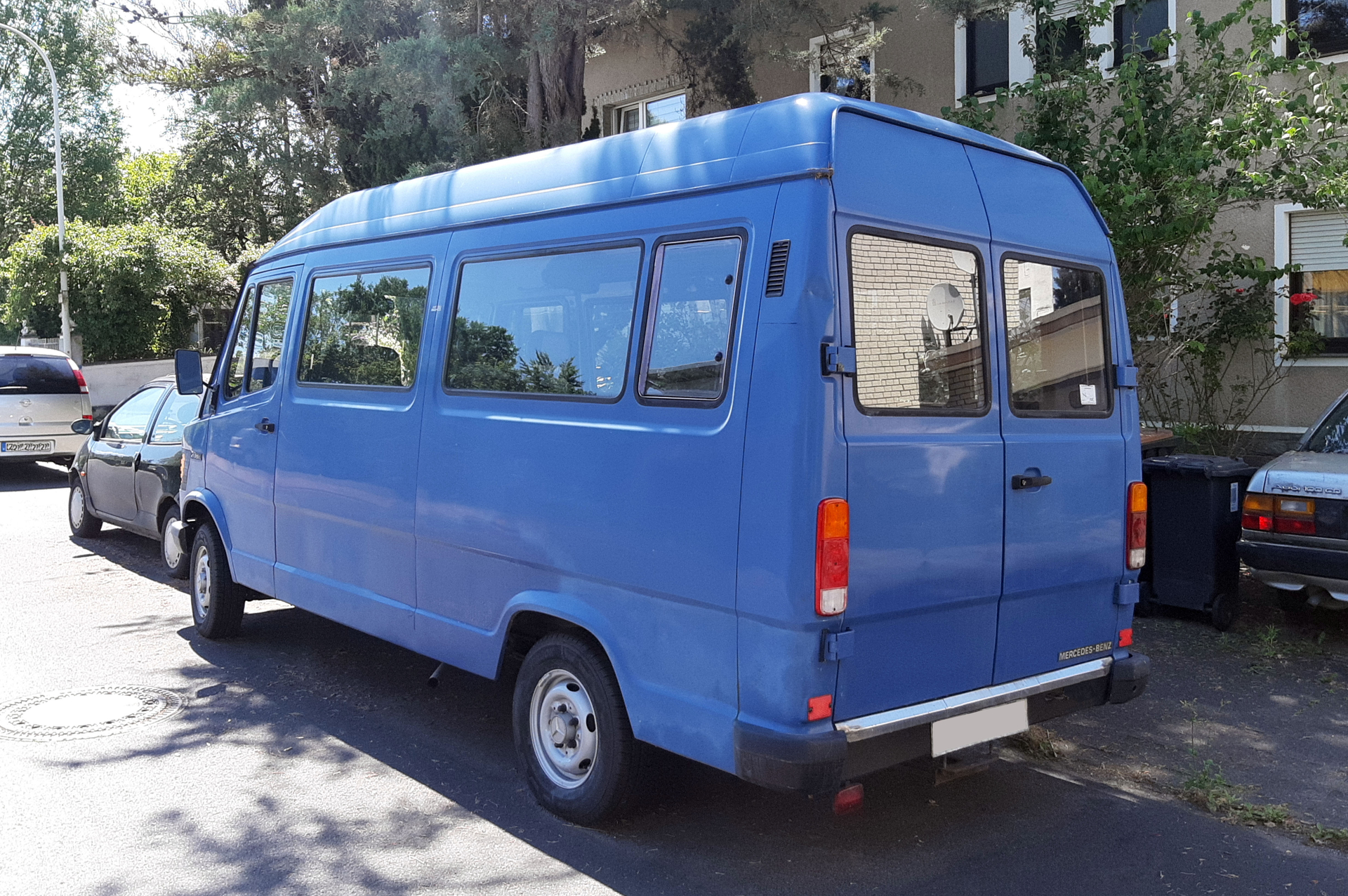

52434932471_7c06c5454c_o (1)
52434932471_7c06c5454c_o (1)1920Γ—1276 2.15 MB

------------------------------------------------------------------------

▢️ 1. Main ◀️

  • Class: E LCV

  • Body type: 4-door

  • Transmision: 5-speed automatic

  • Drivetrain: RWD

  • Length: 5640 mm

  • Width: 1935 mm

  • Height: 2365 mm

  • Wheelbase: 3350 mm

  • Front wheeltrack: 1638 mm

  • Rear wheeltrack: 1630 mm

  • Front overhang: 882 mm

  • Rear overhang: 1005 mm

  • Clearance: 189 mm

  • Tire size: 175 R14 LT

  • Rim size: 5Jx14

  • Front brake type: disc

  • Rear brake type: drum

  • Own weight: 1830 kg

  • Number of seats: 9

------------------------------------------------------------------------

▢️ 2. Engine ◀️

  • Model: 208 D

  • Produced: from 1988 to 1995

  • Displacement: 2299 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power: 79 hp (58 kW) at 3800 rpm

  • Maximum Torque: 157 Nm at 2800 rpm

  • Engine mounting: at the front, longitudinally

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 22,0: 1

  • Bore Γ— stroke: 89,0 mm Γ— 92,4 mm

  • Injection type: indirect

  • Ignition type: Compression

  • Maximum speed: 130 km/h

  • 0 - 100km/h: 40 seconds

  • Engine code: OM 601.940

7 Likes
