πŸ‡©πŸ‡ͺ Mercedes-Benz Sprinter MK1 MWB Panel Van before facelift (1995 - 2000)

Suggestions CC2 Vehicle Suggestions
1

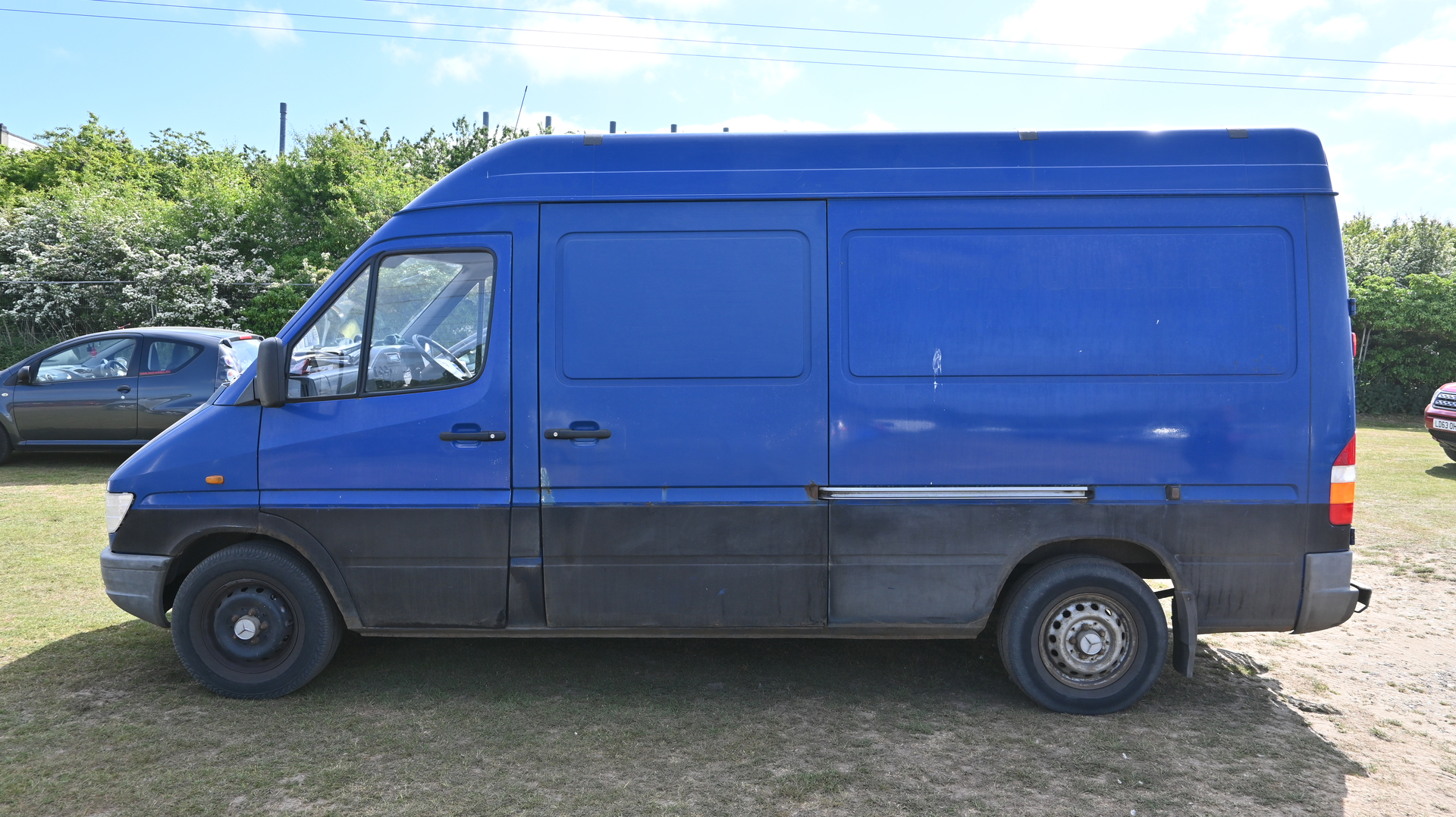

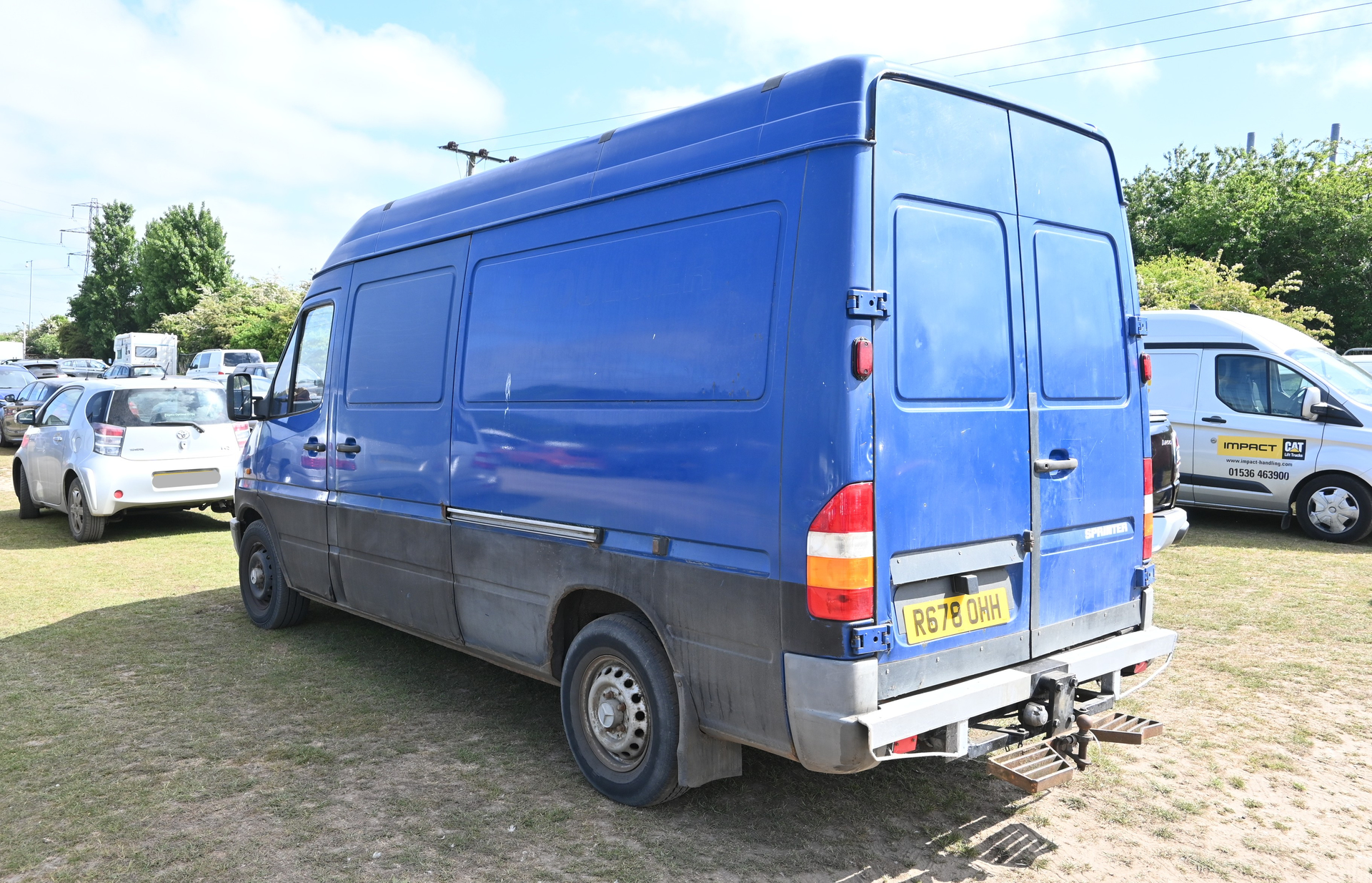

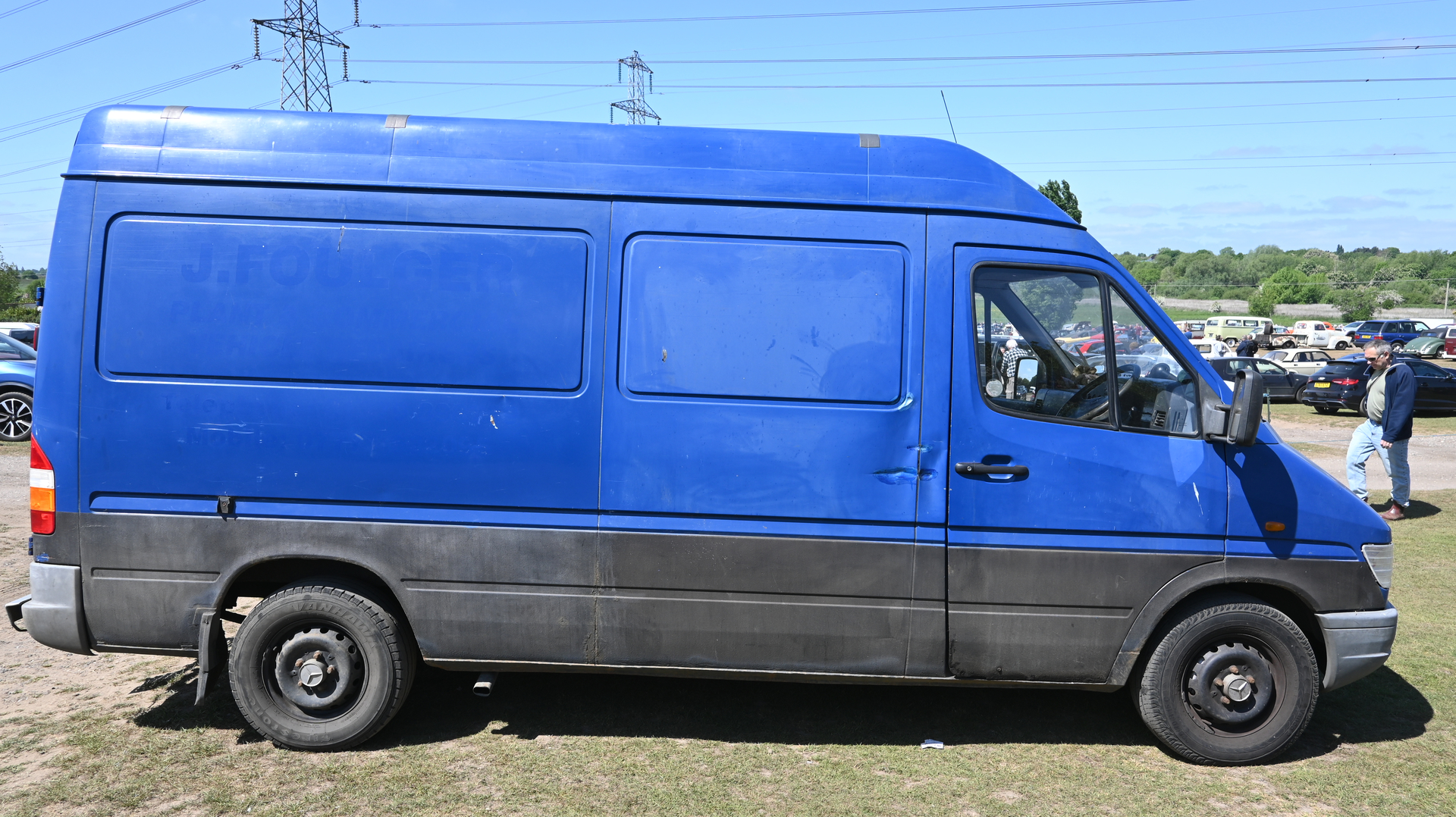

Mercedes-Benz Sprinter MK1 Panel Van

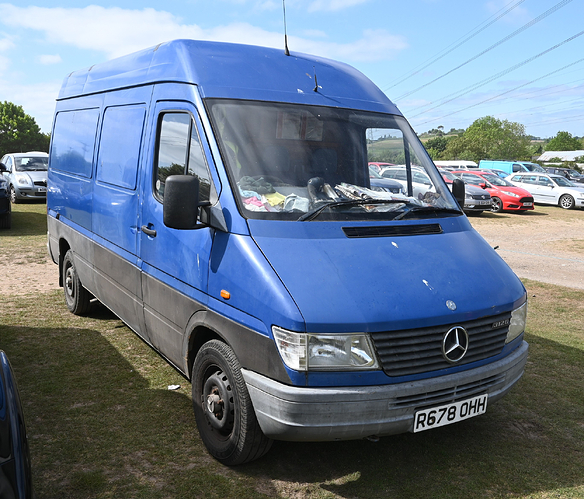

54577131529_b9c2f32a7d_o
54577131529_b9c2f32a7d_o1920Γ—1643 2.36 MB

54576951186_3ef601107a_o
54576951186_3ef601107a_o1920Γ—1235 1.93 MB

54577131559_2ef9a099f1_o
54577131559_2ef9a099f1_o1920Γ—1078 1.81 MB

54576081562_ca123b9ecf_o
54576081562_ca123b9ecf_o1920Γ—1078 1.75 MB

----------------------------------------------------------------------

▢️ 1. Main ◀️

  • Class: E LCV

  • Body type: 4-door van

  • Transmision: 5-speed automatic

  • Drivetrain: RWD

  • Length: 5640 mm

  • Width: 1935 mm

  • Height: 2365 mm

  • Wheelbase: 3550 mm

  • Front wheeltrack: 1638 mm

  • Rear wheeltrack: 1630 mm

  • Front overhang: 882 mm

  • Rear overhang: 1005 mm

  • Clearance: 189 mm

  • Basic tire size: 225/70 R15C

  • Optional tire sizes: 195/70 R15C

  • Basic rim size: 6J x 15

  • Optional rim size: 5,5J x 15

  • Front brake type: disc

  • Rear brake type: disc

  • Own weight: 2050 kg

  • Number of seats: 3

------------------------------------------------------------------------

▢️ 2. Engine ◀️

  • Model: 312 D

  • Produced: from 1995 to 2000

  • Displacement: 2874 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power: 122 hp (90 kW) at 3800 rpm

  • Maximum Torque: 280 Nm at 2300 rpm

  • Engine mounting: at the front, longitudinally

  • Boost: turbocharger, intercooler

  • Position of the camshaft: SOHC

  • Number of cylinders: 5

  • Cylinder arrangement: inline

  • Number of valves: 10

  • Compression ratio: 19,5:1

  • Bore Γ— stroke: 89,0 mm Γ— 92,4 mm

  • Injection type: direct

  • Ignition type: Compression

  • Maximum speed: 160 km/h

  • 0 - 100km/h: 22 seconds

  • Engine code: OM 602 DE 29 LA

6 Likes
