πŸ‡©πŸ‡ͺ Mercedes-Benz S124 after facelift (1989 - 1993)

Suggestions CC2 Vehicle Suggestions
, ,
1

Mercedes-Benz S124

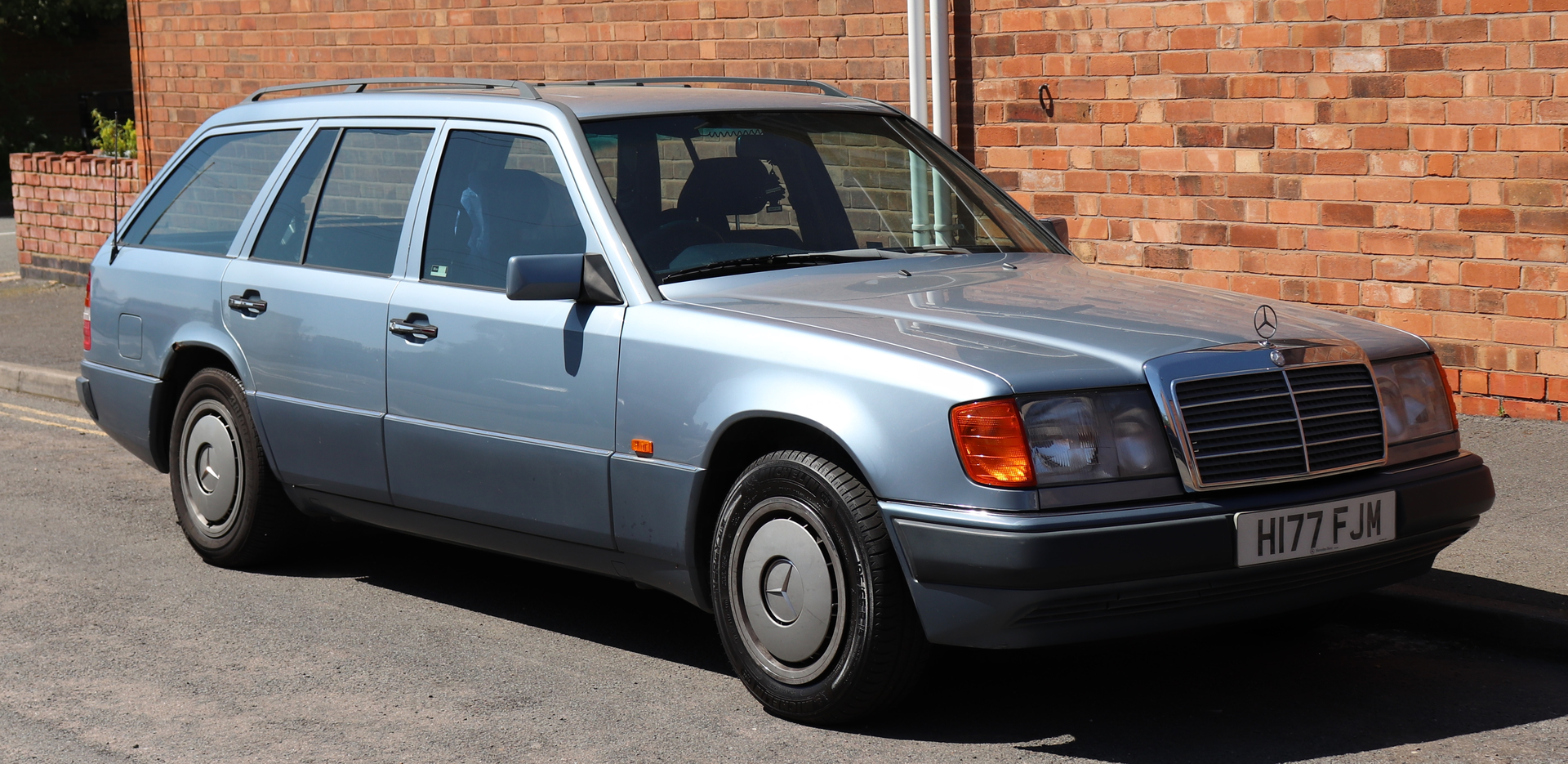

1990_Mercedes-Benz_200TE_Automatic_2.0_Front
1990_Mercedes-Benz_200TE_Automatic_2.0_Front1920Γ—935 1.53 MB

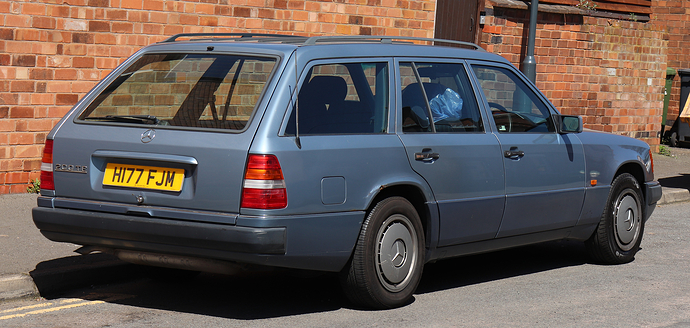

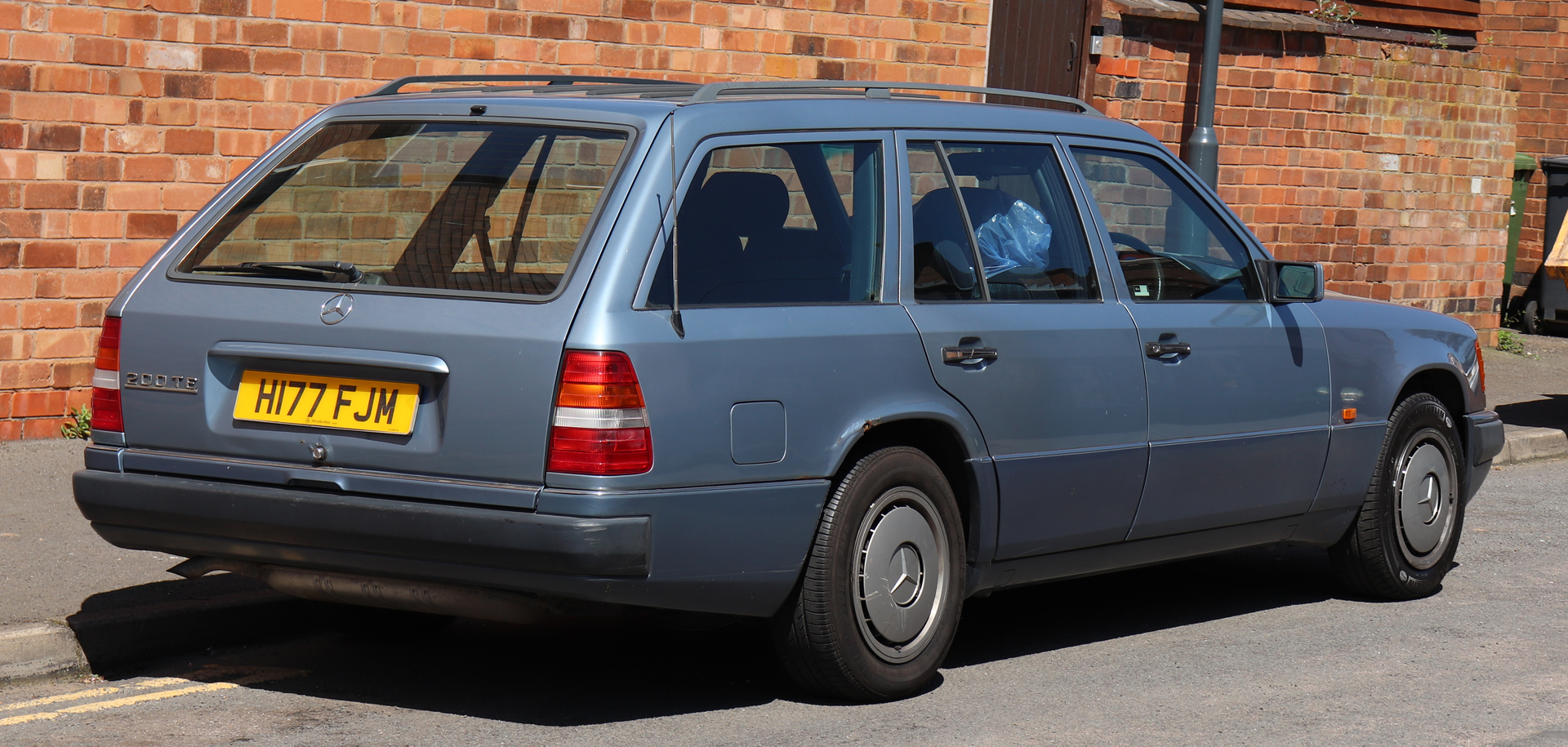

1990_Mercedes-Benz_200TE_Automatic_2.0_Rear
1990_Mercedes-Benz_200TE_Automatic_2.0_Rear1920Γ—915 1.56 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: E

  • Body type: 5-door wagon

  • Transmision: 4-speed automatic

  • Drivetrain: RWD

  • Turning diameter: 11.2 m

  • Turning radius: 5.6 m

  • Length: 4765 mm

  • Width: 1740 mm

  • Height: 1460 mm

  • Height with roof rails: 1489 mm

  • Wheelbase: 2800 mm

  • Front wheeltrack: 1497 mm

  • Rear wheeltrack: 1497 mm

  • Front overhang: 815 mm

  • Rear overhang: 1150 mm

  • Ground clearance: 145 mm

  • Steering system type: globoidal gear with hydraulic power assist

  • Tire size: 195/65 R15

  • Rim size: 6.5J x 15

  • Front brake type: disc

  • Rear brake type: disc

  • Own weight: 1460 kg

  • Number of seats: 5

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 200 TE

  • Produced: from 1988 to 1992

  • Displacement: 1997 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 118 hp (87 kW) at 5200 rpm

  • Maximum torque: 172 Nm at 3500 rpm

  • Engine mounting: at the front, longitudinally

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 9.1 : 1

  • Bore x stroke: 89 mm x 80.2 mm

  • Injection type: multi-point Bosch KE-Jetronic

  • Ignition type: electronic

  • Maximum speed: 175 km/h

  • 0 - 100 km/h: 13.1 seconds

  • Engine code: M102.963

2

definitely a wagon
