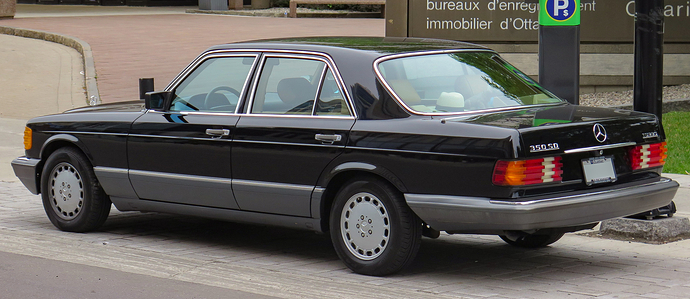

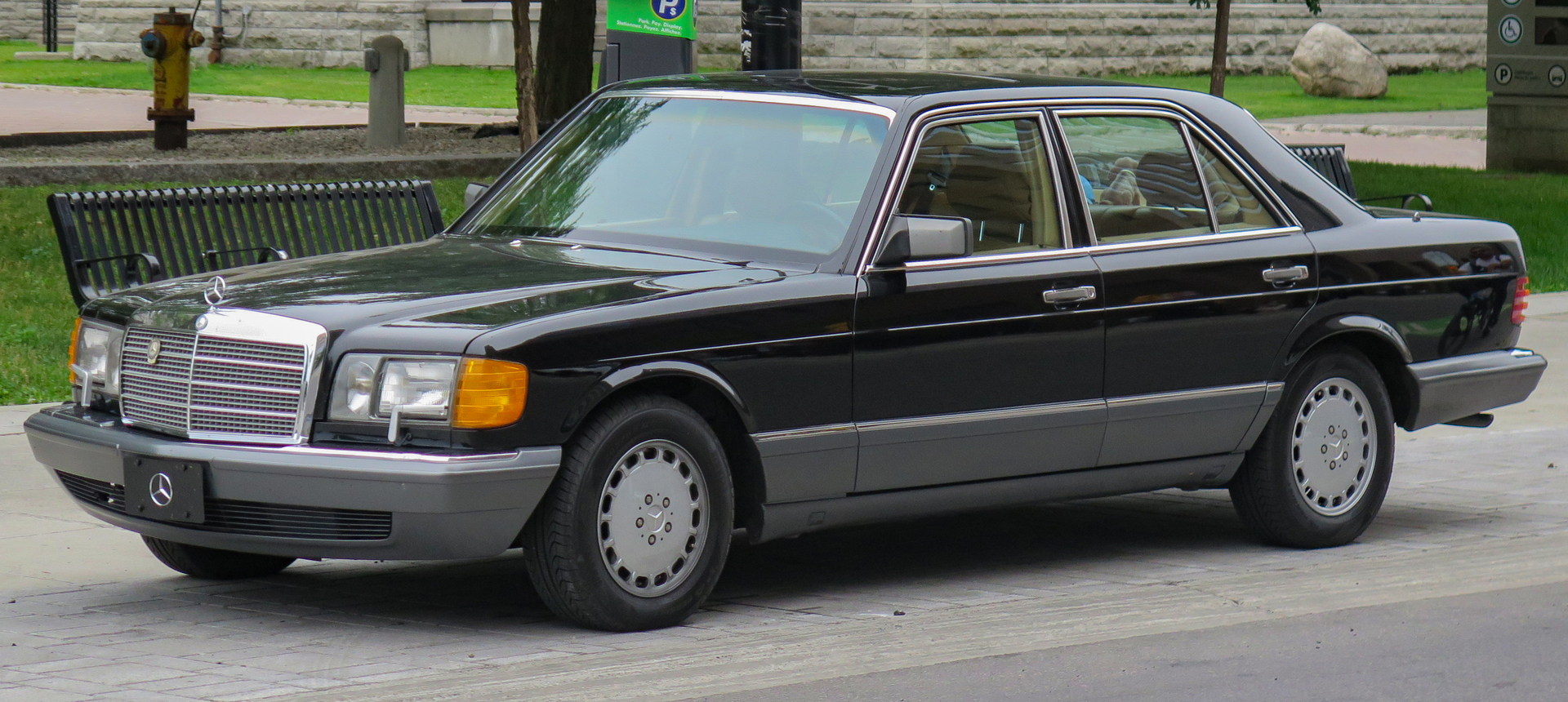

🇩🇪 Mercedes-benz S-class W126 after facelift (1985 - 1991)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

Mercedes-benz S-class W126

––––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: F

• Body type: 4-door sedan

• Transmision: 4-speed automatic

• Drivetrain: RWD

• Turning diameter: 12.3 m

• Turning radius: 6.2 m

• Length: 4995 mm

• Width: 1820 mm

• Height: 1430 mm

• Wheelbase: 2935 mm

• Front wheeltrack: 1562 mm

• Rear wheeltrack: 1534 mm

• Ground clearance: 140 mm

• Steering type: globoidal gear with hydraulic power assist

• Basic tire size: 205/65 R15

• Optional tire sizes: 195/70 R14; 205/70 R14; 215/65 R15

• Basic rim size: 6.5J x 15

• Optional rim size: 7J x 15

• Front brake type: Ventilated disc

• Rear brake type: Disc

• Front suspension type: Independent, double wishbones, coil springs, and anti-roll bar

• Rear suspension type: Independent, double wishbones, coil springs, and anti-roll bar

• Shock absorber type: Gas

• Own weight: 1770 kg

• Number of seats: 5

––––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: 350 SD Turbo

• Produced: from 1990 to 1991

• Displacement: 3449 cm³

• Engine type: 4-stroke diesel

• Engine power: 136 hp (100 kW) at 4000 rpm

• Maximum torque: 310 Nm at 2000 rpm

• Engine mounting: at the front, longitudinally

• Top-up: turbocharger

• Position of the camshaft: SOHC

• Number of cylinders: 6

• Cylinder arrangement: inline

• Number of valves: 12

• Compression ratio: 22.0:1

• Bore x stroke: 89 mm x 92.4 mm

• Injection type: indirect

• Ignition type: compression

• Maximum speed: 175 km/h

• 0 - 100 km/h: 13 seconds

• Engine code: OM603.970
