πŸ‡΅πŸ‡± Jelcz 315 Flatbed (1968 - 1982)

Suggestions CC2 Vehicle Suggestions
, ,
1

Jelcz 315 Flatbed

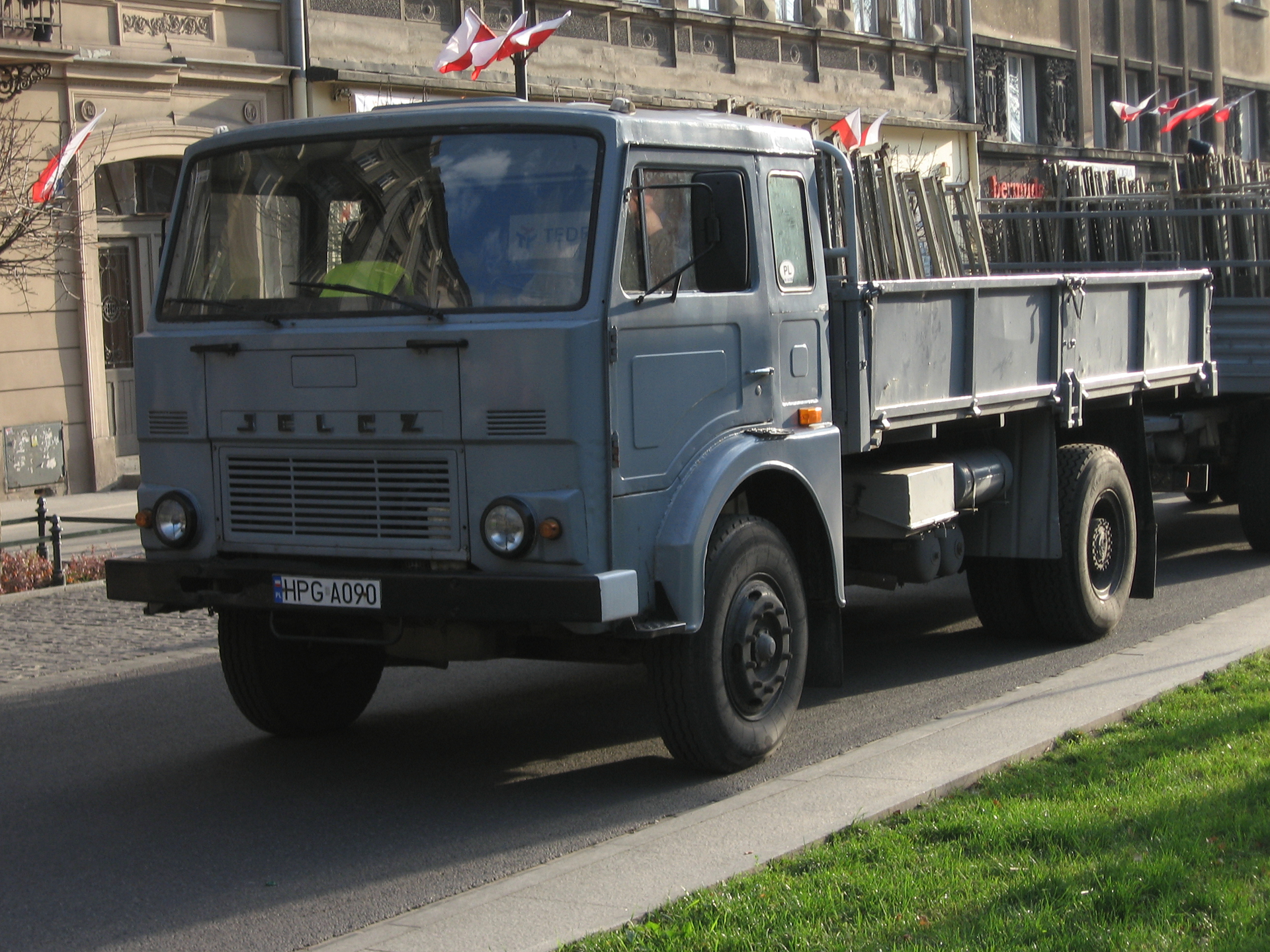

Grey_Jelcz_truck_of_the_Polish_Police_on_Matejki_square_in_KrakΓ³w
Grey_Jelcz_truck_of_the_Polish_Police_on_Matejki_square_in_KrakΓ³w1920Γ—1440 2.49 MB

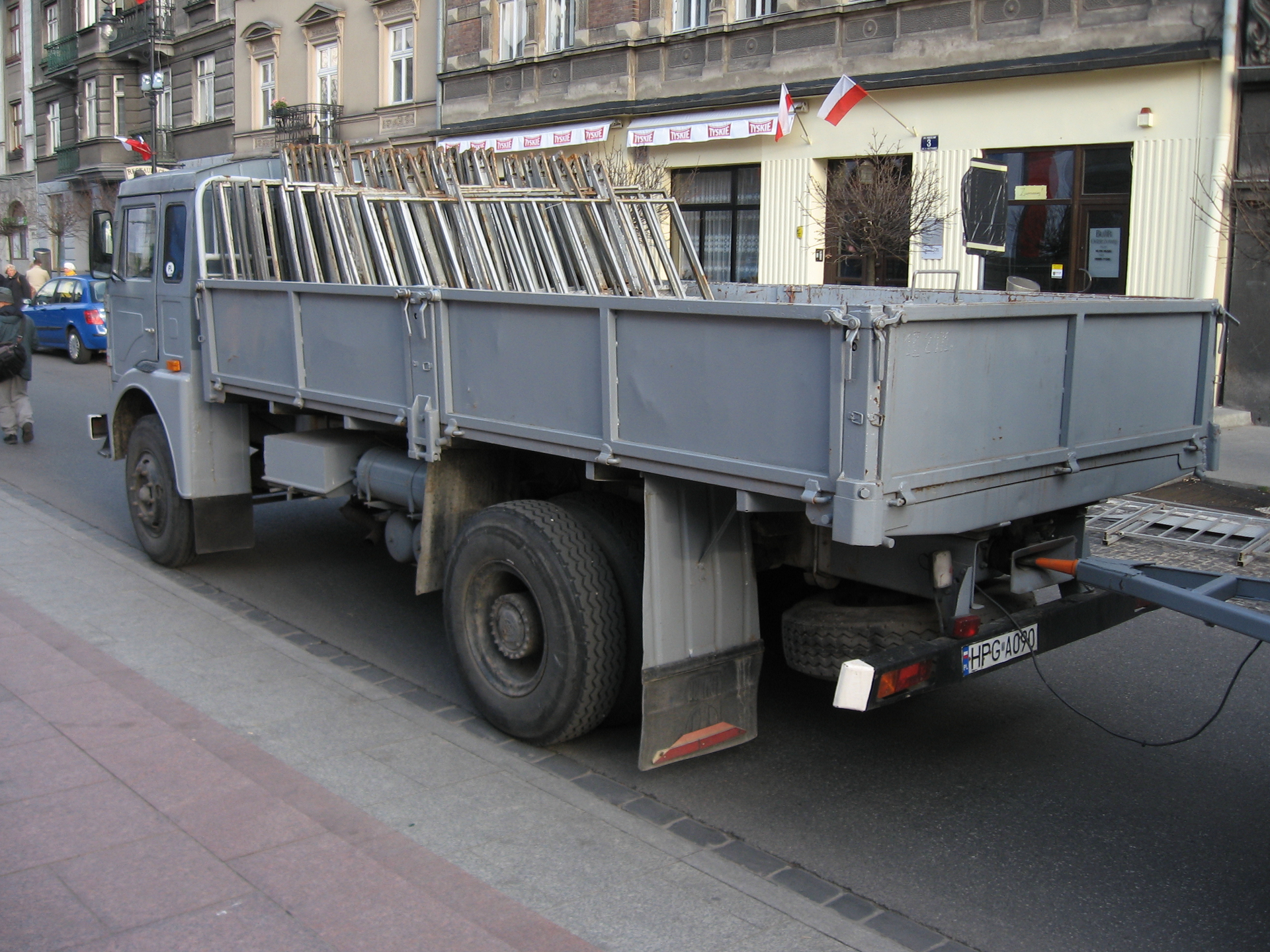

Grey_Jelcz_truck_of_the_Polish_Police_on_Matejki_square_in_KrakΓ³w_(1)
Grey_Jelcz_truck_of_the_Polish_Police_on_Matejki_square_in_KrakΓ³w_(1)1920Γ—1440 2.36 MB

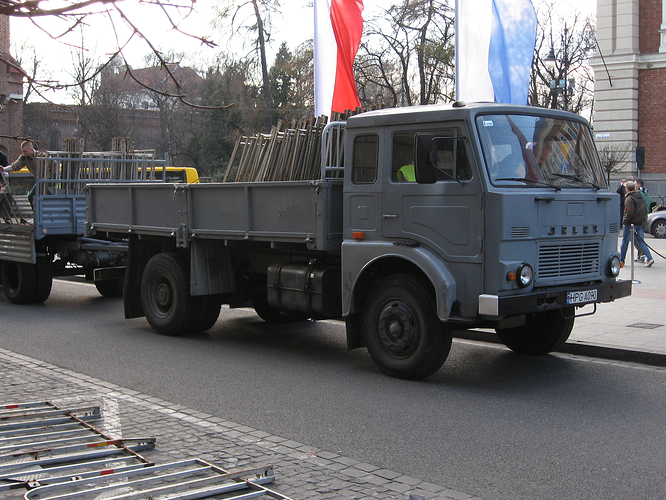

Grey_Jelcz_truck_of_the_Polish_Police_on_Matejki_square_in_KrakΓ³w_(2)
Grey_Jelcz_truck_of_the_Polish_Police_on_Matejki_square_in_KrakΓ³w_(2)1920Γ—1440 2.39 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: Heavy-duty Truck

  • Body type: 2-door Flatbed truck

  • Transmision: 5-speed automatic

  • Drivetrain: RWD

  • Length: 6820 mm

  • Width: 2500 mm

  • Height: 2660 mm

  • Wheelbase: 4100 mm

  • Front wheeltrack: 1700 mm

  • Rear wheeltrack: 1700 mm

  • Steering system type: ball screw with integral hydraulic power steering

  • Tire size: 11.00 R20

  • Rim size: 7.5 x 20

  • Front brake type: drum

  • Rear brake type: drum

  • Own Weight: 7350 kg

  • Number of seats: 3

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: SW 680/1

  • Produced: from 1966 to 1998

  • Displacement: 11,100 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power: 200 HP (147 kW) at 2200 rpm

  • Maximum torque: 743 Nm at 1200 rpm

  • Engine mounting: at the front, longitudinally

  • Position of the camshaft: OHV

  • Number of cylinders: 6

  • Cylinder arrangement: inline

  • Number of valves: 12

  • Compression ratio: 15.8: 1

  • Bore x stroke: 127 mm Γ— 146 mm

  • Injection type: direct

  • Ignition type: compression

  • Maximum speed: 87 km/h

  • Engine code: SW 680/1

Everything is on wikipedia

7 Likes
