πŸ‡΅πŸ‡± FSO Syrena 104 (1966 - 1972)

Suggestions CC2 Vehicle Suggestions
, ,
1

FSO Syrena 104

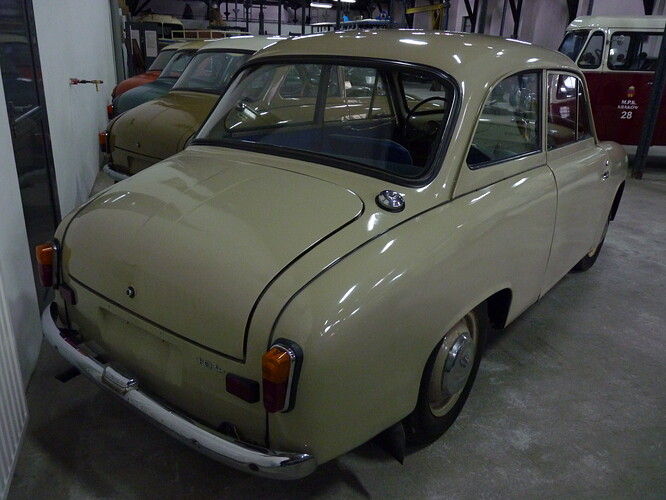

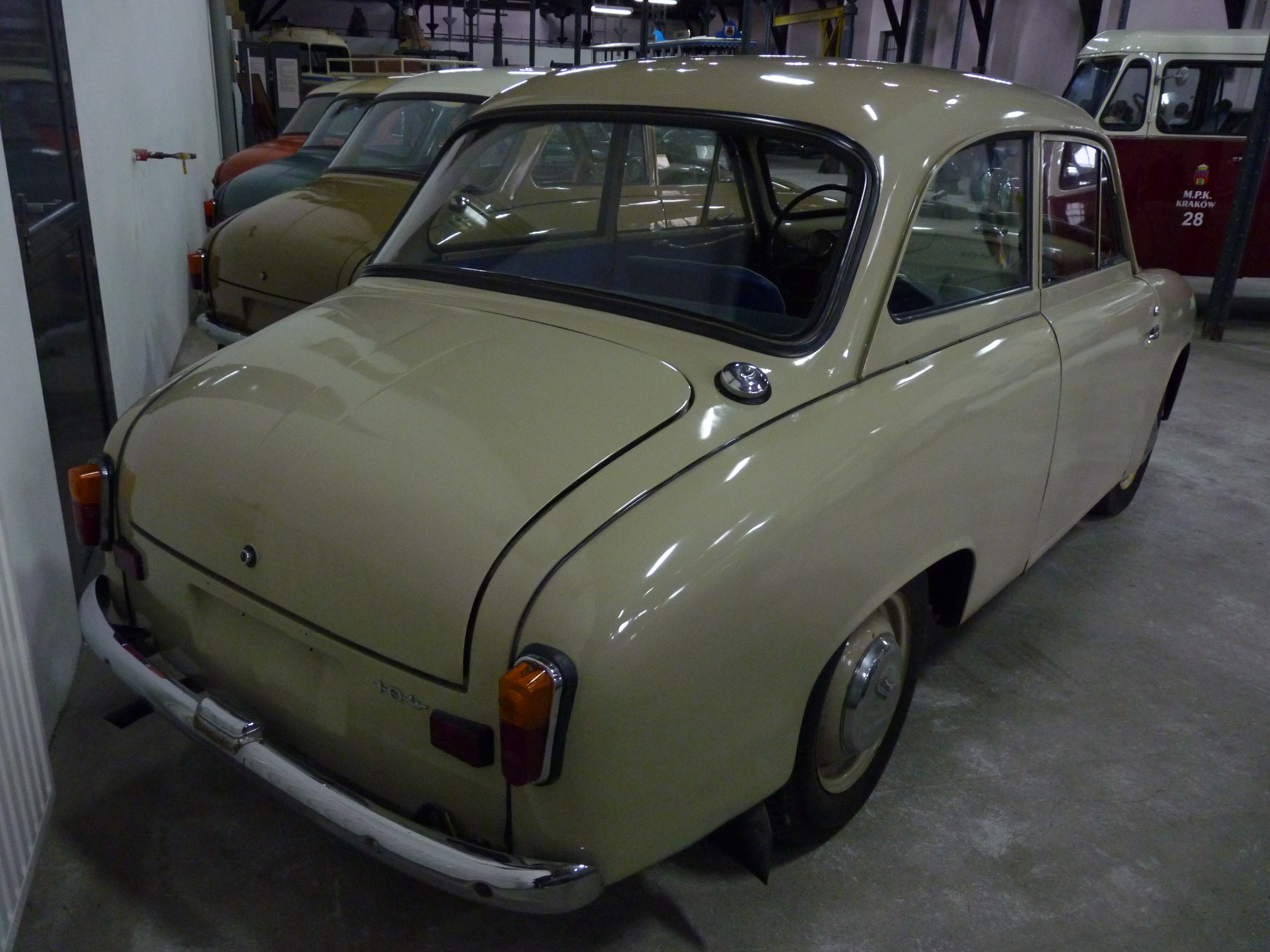

FSO_Syrena_104_at_the_Muzeum_InΕΌynierii_Miejskiej_in_KrakΓ³w_(3)
FSO_Syrena_104_at_the_Muzeum_InΕΌynierii_Miejskiej_in_KrakΓ³w_(3)4000Γ—3000 4.06 MB

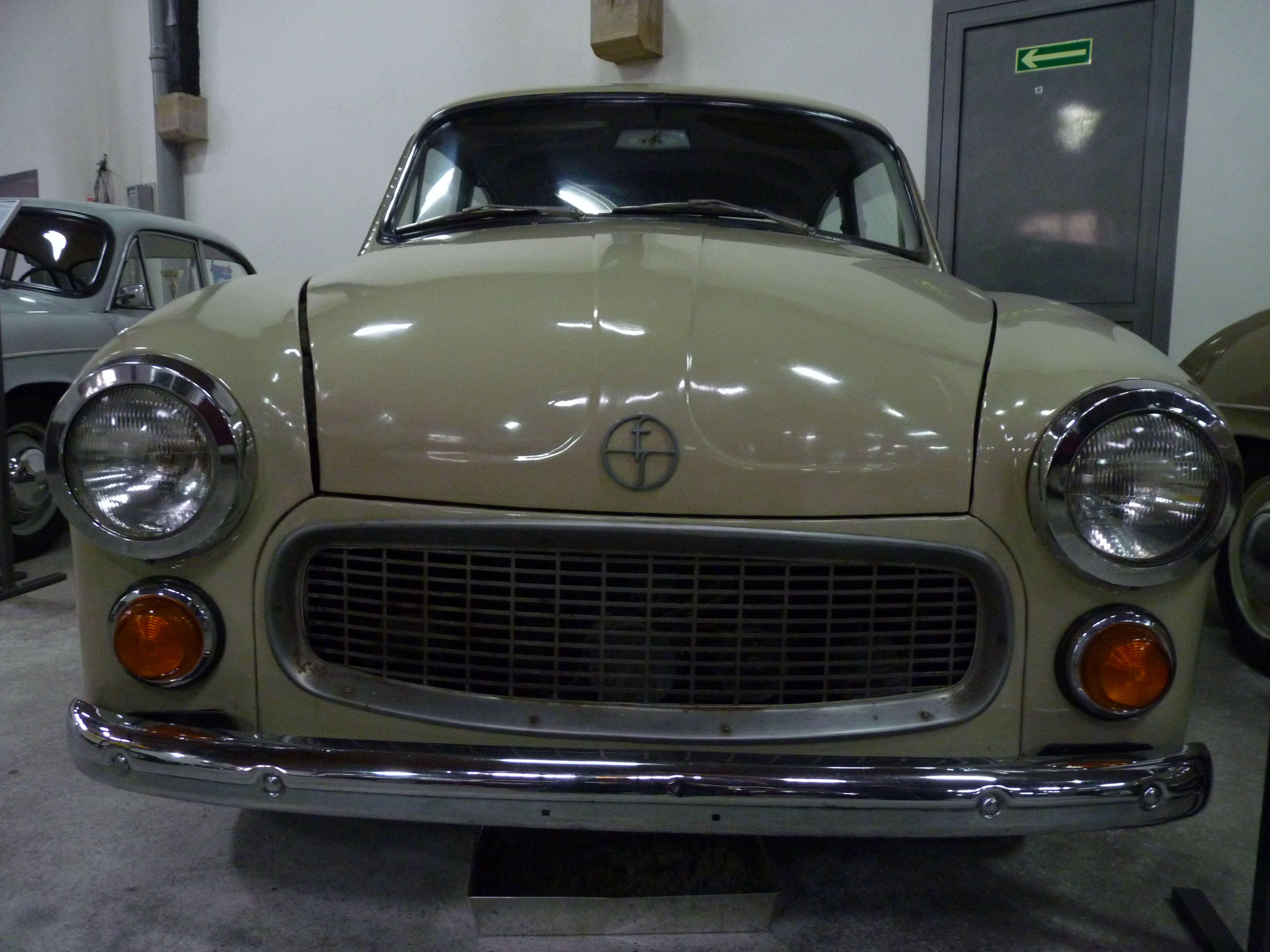

FSO_Syrena_104_at_the_Muzeum_InΕΌynierii_Miejskiej_in_KrakΓ³w_(1)
FSO_Syrena_104_at_the_Muzeum_InΕΌynierii_Miejskiej_in_KrakΓ³w_(1)4000Γ—3000 4.28 MB

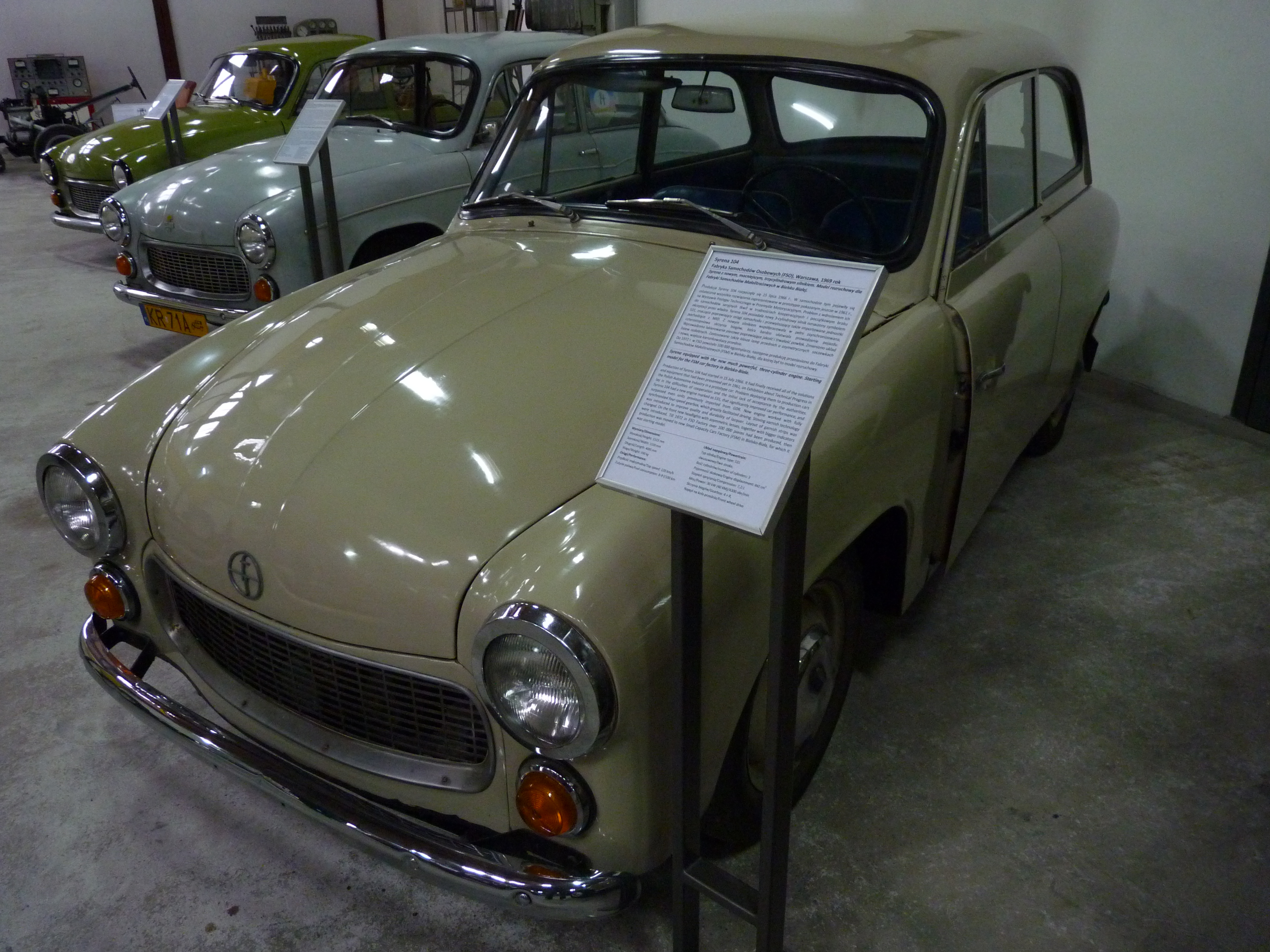

FSO_Syrena_104_at_the_Muzeum_InΕΌynierii_Miejskiej_in_KrakΓ³w_(4)
FSO_Syrena_104_at_the_Muzeum_InΕΌynierii_Miejskiej_in_KrakΓ³w_(4)4000Γ—3000 4.09 MB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: B

  • Body type: 2-door sedan

  • Transmision: 4-speed automatic

  • Drivetrain: FWD

  • Length: 4040 mm

  • Width: 1560 mm

  • Height: 1515 mm

  • Wheelbase: 2300 mm

  • Front wheeltrack: 1200 mm

  • Rear wheeltrack: 1240 mm

  • Front overhang: 774 mm

  • Rear overhang: 966 mm

  • Ground clearance: 200 mm

  • Tire size: 155/85 R15

  • Front brake type: drum

  • Rear brake type: drum

  • Front suspension type: independent, transverse leaf spring, wishbones, double-acting telescopic shock absorbers

  • Rear suspension type: dependent, floating axle (transverse leaf spring attached to the axle at one end, sliding at the other; when the suspension is compressed, the axle moves laterally), one double-acting lever-piston shock absorber

  • Own weight: 940 kg

  • Number of seats: 5

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: S-31

  • Produced: from 1966 to 1983

  • Displacement: 842 cmΒ³

  • Engine type: 2-stroke petrol

  • Cooling: water

  • Engine power: 40 hp (29 kW) at 4300 rpm

  • Maximum torque: 78 Nm at 2750 rpm

  • Engine mounting: at the front, longitudinally

  • Radiator mounting: at the front, in front of the engine

  • Location of the camshaft: OHV

  • Number of cylinders: 3

  • Cylinder arrangement: inline

  • Compression ratio: 7.2:1

  • Bore x stroke: 70 mm x 73 mm

  • Ignition: spark

  • Injection type: JIKOV 35 POH/048 carburetor

  • Maximum speed: 120 km/h

  • Economical speed: 60-80 km/h

  • Engine code: S-31
