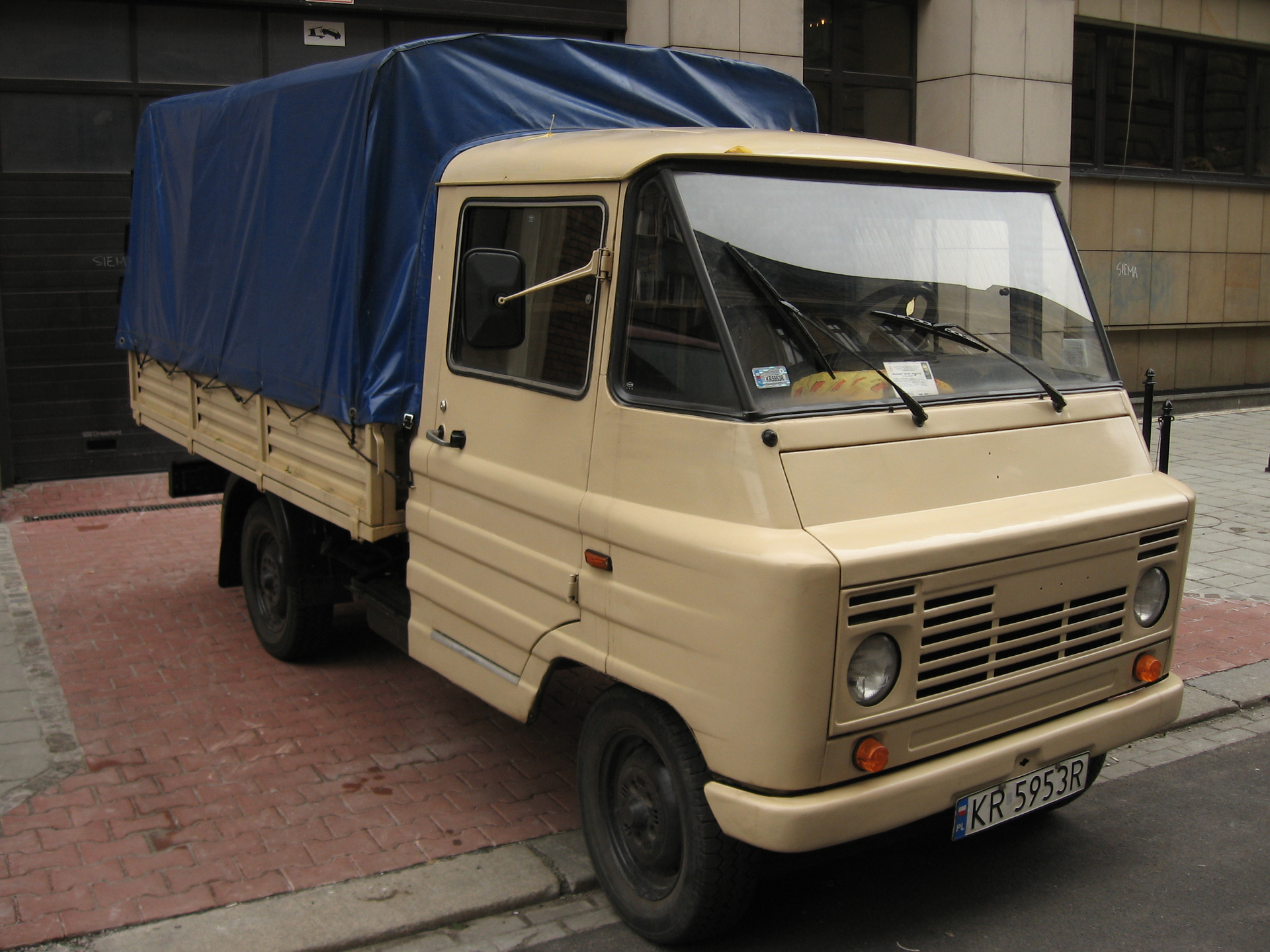

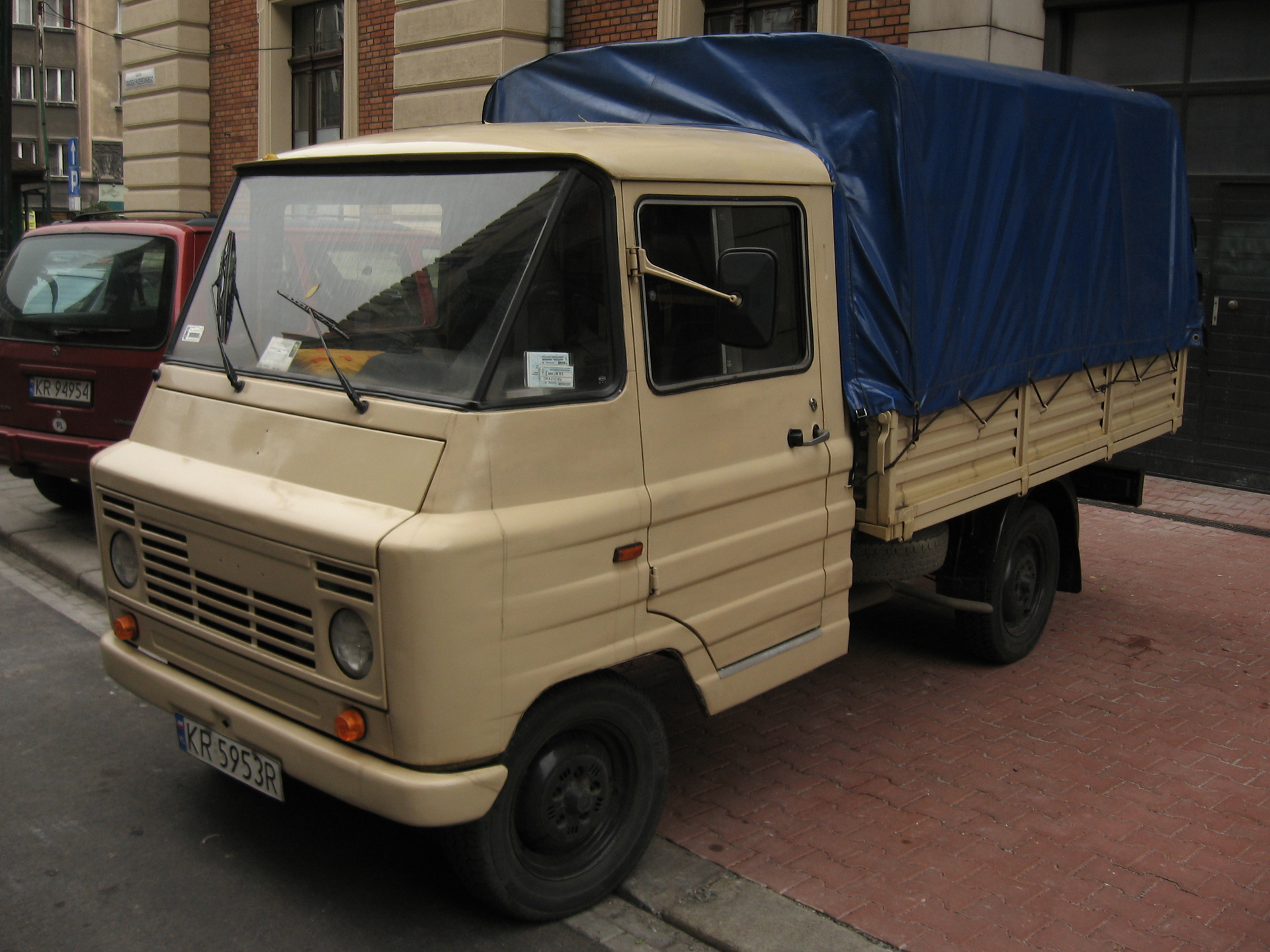

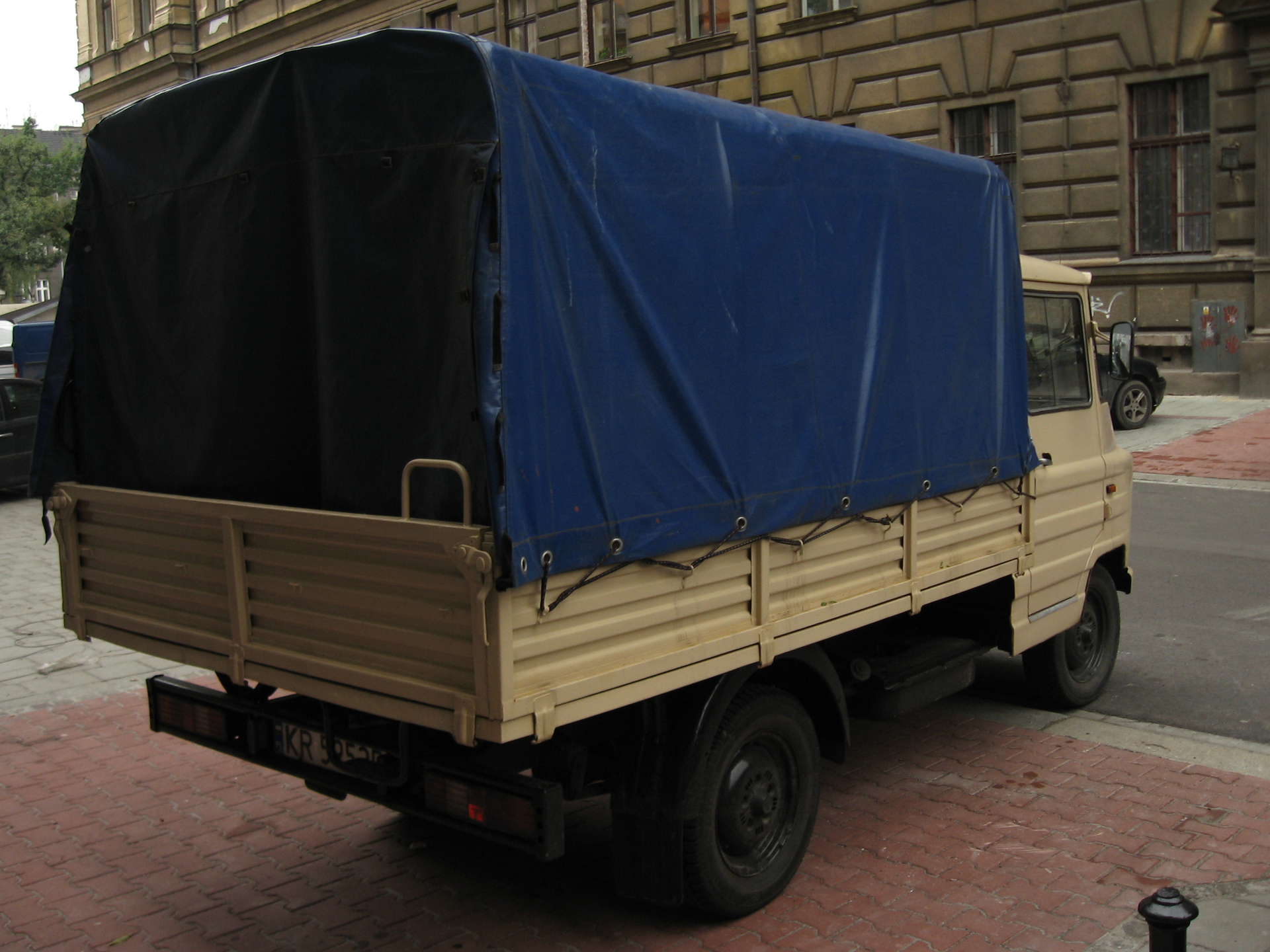

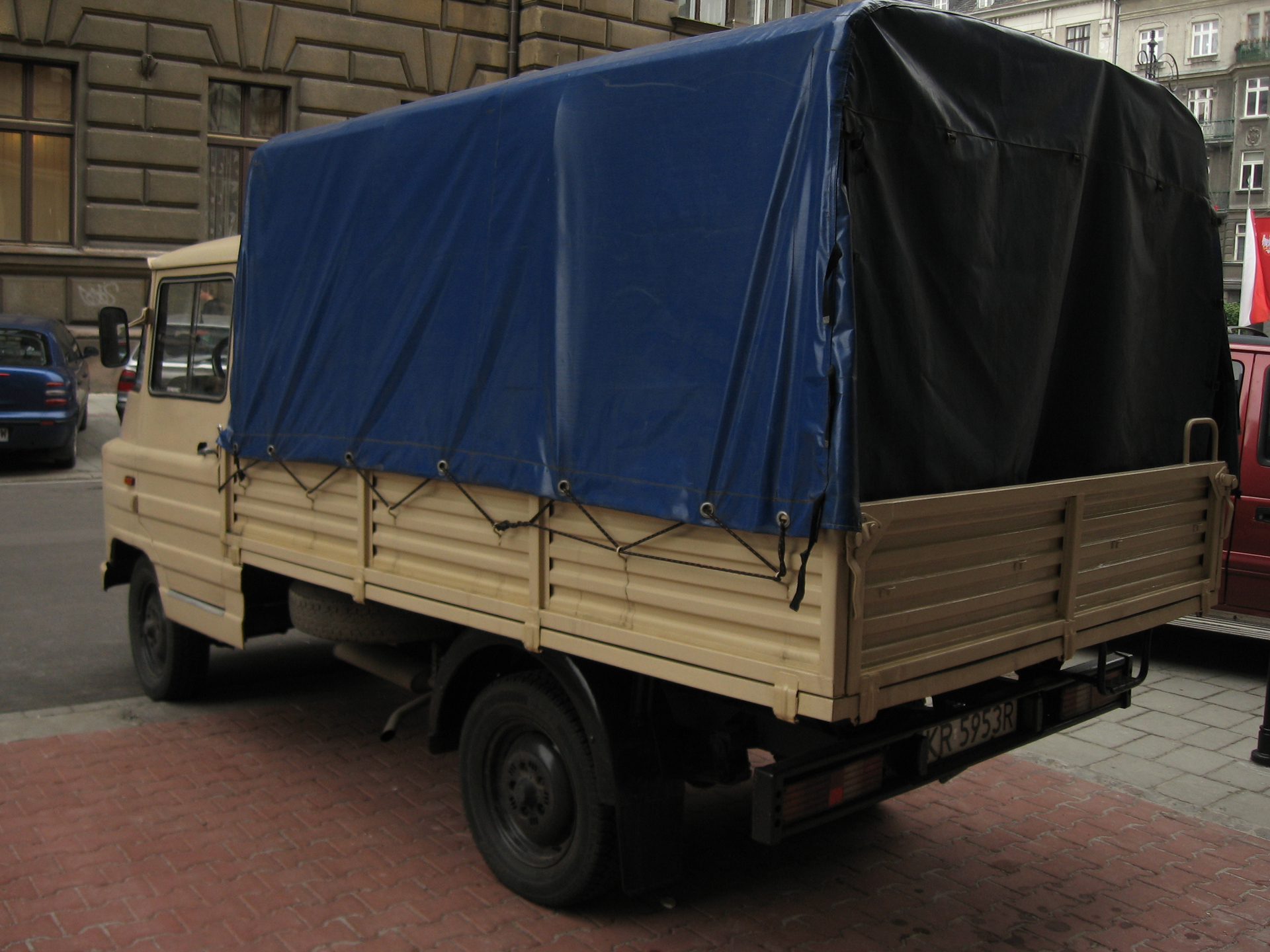

FSC Żuk A-11B
-
Class: LCV
-
Body type: 2-door pickup
-
Transmision: 3-speed automatic
-
Drivetrain: RWD
-
Length: 4330 mm
-
Width: 1820 mm
-
Height: 2220 mm
-
Wheelbase: 2700 mm
-
Front track: 1365 mm
-
Rear track: 1380 mm
-
Tire size: 165/80 R16
-
Rim size: 4.50 x 16
-
Front brake type: drum
-
Rear brake type: drum
-
Front suspension type: independent, based on two wishbones, coil springs, and telescopic shock absorbers
-
Rear suspension type: dependent, based on a rigid drive axle suspended on 6-leaf longitudinal springs
-
Own weight: 1400 kg
-
Number of seats: 2
––––––––––––––––––––––––––––––––––––
▶️ 2. Engine ◀️
-
Model: S-21
-
Produced: from 1966 to 1993
-
Displacement: 2120 cm³
-
Engine type: 4-stroke petrol
-
Engine power: 70 HP (51.5 kW) at 4000 rpm
-
Maximum torque: 150 Nm at 2500 rpm
-
Engine mounting: at the front, longitudinally
-
Position of the camshaft: OHV
-
Number of cylinders: 4
-
Cylinder arrangement: inline
-
Number of valves: 8
-
Compression ratio: 7.5:1
-
Bore x stroke: 82 mm x 100 mm
-
Injection type: Jikov 40 SOP carburetor
-
Ignition type: spark
-
Maximum speed: 105 km/h
-
Engine code: S-21
