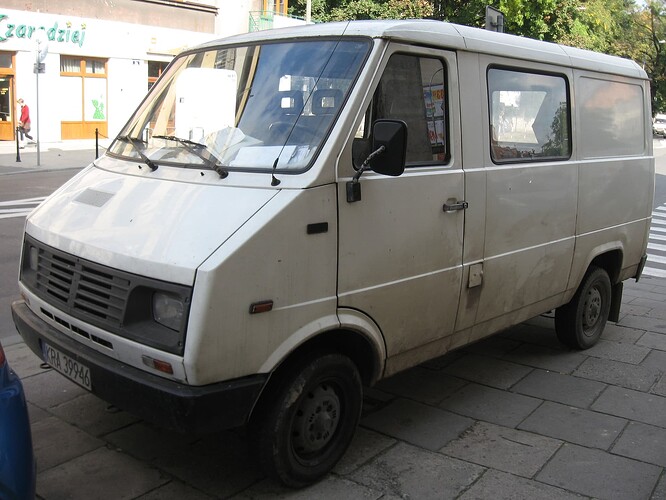

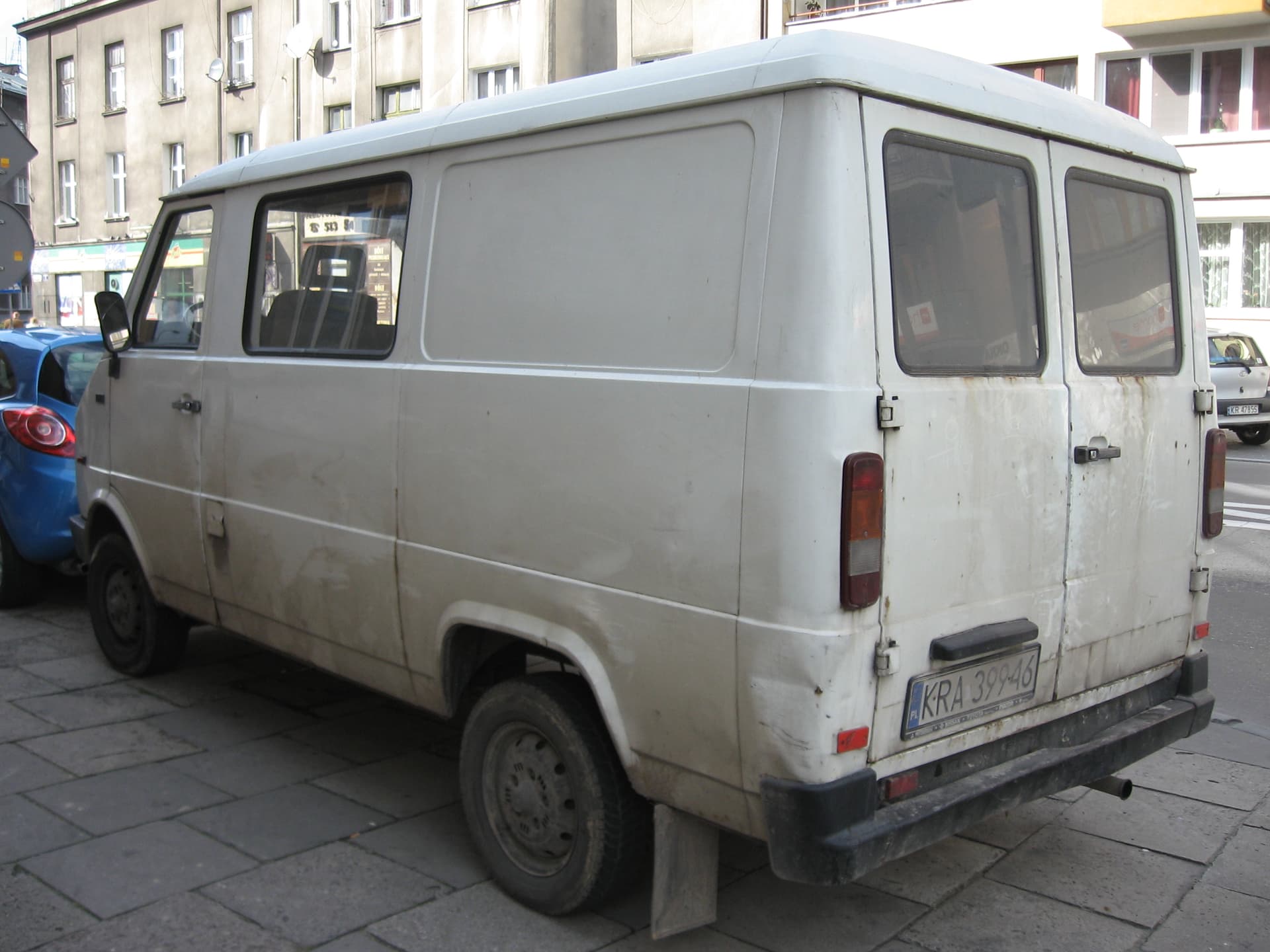

FS Lublin 33 Van
––––––––––––––––––––––––––––––––––––––
▶️ 1. Main ◀️
-
Class:
D Delivery -
Body type:
6-door Van -
Transmision:
5-speed Automatic -
Drivetrain:
RWD -
Length:
4770 mm -
length of the cargo compartment:
2630 mm -
Width:
1940 mm -
Width with side mirrors:
2260 mm -
Height:
2320 mm -
Wheelbase:
2900 mm -
Front wheel track:
1620 mm -
Rear wheel track:
1620 mm -
Front overhang:
780 mm -
Ground clearance:
170 mm -
Rake angle
38.0° -
Departure angle:
26.0° -
Own weight:
2900–3490 kg -
Number of seats:
15
––––––––––––––––––––––––––––––––––––––
▶️ 2. Engine ◀️
-
Model:
2.4 Andoria 4C90 -
Produced:
from 1993 to 1995 -
Displacement:
2417 cm³ -
Engine type:
diesel -
Engine power:
70 HP (51 kW) at 4200 rpm -
Maximum torque:
146 Nm at 2500 rpm -
Engine assembly:
at the front, transversely -
Location of the camshaft:
SOHC (OHC) -
Number of cylinders:
4 -
Cylinder arrangement:
inline -
Compression ratio:
20.6:0 -
Bore x stroke:
90 mm x 95 mm -
Injection type:
indirect -
Injection pump:
sectional -
Maximum speed:
104 km/h
