πŸ‡«πŸ‡· Fiat Scudo MK1 EL Panel-Van before facelift (1996 - 2004)

Suggestions CC2 Vehicle Suggestions
1

Fiat Scudo MK1 EL Panel-Van

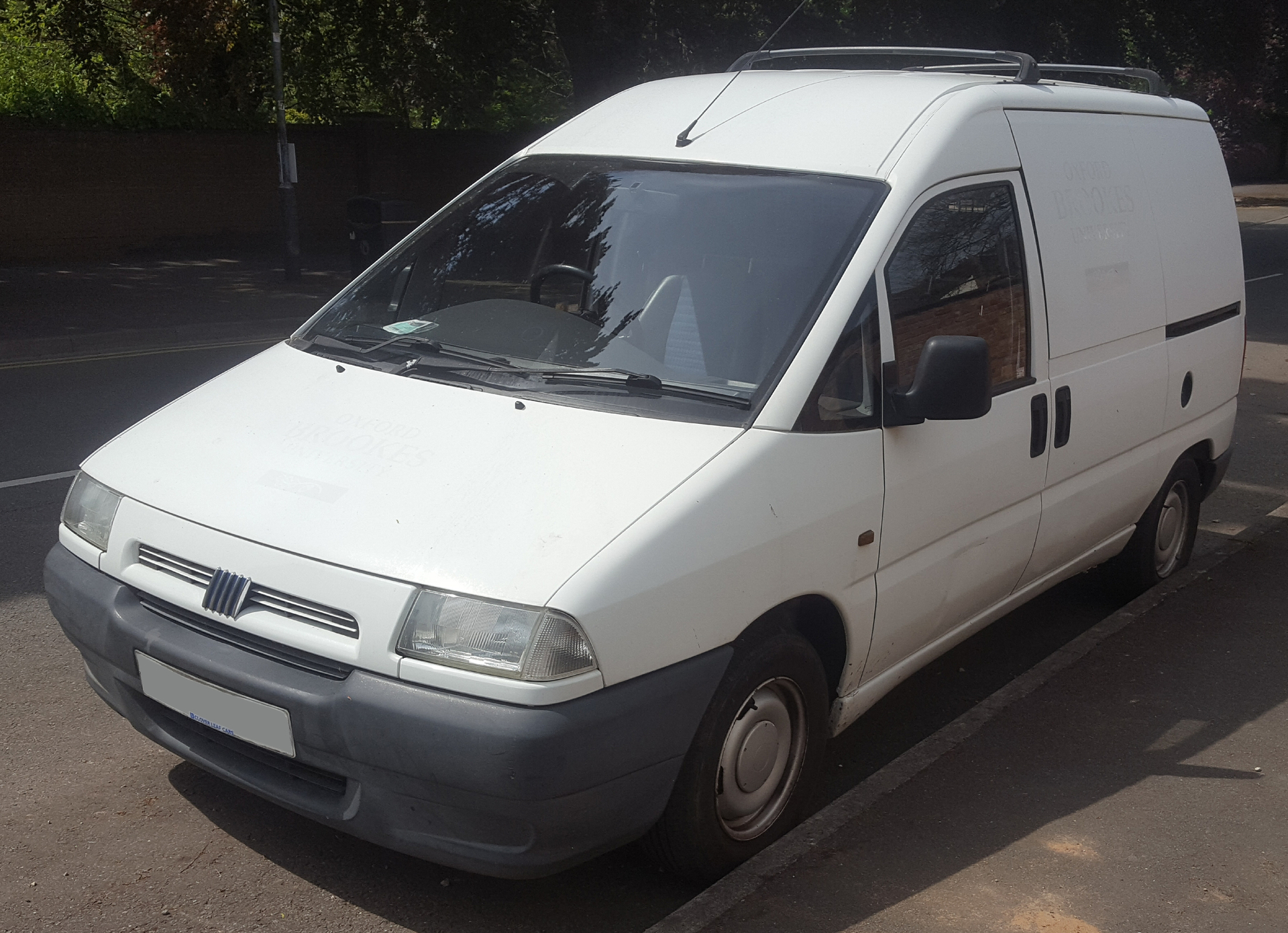

1998_Fiat_Scudo_EL_Diesel_1.9_Front_(1)
1998_Fiat_Scudo_EL_Diesel_1.9_Front_(1)1920Γ—1391 1.74 MB

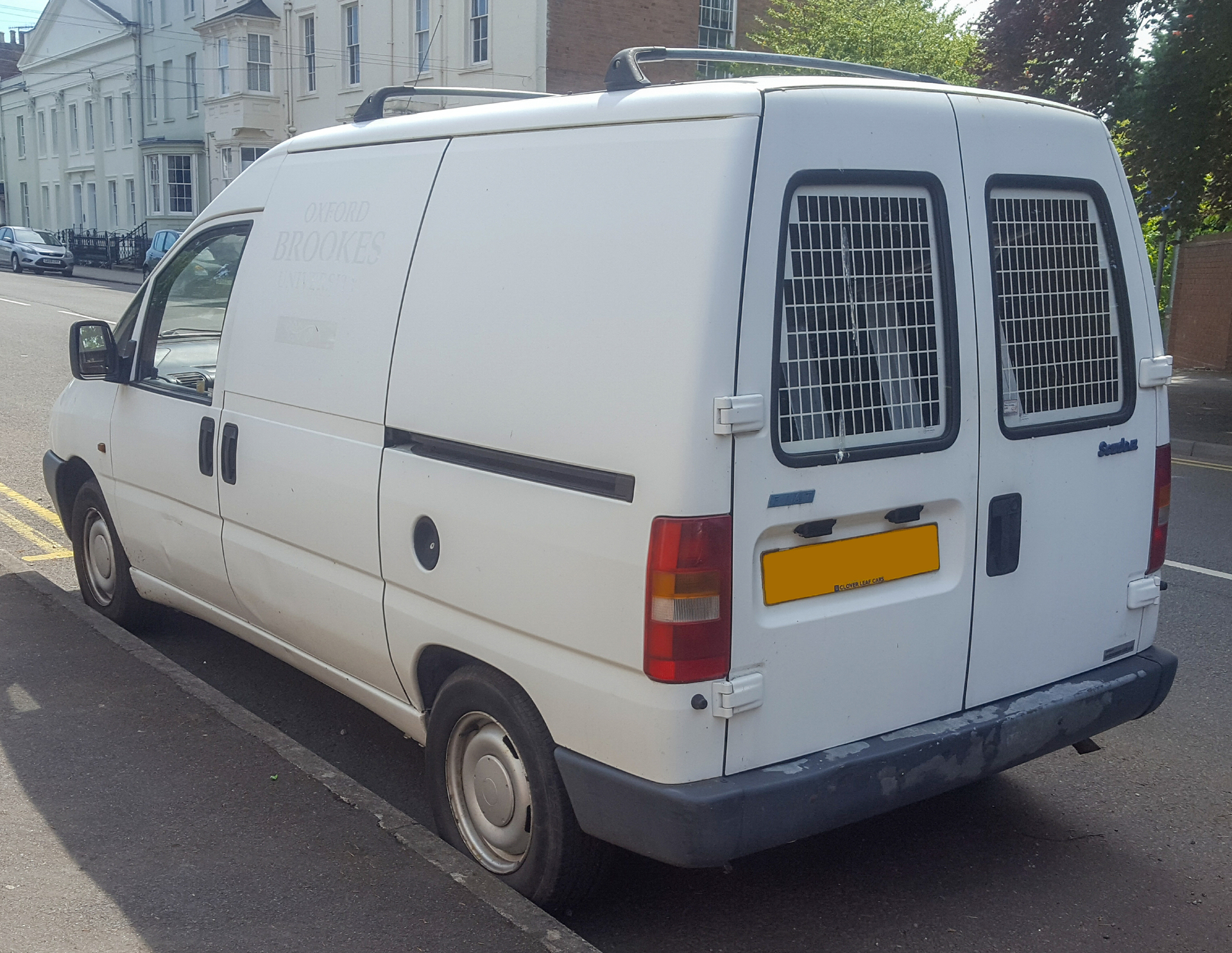

1998_Fiat_Scudo_EL_Diesel_1.9_Rear_(1)
1998_Fiat_Scudo_EL_Diesel_1.9_Rear_(1)1920Γ—1485 2.24 MB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: D LCV

  • Body type: 5-door Van

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Length: 4440 mm

  • Width: 1810 mm

  • Height: 1940 mm

  • Wheelbase: 2824 mm

  • Front wheeltrack: 1540 mm

  • Rear wheeltrack: 1540 mm

  • Front overhang: 846 mm

  • Rear overhang: 770 mm

  • Basic tire size: 195/70R14

  • Optional tire size: 195/65R15

  • Front brake type: disc

  • Rear brake type: drum

  • Own weight: 1395 kg

  • Number of seats: 3

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.9 D

  • Produced from 1996 to 1999

  • Displacement: 1905 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power 69 hp (51 kW) at 4600 rpm

  • Maximum torque: 120 Nm at 2000 rpm

  • Engine mounting: at the front, transversely

  • Camshaft position: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 23.0:1

  • Bore Γ— stroke: 83 mm Γ— 88 mm

  • Ignition type: compression

  • Injection type: indirect

  • Maximum speed: 138 km/h

  • 0 - 100 km/h: 23.3 seconds

  • Engine code: XUD9/Z
