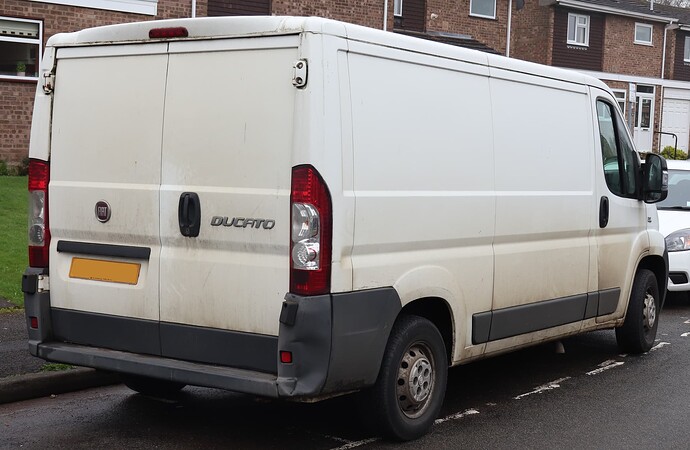

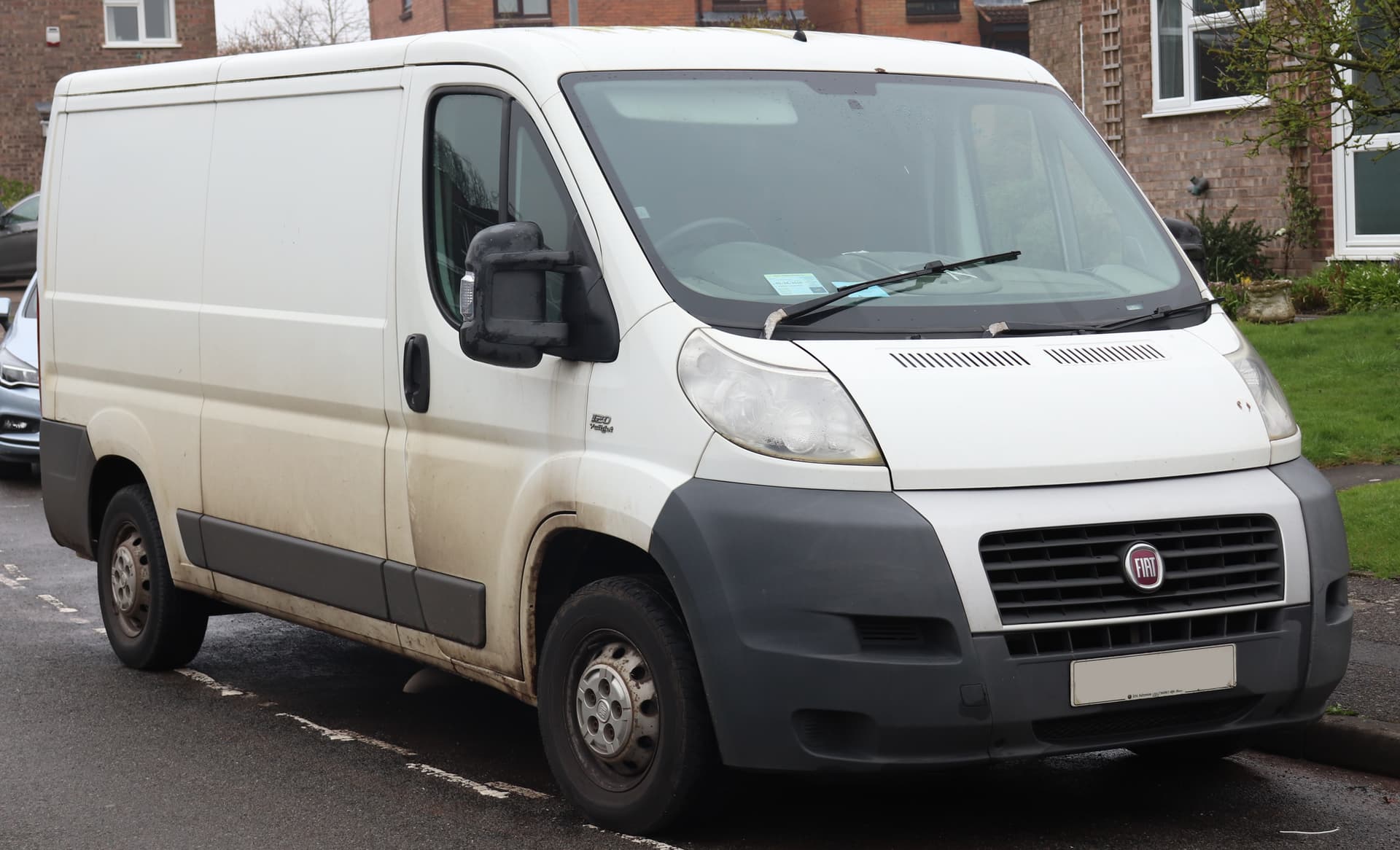

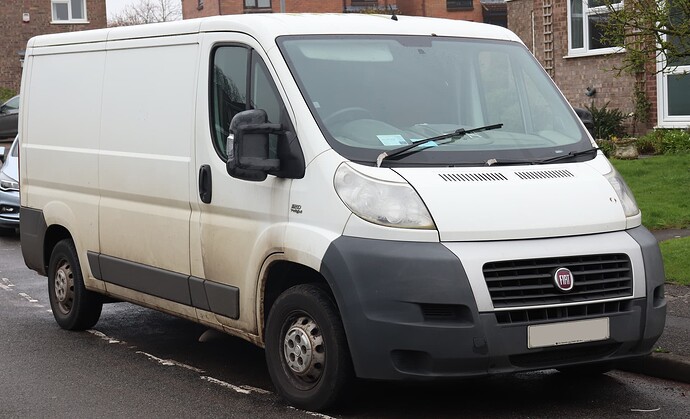

Fiat Ducato MK3 L2H1 Panel Van
–––––––––––––––––––––––––––––––––––
▶️ 1. Main ◀️
-
Class: E LCV
-
Body type: 4-door van
-
Transmision: 6-speed automatic
-
Clutch type: hydraulic
-
Drivetrain: FWD
-
Length: 5413 mm
-
Width: 2050 mm
-
Height: 2254 mm
-
Wheelbase: 3450 mm
-
Front wheeltrack: 1810 mm
-
Rear wheeltrack: 1790 mm
-
Front overhang: 948 mm
-
Rear overhang: 1015 mm
-
Basic tire size: 205/70 R15
-
Optional tire sizes: 215/70 R15; 215/75 R16
-
Front brake type: ventilated disc
-
Rear brake type: ventilated disc
-
Front brake disc diameter: 280 mm
-
Rear brake disc diameter: 280 mm
-
Own weight: 1925 kg
-
Number of seats: 3
–––––––––––––––––––––––––––––––––––
▶️ 2. Engine ◀️
-
Model: 120 Multijet
-
Produced: from 2007 to 2014
-
Displacement: 2286 cm³
-
Engine type: 4-stroke diesel
-
Engine power: 120 hp (88 kW) at 3600 rpm
-
Maximum torque: 320 Nm at 2000 rpm
-
Engine mounting: at the front, transverselly
-
Top-up: intercooler
-
Location of the camshaft: DOHC
-
Number of cylinders: 4
-
Cylinder arrangement: inline
-
Number of valves: 16
-
Compression ratio: 19.0 : 1
-
Ignition type: compression
-
Injection type: direct common rail
-
Maximum speed: 155 km/h
-
0 - 100 km/h: 19.4 seconds
-
Engine code: F1AE0481D
