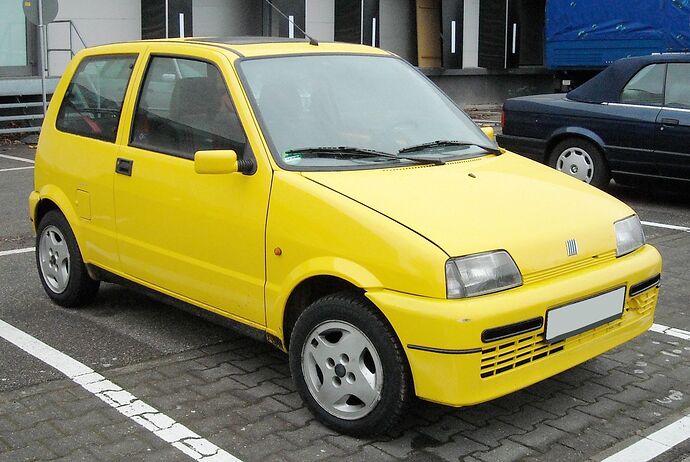

FSM Fiat Cinquecento Sporting
1. Main
-
Class:
A -
Body type:
3-door Hatchback -
Transmision:
5-speed automatic -
FWD
-
Length:
3227 mm -
Width:
1487 mm -
Height:
1435 mm -
Wheelbase:
2200 mm -
Track width - front:
1264 mm -
Track width - rear:
1257 mm -
Front overhang:
570 mm -
Rear overhang:
457 mm -
Ground clearance:
140 mm -
Front seatback distance from steering wheel:
529 mm -
Steering column length:
575 mm -
Distance from front seat to roof:
961 mm -
Front seat length:
475 mm -
Distance between front and rear seats:
583 mm -
Distance from the rear seat to the roof:
926 mm -
Rear seat length:
485 mm -
Width above the armrests at the front:
1243 mm -
Width above the armrests at the rear:
1312 mm -
Basic tires:
155/65 R13 -
Optional tires:
145/70 R13; 165/55 R14; 195/45 R15 -
Type of brakes (front):
disc -
Type of brakes (rear):
drum -
Own weight:
750 kg -
Number of seats:
5 -
Euro NCAP test:
1/5
2. Engine
-
Model:
1.1 Sporting -
Produced:
from 1994 to 1998 -
Displacement:
1108 cmΒ³ -
Engine type:
petrol -
Engine power:
54 HP (40 kW) at 5,000 rpm -
Maximum torque:
86 Nm at 3250 rpm -
Engine assembly:
at the front, transversely -
Location of the camshaft:
SOHC (OHC) -
Number of cylinders:
4 -
Cylinder arrangement:
inline -
Number of valves:
8 -
Compression ratio:
10.0: 1 -
Bore Γ stroke:
70 Γ 72 mm -
Ignition:
spark -
Injection type:
single point (SPI, CPI) -
Maximum speed:
150 km / h -
(0 - 100km / h):
13.8 s
