πŸ‡΅πŸ‡± Daewoo Lublin II Pick-up (1997 - 2001)

Suggestions CC2 Vehicle Suggestions
,
1

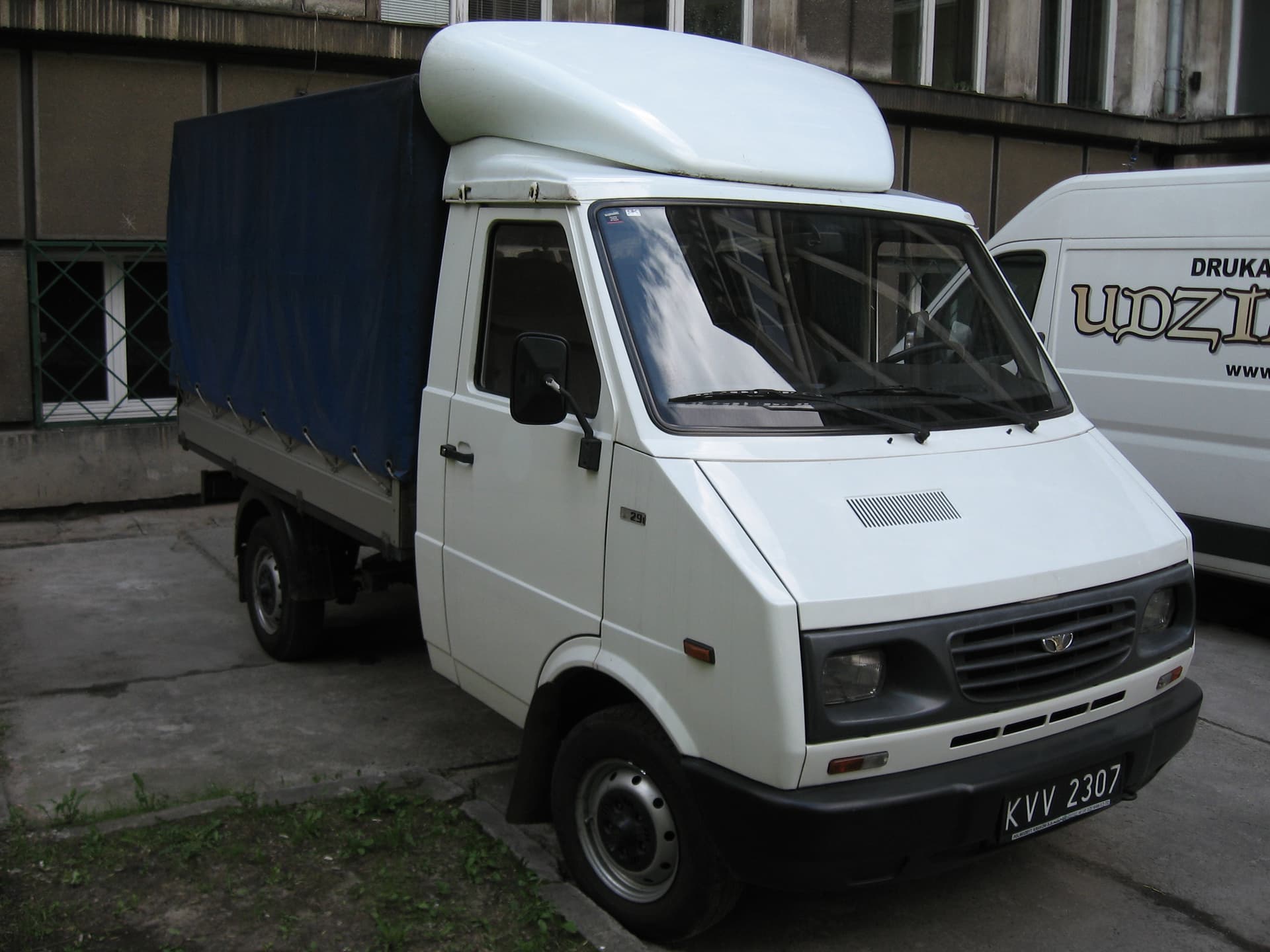

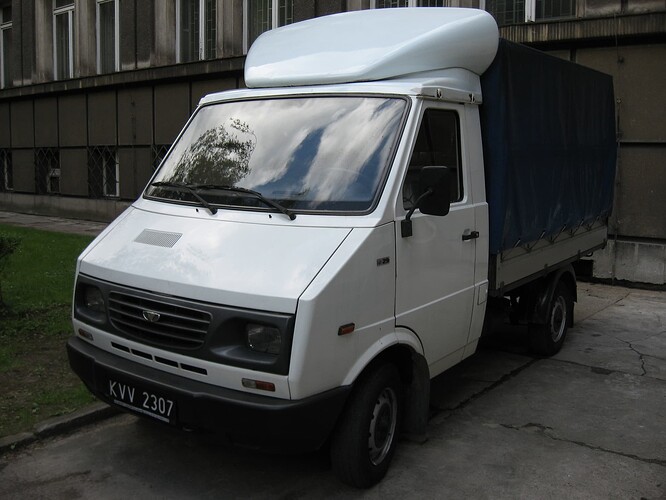

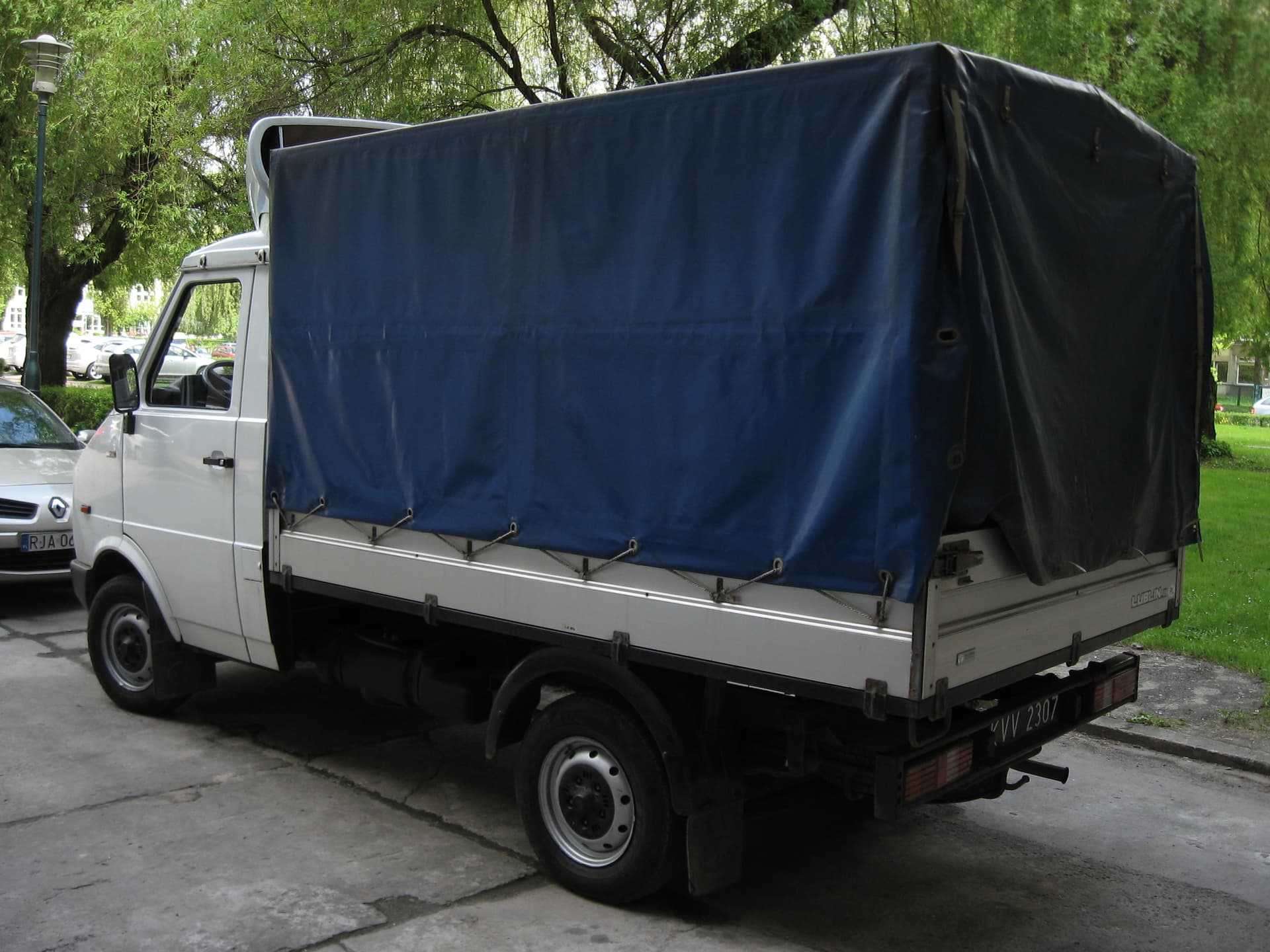

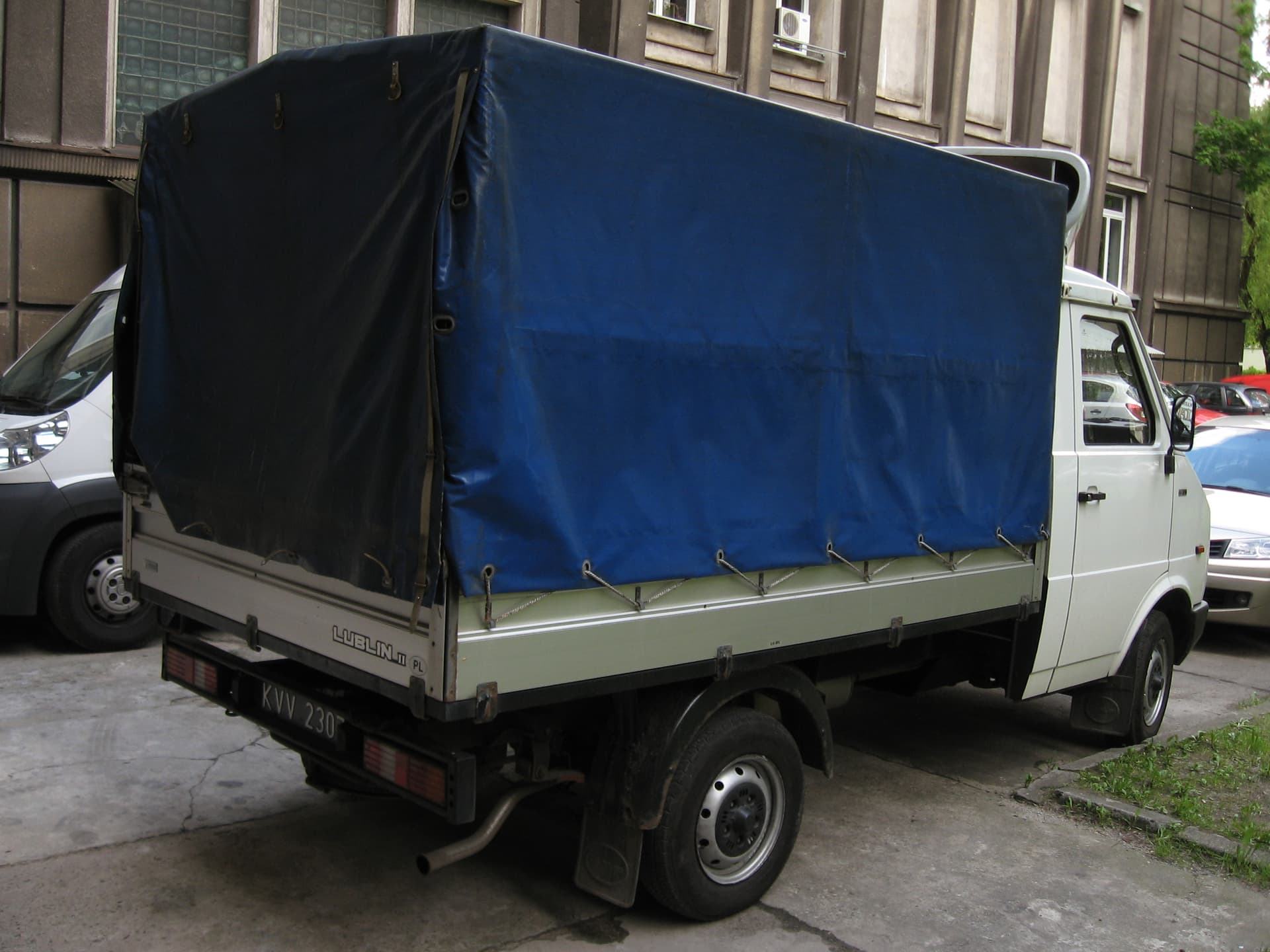

Daewoo Lublin II Pick-up

Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University_(2)
Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University_(2)1920Γ—1440 167 KB

Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University_(3)
Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University_(3)1920Γ—1440 226 KB

Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University
Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University1920Γ—1440 153 KB

Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University_(1)
Daewoo_Lubli_II_at_the_Chemistry_Department_of_Jagiellonian_University_(1)1920Γ—1440 178 KB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: D LCV

  • Body type: 2-door pickup

  • Transmision: 4-speed automatic

  • Drivetrain: RWD

  • Length: 4870 mm

  • Width: 2260 mm

  • Height: 2250 mm

  • Wheelbase: 2900 mm

  • Front wheeltrack: 1680 mm

  • Rear wheeltrack: 1680 mm

  • Front overhang: 780 mm

  • Steering system type: Rack and pinion with hydraulic power assist

  • Tire size: 205/75 R16

  • Front brake type: Disc

  • Rear brake type: Drum

  • Own weight: 2900 kg

  • Number of seats: 3

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 2.4 Andoria

  • Produced: from 1996 to 1999

  • Displacement: 2417 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power: 90 hp (66 kW) at 4100 rpm

  • Maximum torque: 195 Nm at 2200 rpm

  • Engine mounting: at the front, transverselly

  • Top-up: turbocharger

  • Location of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 20.6:1

  • Bore x stroke: 90 mm x 95 mm

  • Injection type: indirect

  • Ignition type: compression

  • Maximum speed: 120 km/h

  • 0 - 100 km/h: No official info

  • Engine code: 4CT90-1BE
