πŸ‡΅πŸ‡± Daewoo-FSO Polonez Truck Plus ST (1997 - 2003)

Suggestions CC2 Vehicle Suggestions
, ,
1

Daewoo-FSO Polonez Truck Plus ST

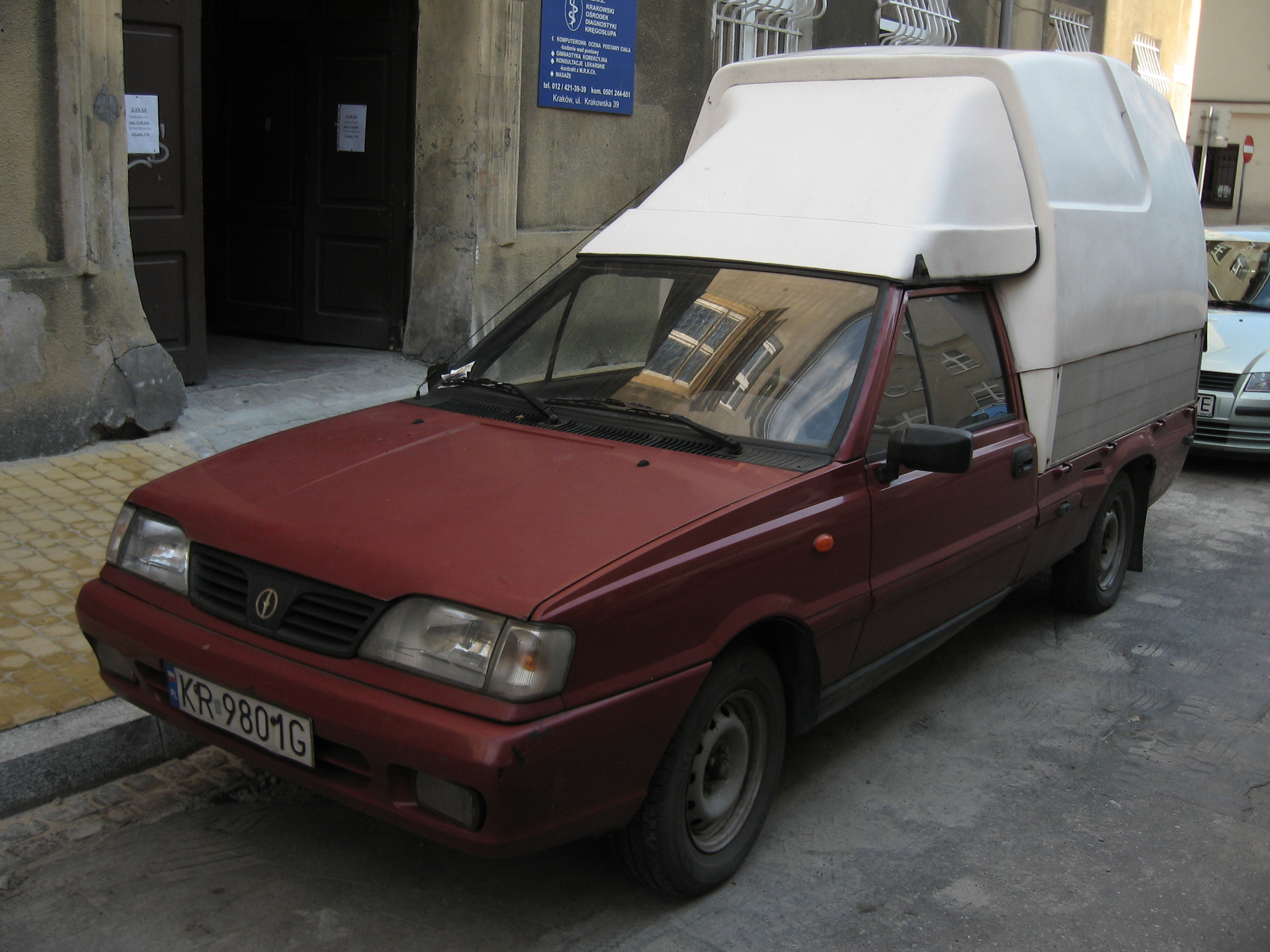

Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D_(1)
Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D_(1)1920Γ—1440 2.07 MB

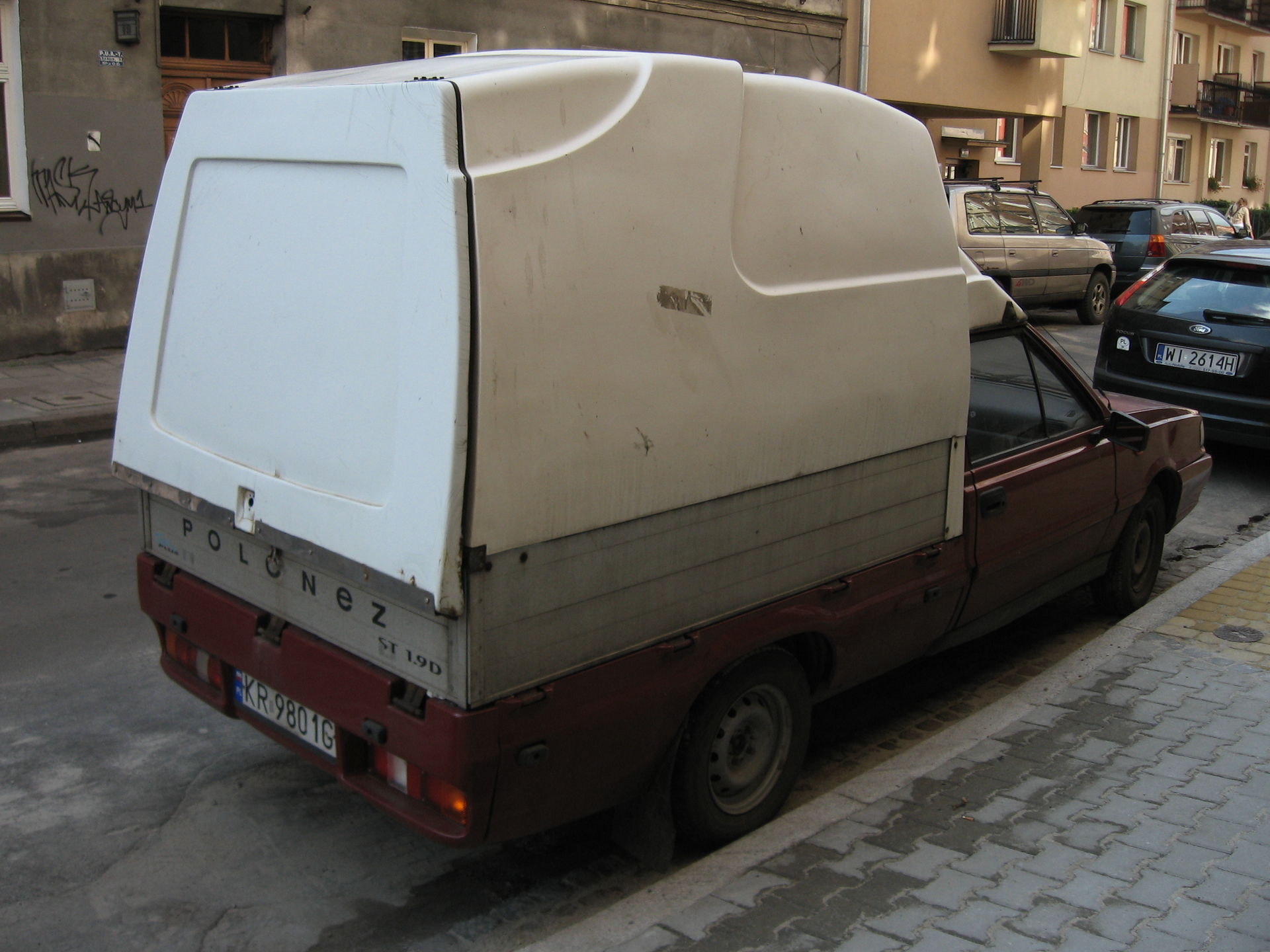

Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D_(3)
Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D_(3)1920Γ—1440 2.01 MB

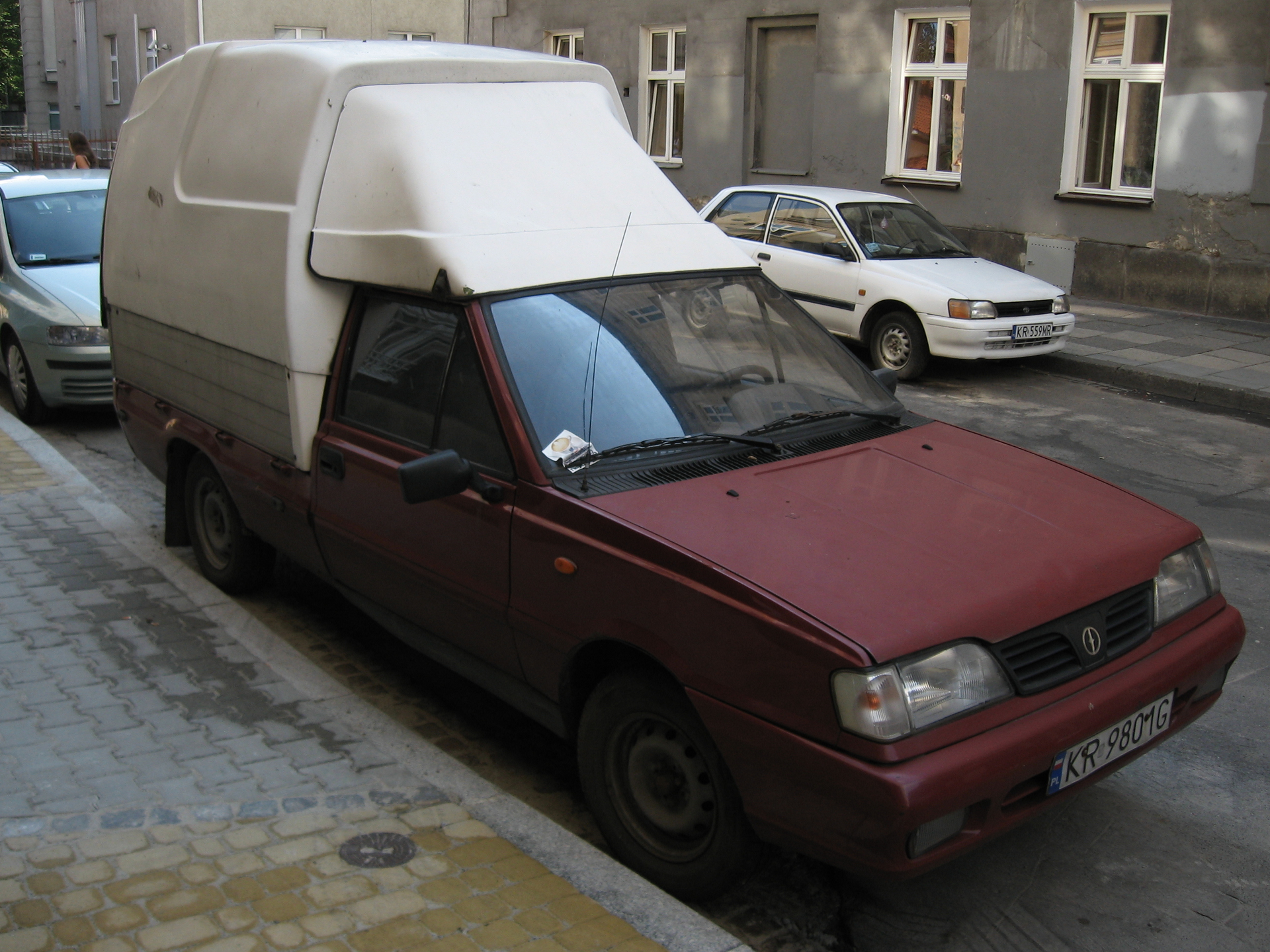

Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D_(2)
Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D_(2)1920Γ—1440 2.06 MB

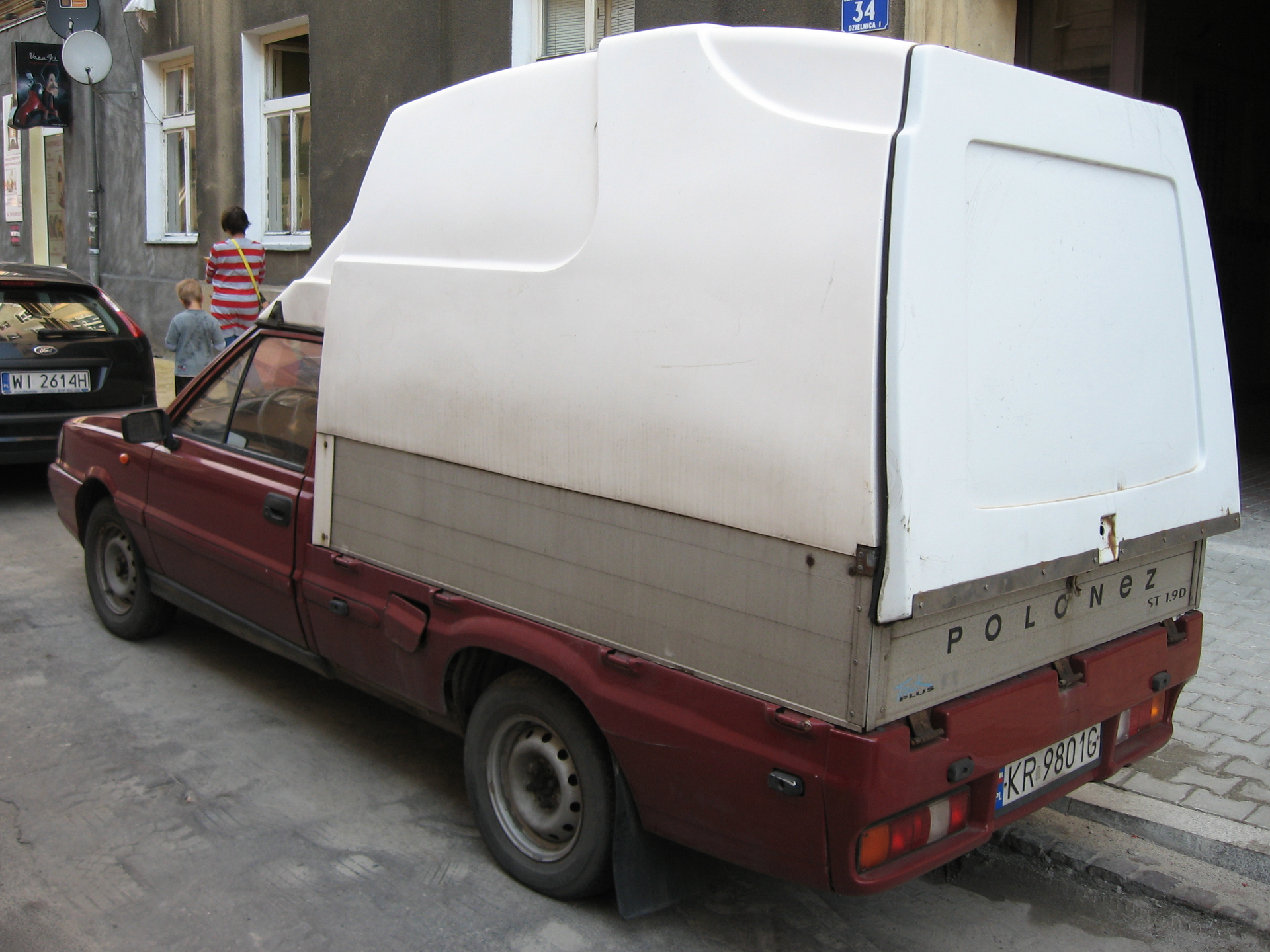

Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D
Daewoo-FSO_Polonez_Truck_Plus_ST_1.9_D1920Γ—1440 2.08 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: LCV

  • Body type: 2-door pickup

  • Transmision: 5-speed automatic

  • Drivetrain: RWD

  • Length: 4770 mm

  • Width: 1650 mm

  • Height: 1465 mm

  • Wheelbase: 2816 mm

  • Front wheeltrack: 1375 mm

  • Rear wheeltrack: 1352 mm

  • Front overhang: 847 mm

  • Rear overhang: 1026 mm

  • Ground clearance: 180 mm

  • Steering system type: Rack and pinion with hydraulic power assist

  • Tire size: 175 R14C

  • Rim size: 5J x 14

  • Front brake type: disc

  • Rear brake type: drum

  • Front suspension type: independent, double wishbones with coil springs and anti-roll bar

  • Rear suspension type: dependent, rigid drive axle, supported by 6-leaf springs

  • Shock absorber type: Hydraulic

  • Own weight: 1195 kg

  • Number of seats: 2

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.9 D

  • Produced: from 1997 to 2003

  • Displacement: 1905 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power: 70 hp (51 kW) at 4600 rpm

  • Maximum torque: 120 Nm at 2000 rpm

  • Engine mounting: at the front, longitudinally

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 23:1

  • Bore x stroke: 83 mm x 88 mm

  • Injection type: indirect

  • Ignition type: compression

  • Maximum speed: 130 km/h

  • 0 - 100 km/h: 19.0 seconds

  • Engine code: XUD9A
