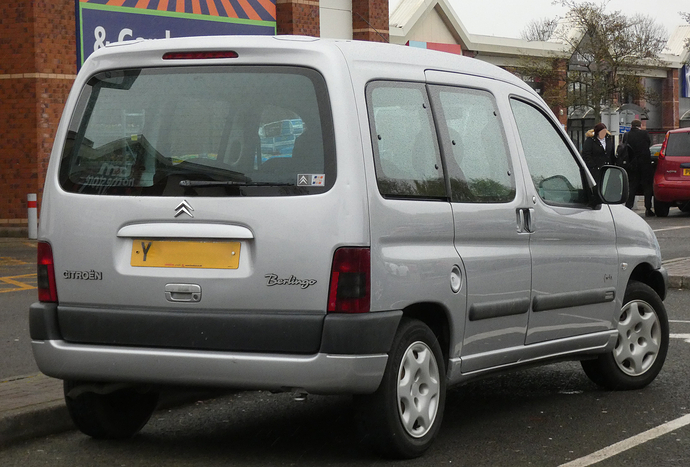

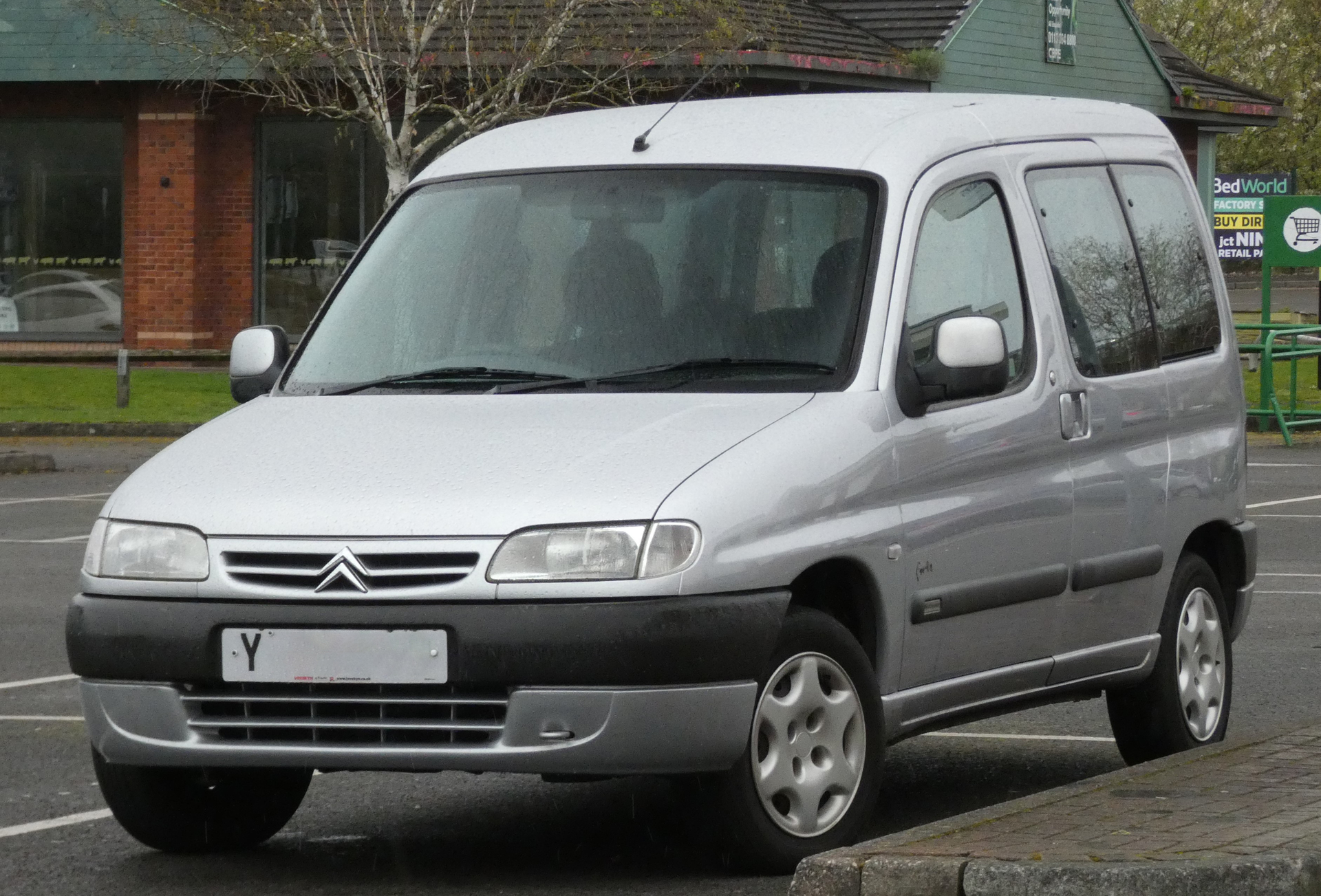

🇫🇷 Citroën Berlingo MK1 Multispace Forte Van before facelift (1996 - 2002)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

Citroën Berlingo MK1 Multispace Forte

––––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: C MPV

• Body type: 5-door Van

• Transmision: 5-speed automatic

• Drivetrain: FWD

• Turning diameter: 10.4 m

• Turning radius: 5.2 m

• Length: 4137 mm

• Width: 1724 mm

• Height: 1810 mm

• Wheelbase: 2693 mm

• Front wheeltrack: 1420 mm

• Rear wheeltrack: 1440 mm

• Front overhang: 836 mm

• Rear overhang: 608 mm

• Ground clearance: 145 mm

• Steering system type: Rack and pinion with hydraulic power assist

• Basic tire size: 175/70 R14

• Optional tire size: 175/65 R14

• Rim size: 5.5J x 14

• Front brake type: disc

• Rear brake type: drum

• Front suspension type: independent, McPherson struts, wishbones, springs Coil springs, telescopic shock absorbers, and anti-roll bar

• Rear suspension type: Semi-independent, torsion beam with torsion bars

• Own weight: 1240 kg

• Number of seats: 5

• Euro NCAP test rating: 4/5

––––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: 1.9 D

• Produced: from 1999 to 2005

• Displacement: 1868 cm³

• Engine type: 4-stroke diesel

• Engine power: 68 HP (51 kW) at 4600 rpm

• Maximum torque: 128 Nm at 2500 rpm

• Engine mounting: at the front, transverselly

• Position of the camshaft: SOHC

• Number of cylinders: 4

• Cylinder arrangement: inline

• Number of valves: 8

• Compression ratio: 23.0 : 1

• Bore × stroke: 82.2 mm × 88 mm

• Injection type: indirect

• Ignition type: compression

• Maximum speed: 142 km/h

• 0 - 100 km/h: 19.9 seconds

• Engine code: DW8
