NAME: 1936 Bugatti Type 57G, nicknamed “Tank”.
Those of you who stumble upon obscure cars from time to time will know this thing’s story, but basically, it’s a model that Bugatti literally buried underground from the Germans during the cough cough so they wouldn’t commit theft on the design! It also raced somewhere i forgor.
PICTURES:

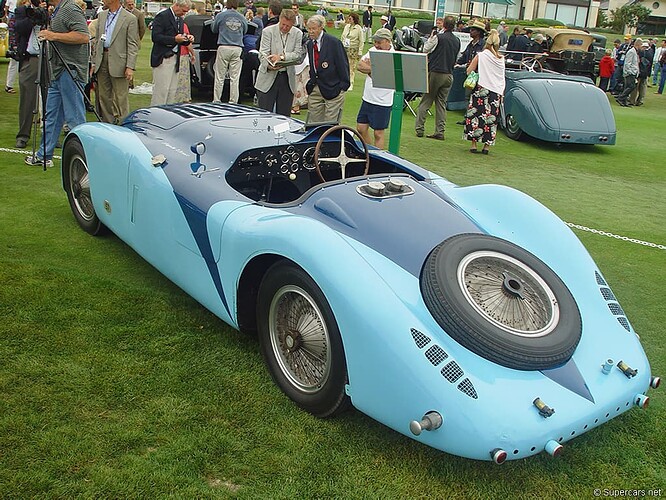

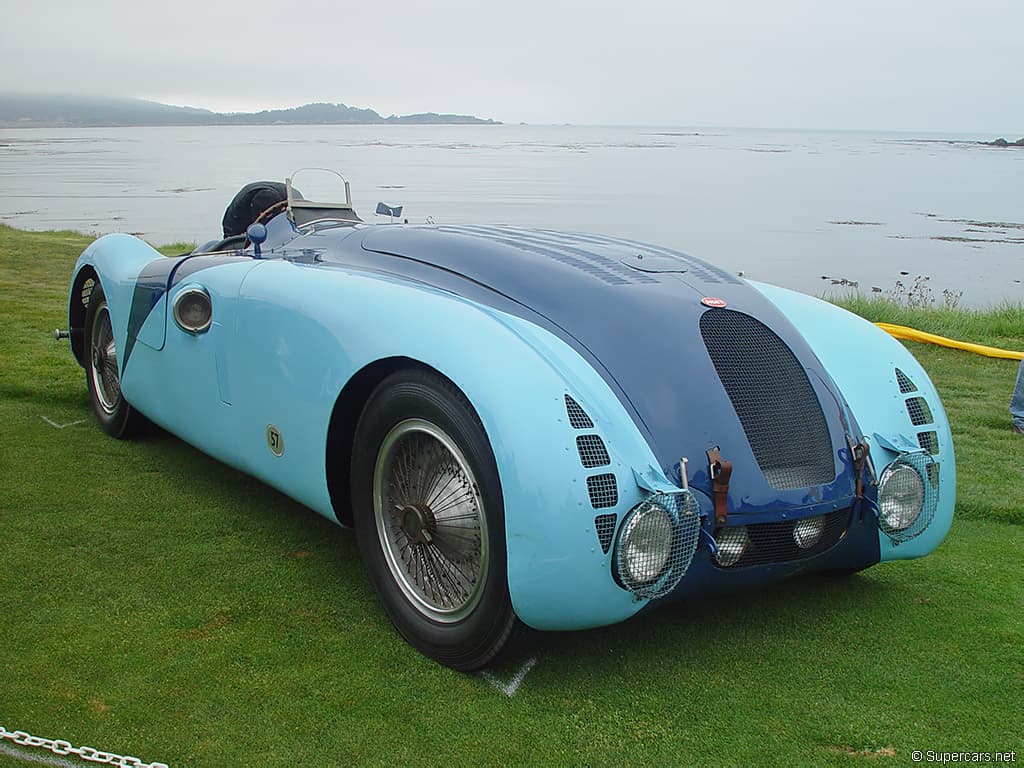

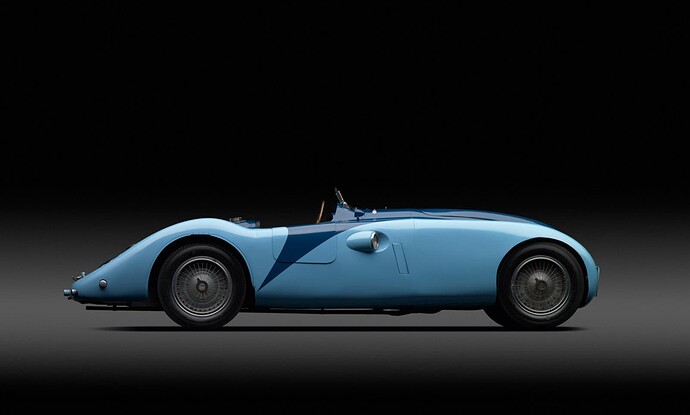

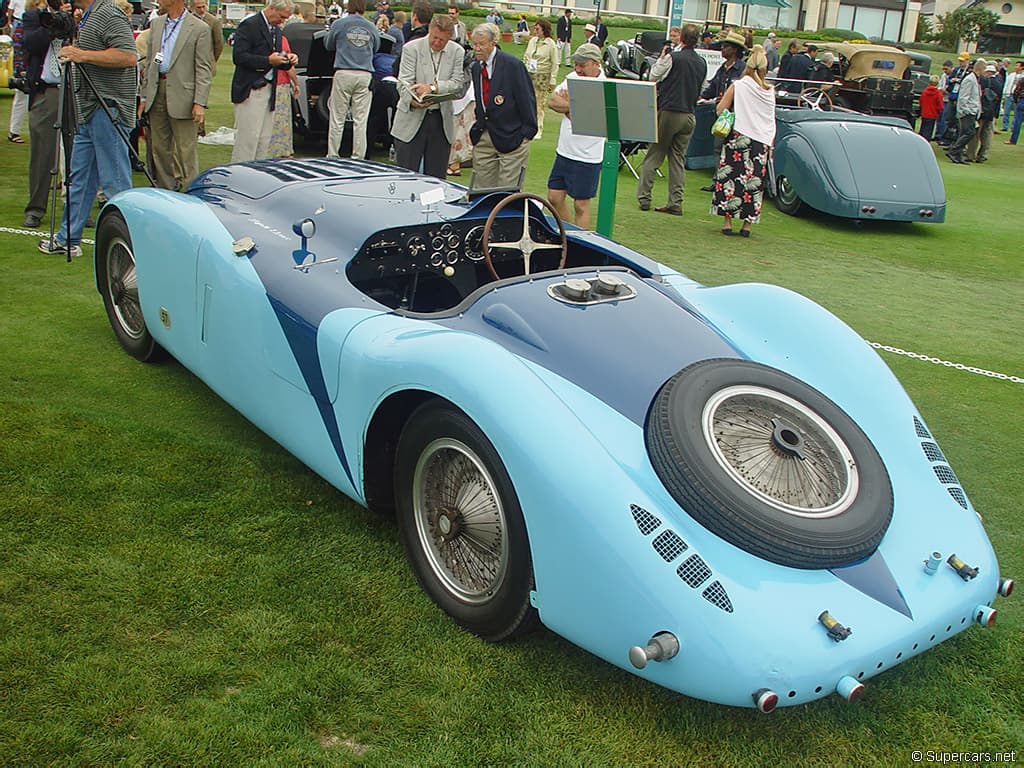

Exterior

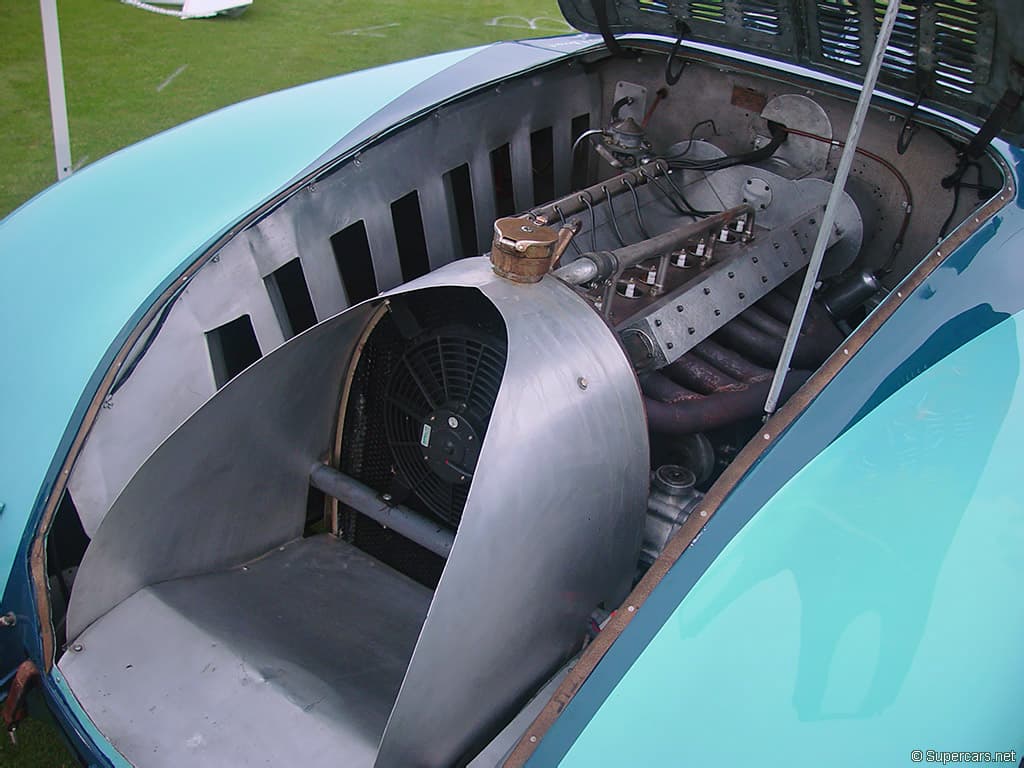

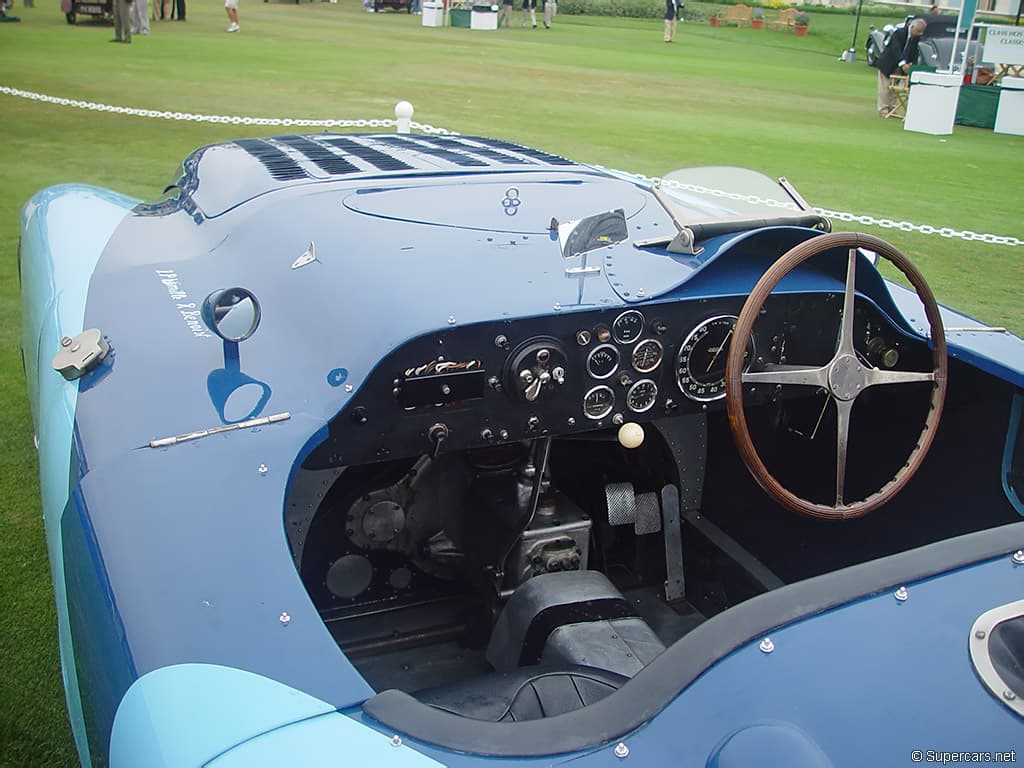

Interior/Engine

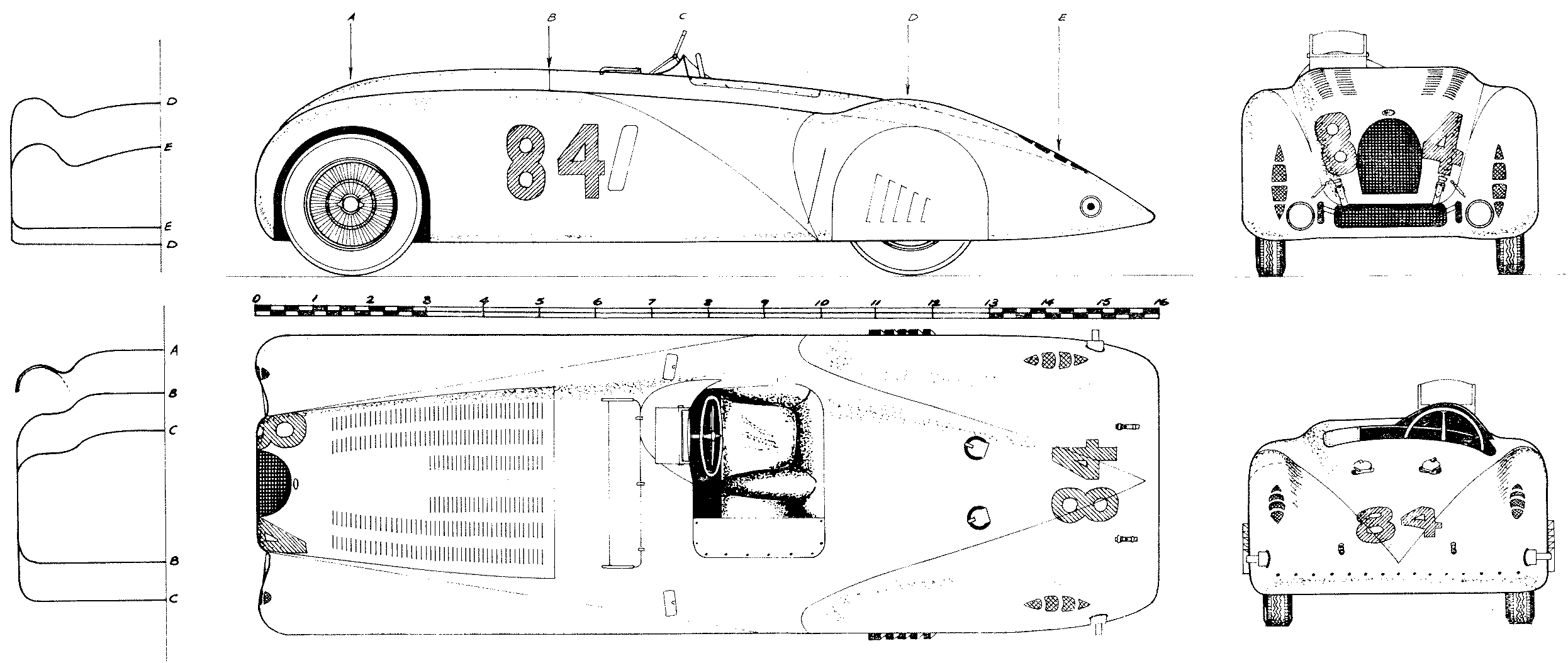

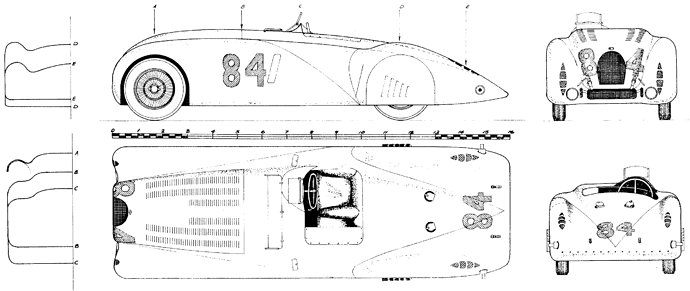

Blueprint (ignore the racing numbers)
SPECS
| Thing | Detail |
|---|---|
| engine | Inline-8 |
| position | Front Longitudinal |
| aspiration | Natural |
| valvetrain | DOHC, 2 Valves per Cyl |
| displacement | 3257 cc / 198.8 in³ |
| bore | 72 mm / 2.83 in |
| stroke | 100 mm / 3.94 in |
| power | 149.1 kw / 200 bhp |
| specific output | 61.41 bhp per litre |
| bhp/weight | 158.1 bhp per tonne |
| body / frame | Aluminum over T57S Steel Frame |
| driven wheels | RWD |
| front tires | 28×5.5 Bugatti Racing Wheels |
| rear tires | 28×5.5 Bugatti Racing Wheels |
| front brakes | Drums |
| rear brakes | Drums |
| curb weight | 1265 kg / 2789 lbs |
| wheelbase | 2979 mm / 117.3 in |
| front track | 1349 mm / 53.1 in |
| rear track | 1349 mm / 53.1 in |
| transmission | 4-Speed Manua |
(i had to)
