BMW series 5 MK4 E39 Touring (1995 - 2004) [[Suggestion Remake]]

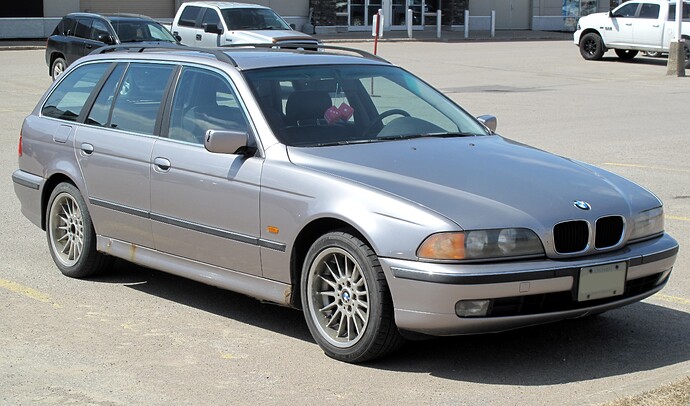

BMW series 5 MK4 E39 Touring



===============================================

▶️ 1. Main ◀️

  • Class:
    E

  • Body type:
    5-door Wagon

  • Transmision:
    5-speed Automatic

  • RWD

  • Length:
    4805 mm

  • Width:
    1800 mm

  • Height:
    1440 mm

  • Wheelbase:
    2830 mm

  • Track width - front:
    1512 mm

  • Track width - rear:
    1522 mm

  • Front overhang:
    861 mm

  • Rear overhang:
    1114 mm

  • Clearance:
    138 mm

  • Distance from the front seat to the roof:
    985 mm

  • Distance from rear seat to the roof:
    981 mm

  • Width above armrests at the front:
    1442 mm

  • Width above the armrests in the back:
    1422 mm

  • Width at the height of the armrests at the front:
    1472 mm

  • Width at the height of the armrests in the back:
    1488 mm

  • Basic tires:
    205/65R15

  • Optional tires:
    225/55R16; 235/40R18; 235/45R17; 245/35R19

  • Type of brakes (front):
    ventilated discs

  • Type of brakes (rear):
    disc

  • Own weight:
    from 1485 kg

  • Number of seats:
    5

===============================================

▶️ 2. Engine ◀️

  • Model:
    525 tds

  • Produced:
    from 1996 to 2004

  • Displacement:
    2498 cm³

  • Engine type:
    diesel

  • Engine power:
    143 hp (105 kW) at 4600 rpm

  • Maximum Torque:
    280 Nm at 2200 rpm

  • Engine assembly:
    at the front, longitudinally

  • Top up:
    turbochargers

  • Location of the camshaft:
    SOHC (OHC)

  • Number of cylinders:
    6

  • Cylinder arrangement:
    inline

  • Number of valves:
    12

  • Compression ratio:
    22.0:1

  • Bore × stroke:
    80.00 mm x 82.80 mm

  • Maximum speed:
    210 km/h

  • (0 - 100km/h):
    10.7 seconds

  • Engine code:
    M51D25TUOL
