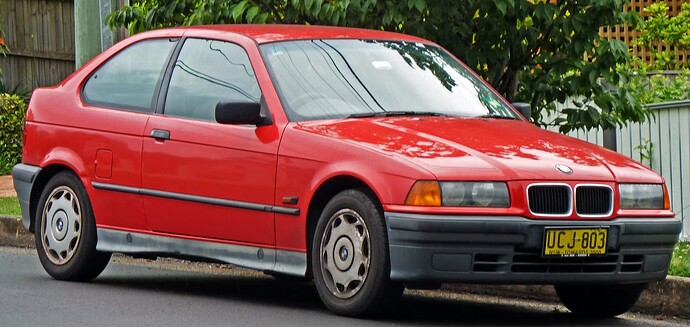

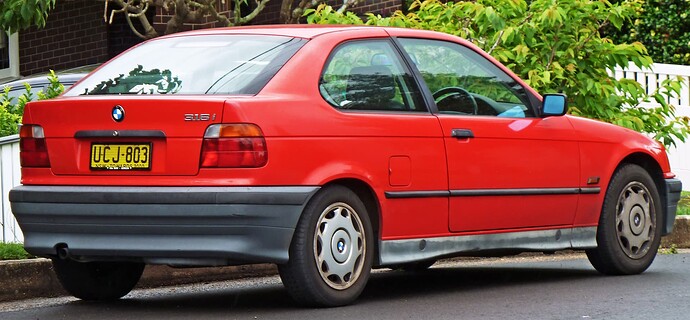

🇩🇪 BMW Series 3 MK3 E36 Compact before facelift (1993 - 1997)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

BMW Series 3 MK3 E36 Compact

–––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: C

• Body type: 3-door hatchback

• Transmision: 5-speed automatic

• Drivetrain: RWD

• Turning diameter: 10.2 m

• Turning radius: 5.1 m

• Length: 4210 mm

• Width: 1698 mm

• Height: 1393 mm

• Wheelbase: 2700 mm

• Front wheeltrack: 1420 mm

• Rear wheeltrack: 1425 mm

• Ground clearance: 125 mm

• Steering system type: Rack and pinion with hydraulic power assist:

• Basic tire size: 185/65 R15

• Optional tire sizes: 205/55 R16; 205/60 R15; 225/35 R19; 225/40 R18; 225/45 R17

• Front brake type: disc

• Rear brake type: drum

• Own weight: 1140 kg

• Number of seats: 5

• Euro NCAP test rating: 2/5

–––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: 316i

• Produced: from 1993 to 1998

• Displacement: 1596 cm³

• Engine type: 4-stroke petrol

• Engine power: 102 hp (75 kW) at 5500 rpm

• Maximum torque: 150 Nm at 3900 rpm

• Engine assembly: at the front, longitudinally

• Location of the camshaft: SOHC (OHC)

• Number of cylinders: 4

• Cylinder arrangement: inline

• Number of valves: 8

• Compression ratio: 9.7:1

• Bore x stroke: 84 mm x 72 mm

• Injection type: multipoint (MPI)

• Maximum speed: 188 km/h

• 0 - 100 km/h: 12.3 seconds

• Engine code: M43B16
