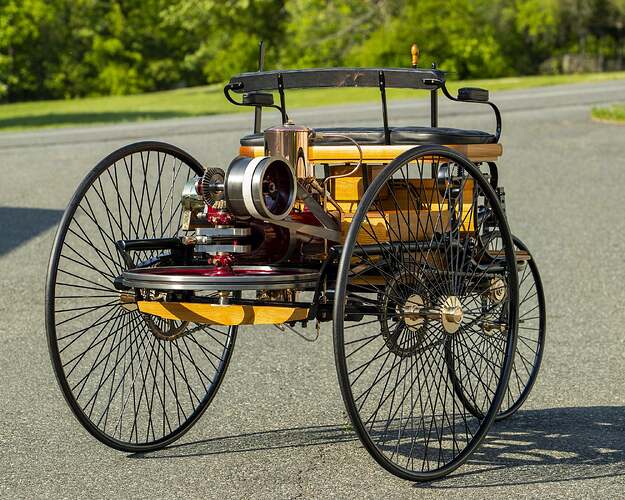

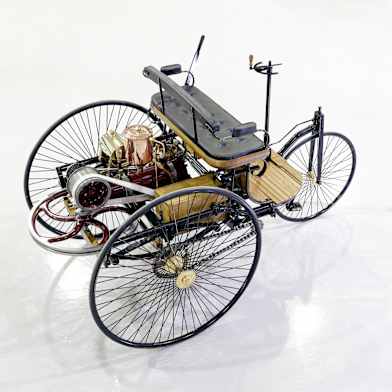

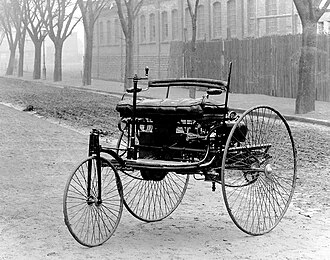

Widely regarded as the first practical modern automobile, the Benz Patent-Motorwagen represents the pivotal transition from horse-drawn carriages to self-propelled mechanical transport. It was not merely a carriage with an engine attached, but a ground-up engineering feat designed to integrate a gasoline-powered internal combustion engine into a lightweight, three-wheeled chassis.
=========================================================================
Technical Specifications:
-
Engine Type: Rear-mounted, horizontal single-cylinder four-stroke
-
Displacement: 954 cc
-
Power Output: Approximately 0.75 hp @ 400 rpm
-
Top Speed: 16 km/h (10 mph)
-
Transmission: Single-speed with leather belt drive and differential
-
Fuel System: Surface carburetor (evaporative)
-
Cooling: Evaporative (water)
-
Chassis: Steel tubing with wooden panels
=========================================================================
Design & Mechanics:
The vehicle utilized a three-wheel configuration because Karl Benz was dissatisfied with the steering systems available for four-wheeled vehicles at the time. The front wheel was steered via a toothed rack connected to a vertical tiller.

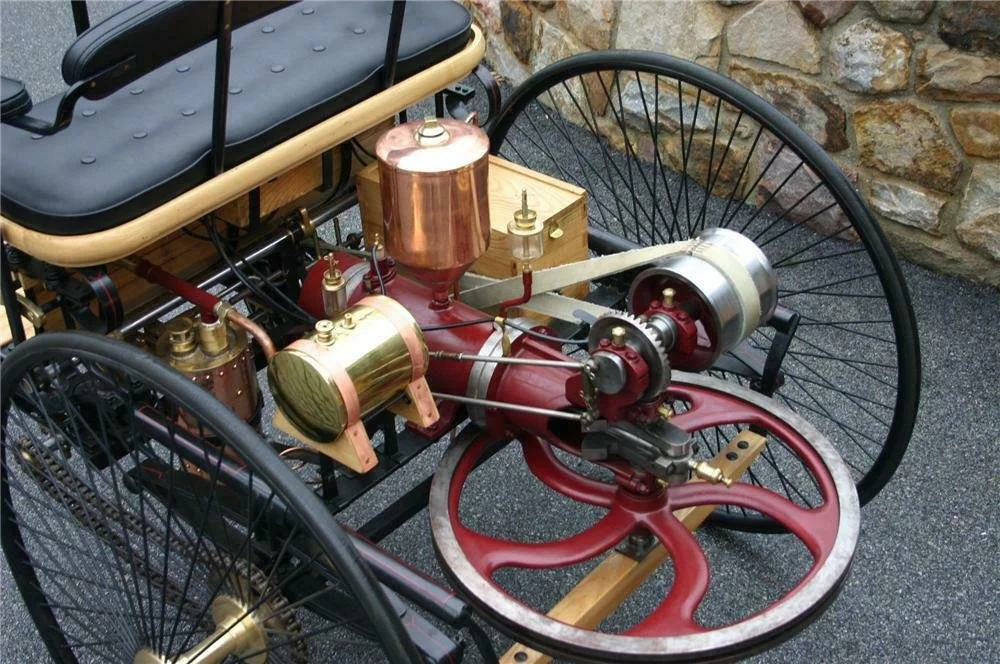

The heart of the machine was its massive, horizontal flywheel. This was a necessity to maintain the momentum of the single-cylinder engine between power strokes. Starting the vehicle required a vigorous manual spin of this flywheel—a ritual that is as iconic as it is labor-intensive.
=========================================================================
The “World’s First” Innovations:
-
Electric Ignition: It featured a high-voltage electrical ignition system with a spark plug, a concept that remains the standard today.
-
Differential Gear: To allow the rear wheels to rotate at different speeds during turns, Benz implemented a dedicated differential.
-
Surface Carburetor: Since modern fuel injection didn’t exist, the engine drew air over a pool of ligroin (a volatile petroleum spirit), saturating the air with fuel vapors for combustion.
=========================================================================
