2011 Hyundai i40 Tourer

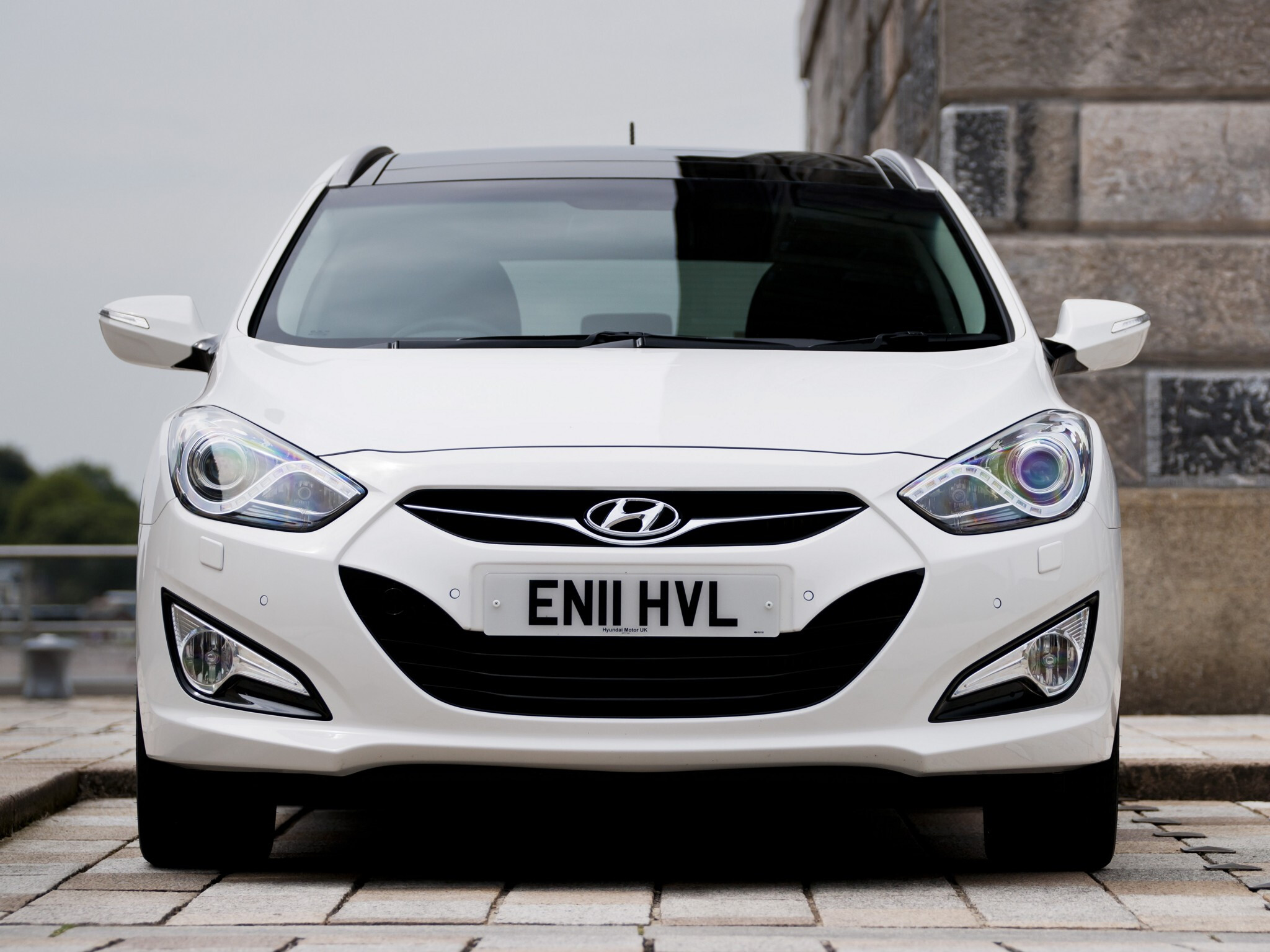

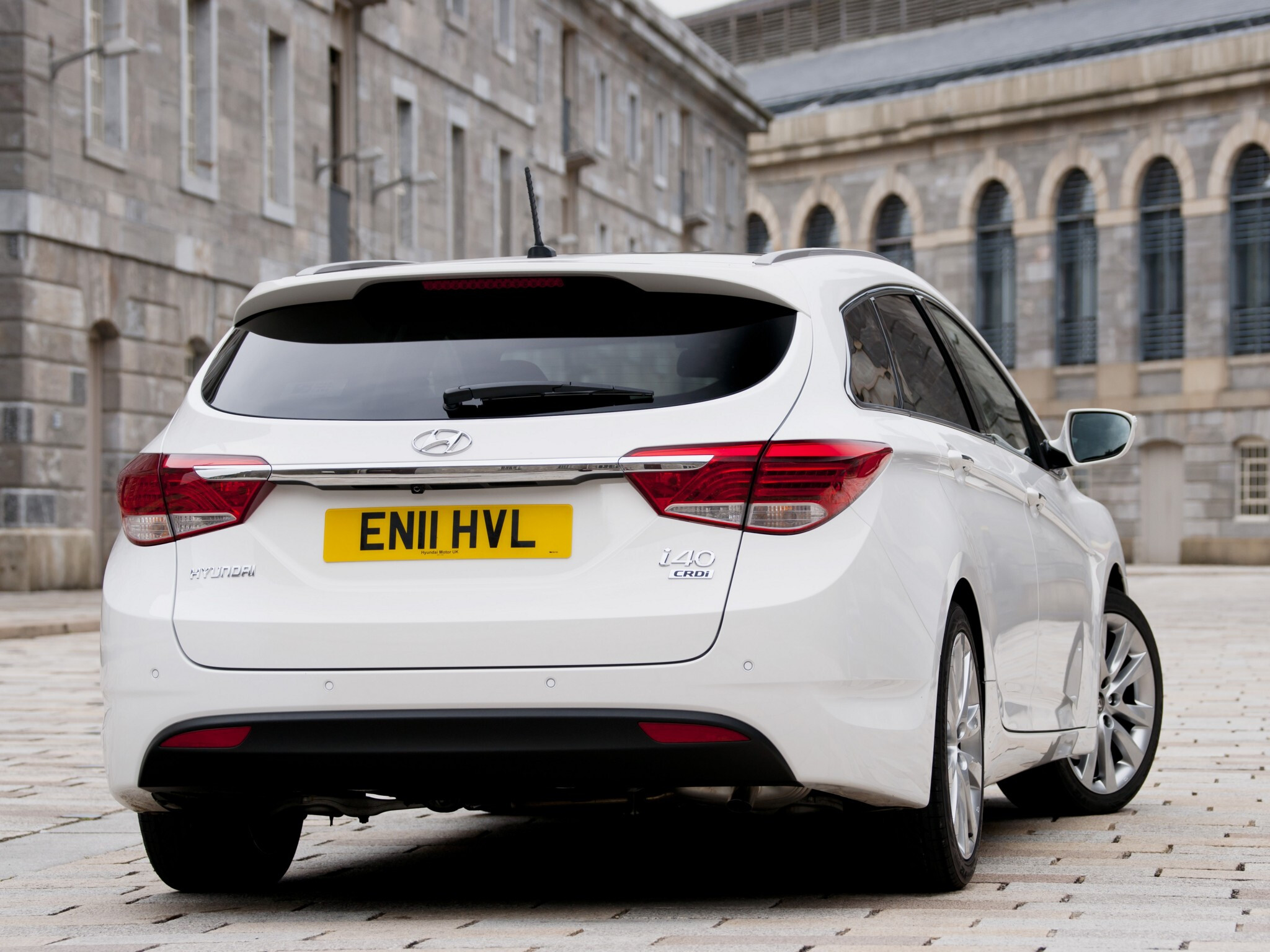

Exterior (click to view)

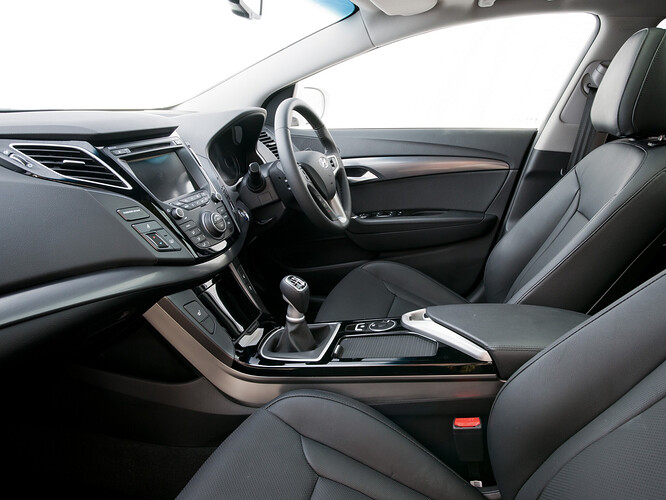

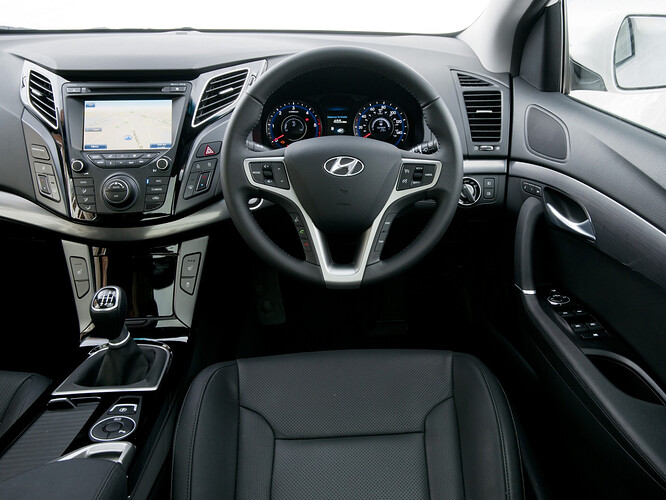

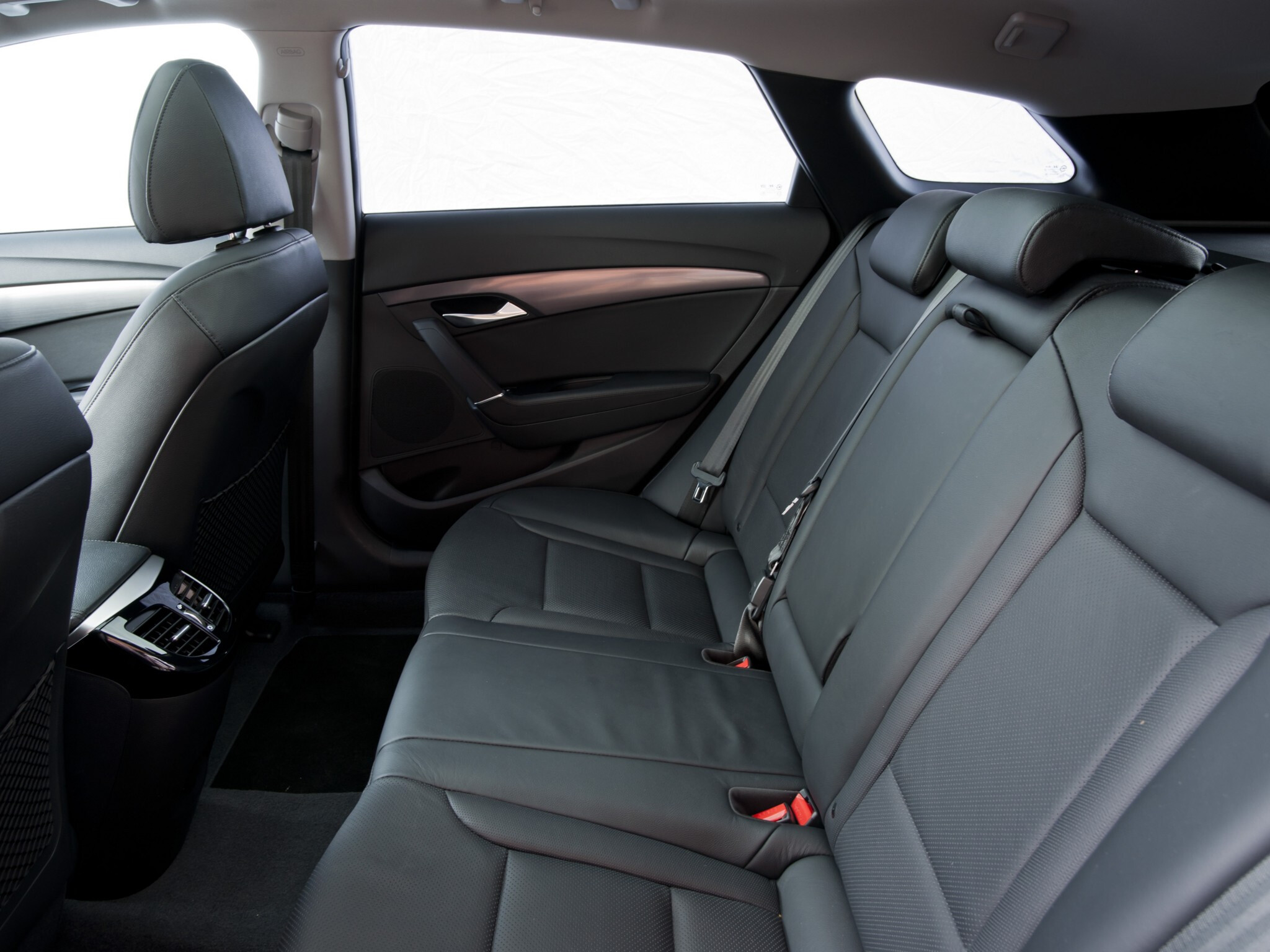

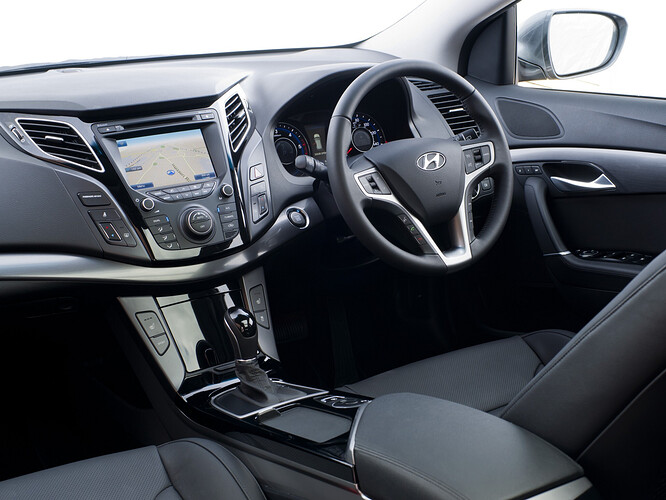

Interior (click to view)





Blueprints (click to view)

Specifications:


Engine:

  • Engine Type: Turbocharged inline-4
  • Fuel Type: Diesel
  • Displacement: 1,685 cubic centimetres (1.7 litres)
    • Bore: 77.2 millimetres
    • Stroke: 90 millimetres
  • Compression Ratio: 17:1
  • Engine Placement: Front-mounted engine, front-wheel drive
  • Transmission Type: 6-speed manual transmission
    • Gear Ratios:
      • Reverse: 3.416
      • 1st Gear: 3.615
      • 2nd Gear: 1.794
      • 3rd Gear: 1.121
      • 4th Gear: 0.855
      • 5th Gear: 0.708
      • 6th Gear: 0.603
    • Final Drive: 4.063

Performance Figures:

  • Peak Power: 134 horsepower, from 3,000 RPM to 4,000 RPM
  • Peak Torque: 330 newton-metres of torque, from 2,000 RPM to 2,500 RPM
  • RPM Limit: 4,400 RPM
  • Power to Weight: 85.19 horsepower per metric tonne
  • 0-60 mph (0-97 km/h): 10 seconds
    • 1/4 mile time: 17.1 seconds
    • 0-1 km: 31.5 seconds
  • Claimed Top Speed: 124 mph (200 km/h)
  • Estimated Top Speed: 127 mph (205 km/h)

Dimensions:

  • Body Style: 5-door station wagon
  • Length: 4,770 millimetres
  • Width: 1,815 millimetres
  • Height: 1,470 millimetres
  • Wheelbase: 2,770 millimetres
  • Front Tread: 1,579 millimetres
  • Rear Tread: 1,585 millimetres
  • Curb Weight: 1,573 kilograms
  • Front Tires: 215/50 R17
  • Rear Tires: 215/50 R17

CC2 Stats:

  • Derby Tier: 1
  • Mastery: 0
  • Pricing: $50k-$80k
  • Exclusivity: None

  • Acceleration: 6.9
  • Handling: 10.8
  • Braking: 11.4
  • Race Class: 55 ClassD
  • Attack Score: 36
  • Defence Score: 86
