πŸ‡©πŸ‡ͺ Volkswagen Polo MK3 CL Variant before facelift (1997 - 1999)

Suggestions CC2 Vehicle Suggestions
, ,
1

Volkswagen Polo MK3 CL Variant

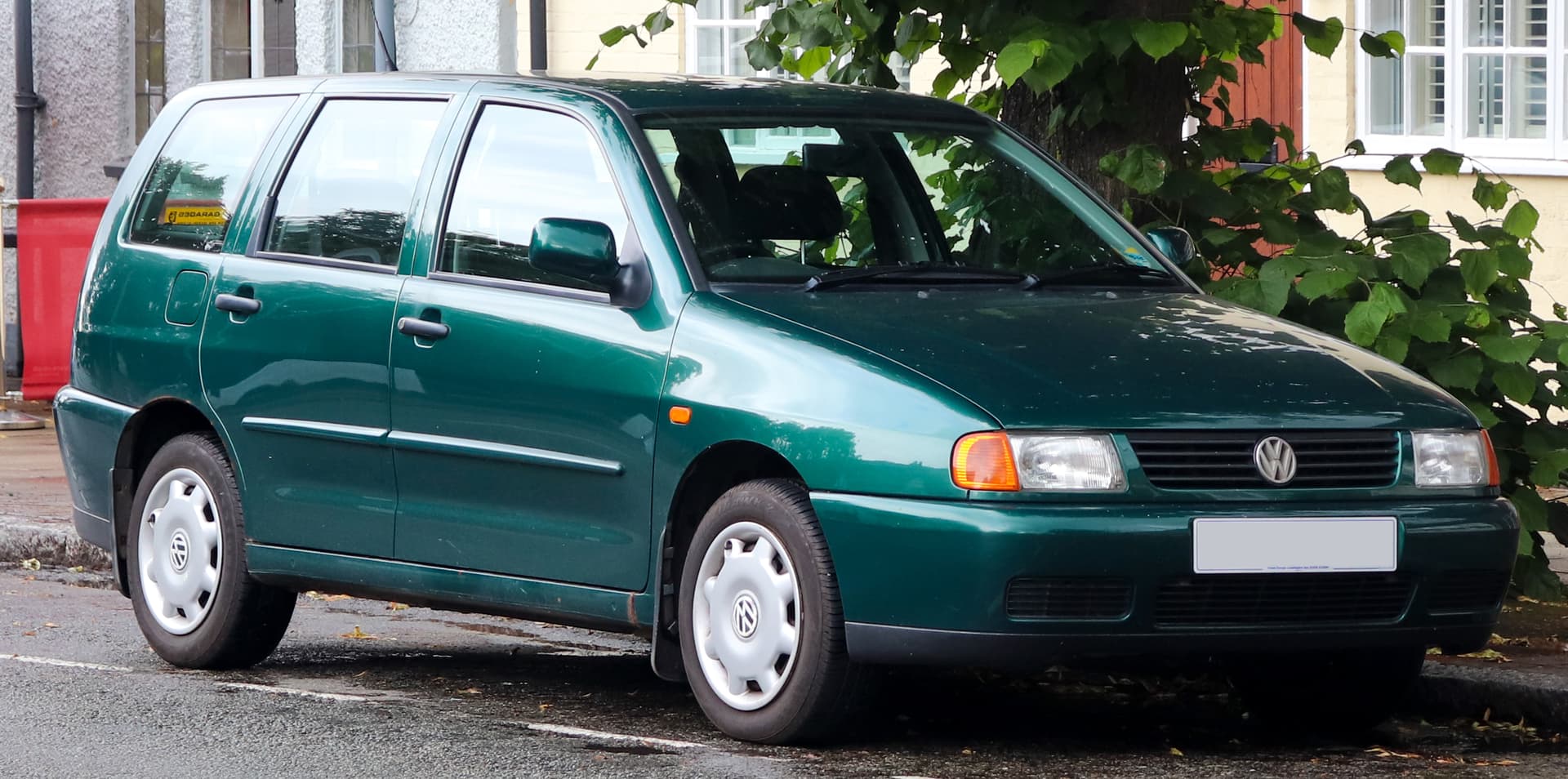

1998_Volkswagen_Polo_CL_Estate_1.6_Front
1998_Volkswagen_Polo_CL_Estate_1.6_Front1920Γ—954 218 KB

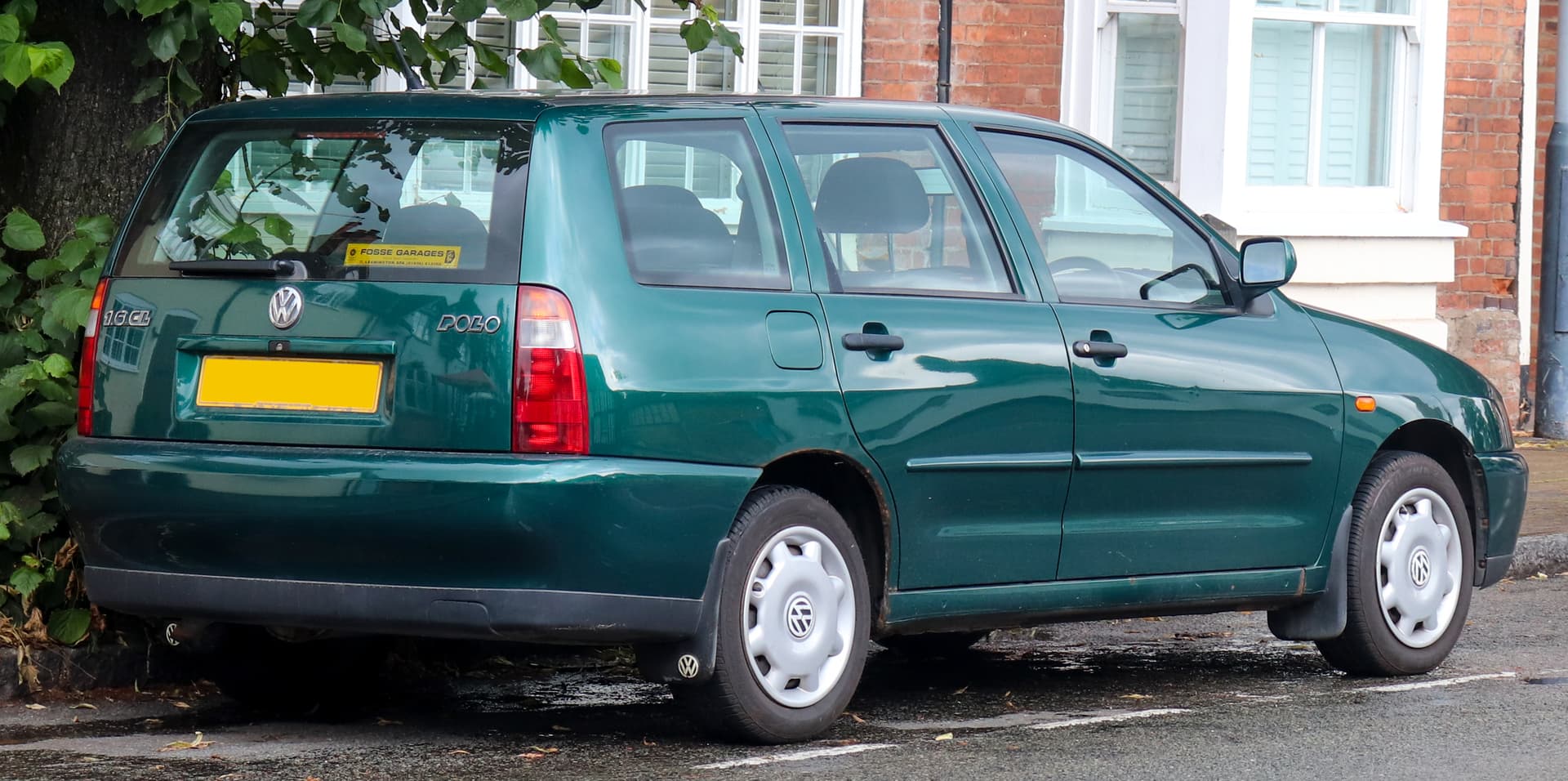

1998_Volkswagen_Polo_CL_Estate_1.6_Rear
1998_Volkswagen_Polo_CL_Estate_1.6_Rear1920Γ—956 220 KB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: B

  • Body type: 5-door Wagon

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Length: 4137 mm

  • Width: 1640 mm

  • Height: 1433 mm

  • Wheelbase: 2444 mm

  • Front wheeltrack: 1429 mm

  • Rear wheeltrack: 1384 mm

  • Front overhang: 826 mm

  • Rear overhang: 867 mm

  • Ground clearance: 139 mm

  • Approach angle: 17.8 Β°

  • Departure angle: 19.0 Β°

  • Steering system type: Rack and pinion with hydraulic power assist

  • Tire size: 185/60 R14

  • Front brake type: Disc

  • Rear brake type: Drum

  • Own weight: 1055 kg

  • Number of seats: 5

  • Euro NCAP test rating: 3/5

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.6

  • Produced: from 1994 to 2000

  • Displacement: 1595 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 75 HP (55 kW) at 5200 rpm

  • Maximum torque: 135 Nm at 2800 rpm

  • Engine mounting: at the front, transverselly

  • Location of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 10.0 : 1

  • Bore Γ— stroke: 76.5 mm Γ— 86.9 mm

  • Injection type: multipoint Bo-Mot MP 9.0

  • Maximum speed: 172 km/h

  • 0 - 100 km/h: 12.2 seconds

  • Engine code: AEE
