πŸ‡©πŸ‡ͺ Volkswagen Passat B3 Sedan (1988 - 1993)

Suggestions CC2 Vehicle Suggestions
, ,
1

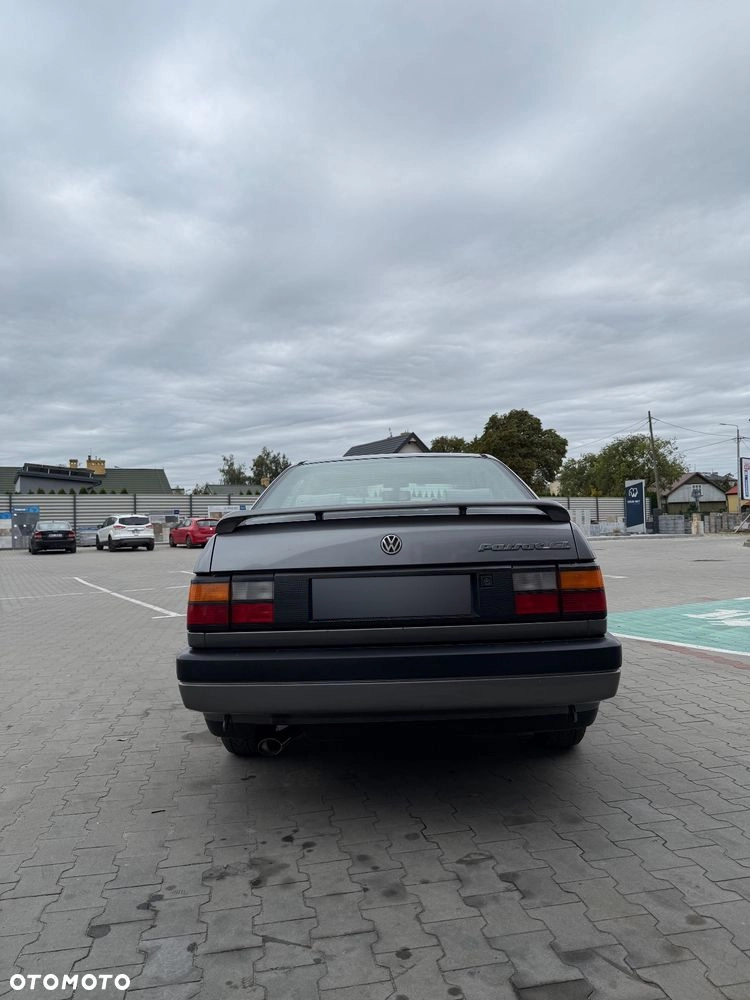

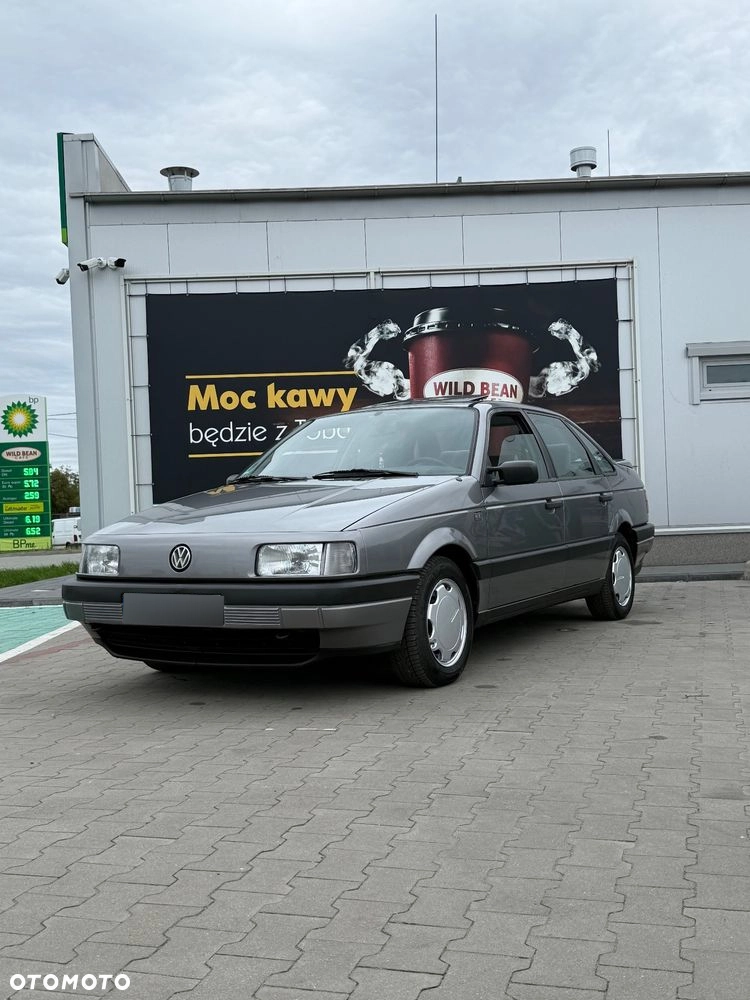

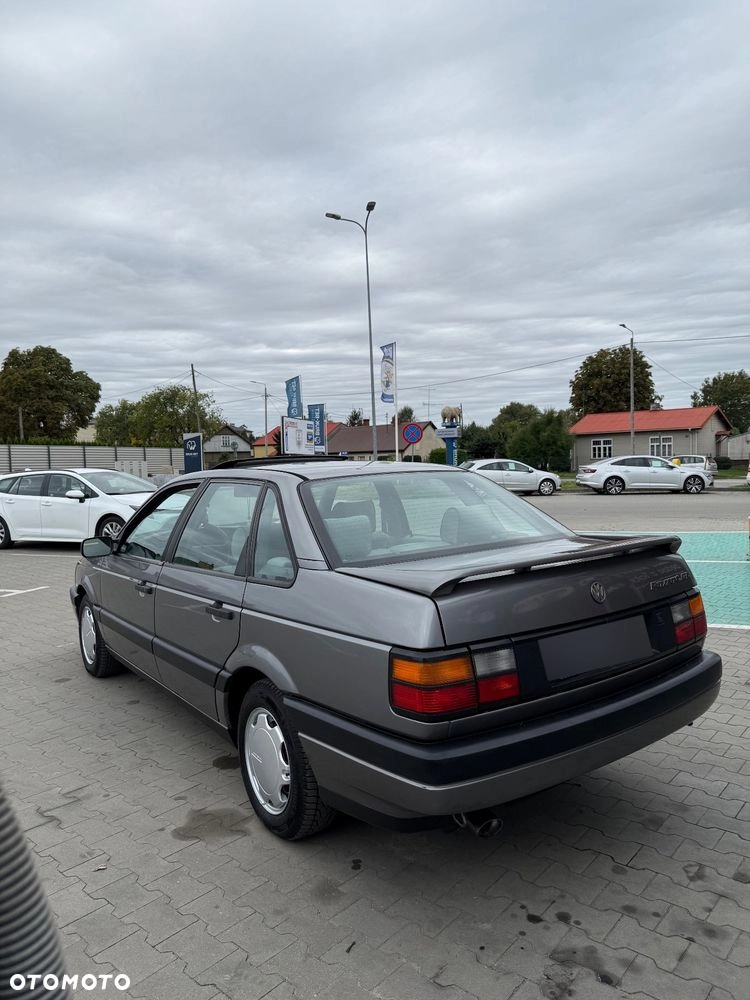

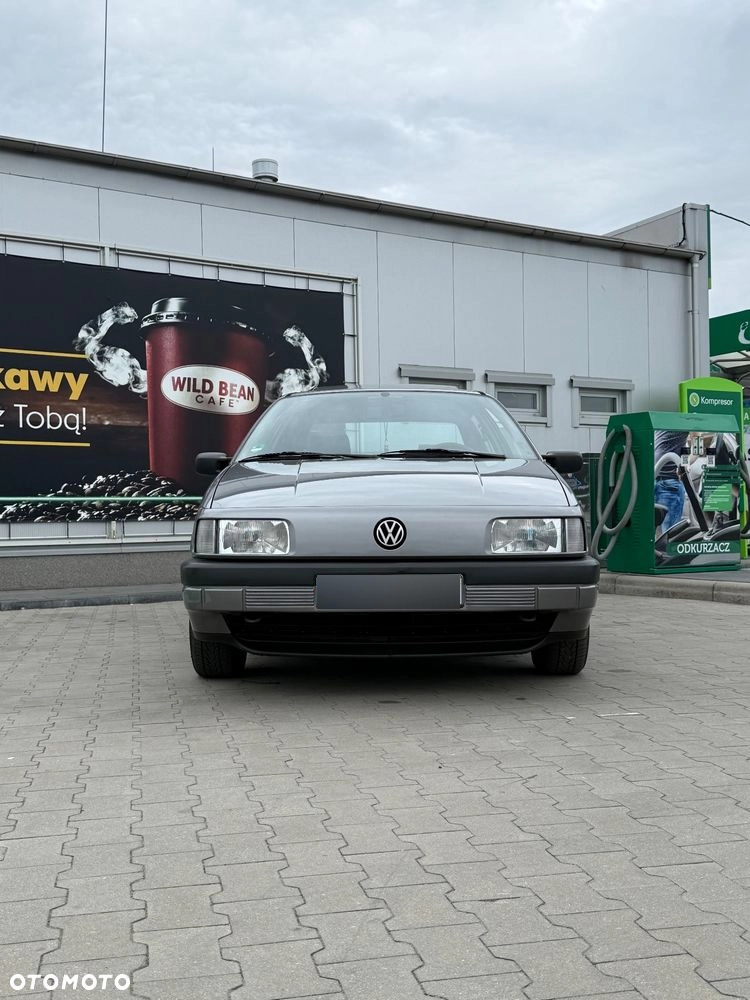

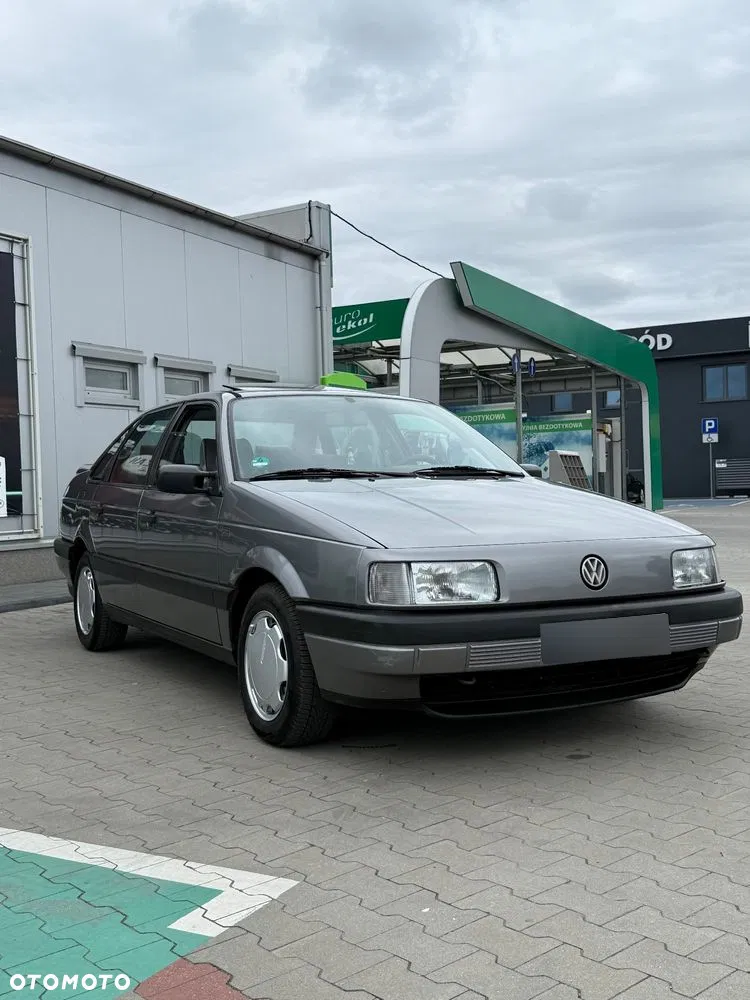

Volkswagen Passat B3 Sedan

image750Γ—1000 305 KB

image (1)
image (1)750Γ—1000 207 KB

image (2)
image (2)750Γ—1000 78.9 KB

image (3)
image (3)750Γ—1000 270 KB

image (4)
image (4)750Γ—1000 288 KB

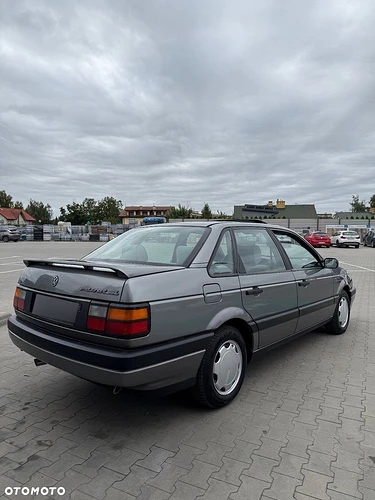

image (5)
image (5)750Γ—1000 254 KB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: D

  • Body type: 4-door sedan

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Length: 4557 mm

  • Width: 1705 mm

  • Height: 1430 mm

  • Wheelbase: 2625 mm

  • Front wheeltrack: 1479 mm

  • Rear wheeltrack: 1422 mm

  • Tire size: 185/65 R14

  • Front brake type: disc

  • Rear brake type: drum

  • Own weight: 1295 kg

  • Number of seats: 5

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.8

  • Produced: from 1988 to 1993

  • Displacement: 1781 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 90 HP (66 kW) at 5500 rpm

  • Maximum torque: 142 Nm at 3000 rpm

  • Engine assembly: at the front, transverselly

  • Location of the camshaft: SOHC (OHC)

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 9.0 : 1

  • Bore Γ— stroke: 81 Γ— 86.4 mm

  • Injection type: single-point (SPI, CPI)

  • Maximum speed: 177 km/h

  • (0 - 100km/h): 13.7 seconds

  • Engine code: RP
