Volkswagen Jetta MK1 C

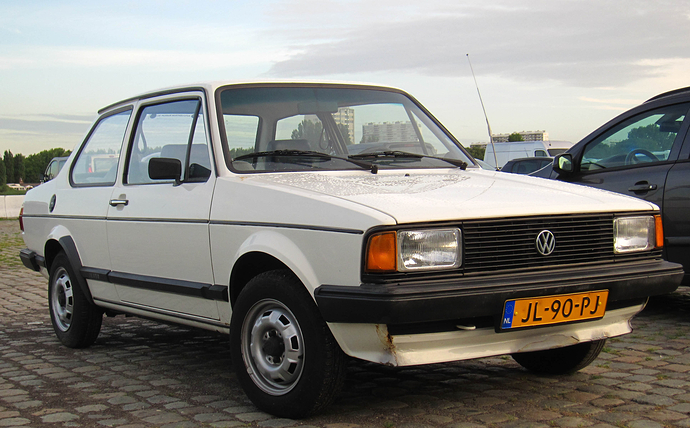

1983_Volkswagen_Jetta_1.3_C_front
1983_Volkswagen_Jetta_1.3_C_front1920Γ—1192 1.36 MB

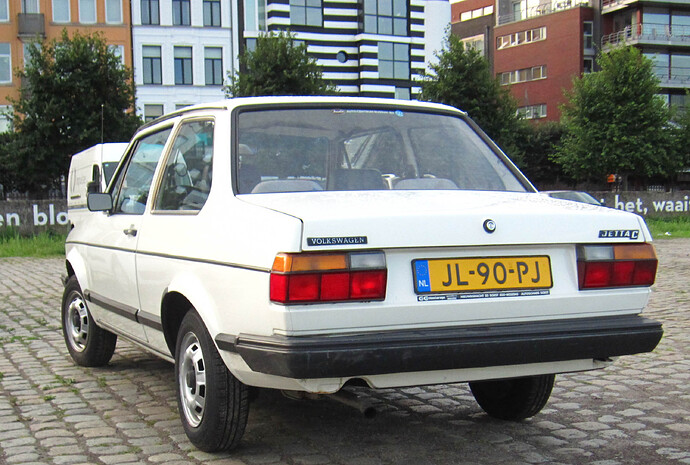

1983_Volkswagen_Jetta_1.3_C_rear
1983_Volkswagen_Jetta_1.3_C_rear2538Γ—1711 388 KB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: C

  • Body type: 2-door sedan

  • Transmision: 4-speed automatic

  • Drivetrain: FWD

  • Length: 4195 mm

  • Width: 1610 mm

  • Height: 1410 mm

  • Wheelbase: 2400 mm

  • Front wheeltrack: 1390 mm

  • Rear wheeltrack: 1358 mm

  • Basic tire sizes: 165/70 R13; 175/70 R13

  • Optional tire sizes: 185/60 R14; 195/50 R15

  • Rim sizes: 5J x 13; 5.5J x 13

  • Front brake type: disc

  • Rear brake type: drum

  • Front suspension type: independent, McPherson struts

  • Rear suspension type: semi-independent, torsion beam

  • Own weight: 805 kg

  • Number of seats: 5

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.3

  • Produced: from 1979 to 1983

  • Displacement: 1272 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 60 HP (44 kW) at 5600 rpm

  • Maximum torque: 95 Nm at 3500 rpm

  • Engine mounting: at the front, transverselly

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 8.2 : 1

  • Bore Γ— stroke: 75 mm Γ— 72 mm

  • Injection type: Solex 34 PIC carburettor

  • Ignition type: electronic

  • Maximum speed: 147 km/h

  • 0 - 100 km/h: 15 seconds

  • Engine code: GF
