🇩🇪 Volkswagen Golf MK3 Harlequin Variant (1993 - 1999)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

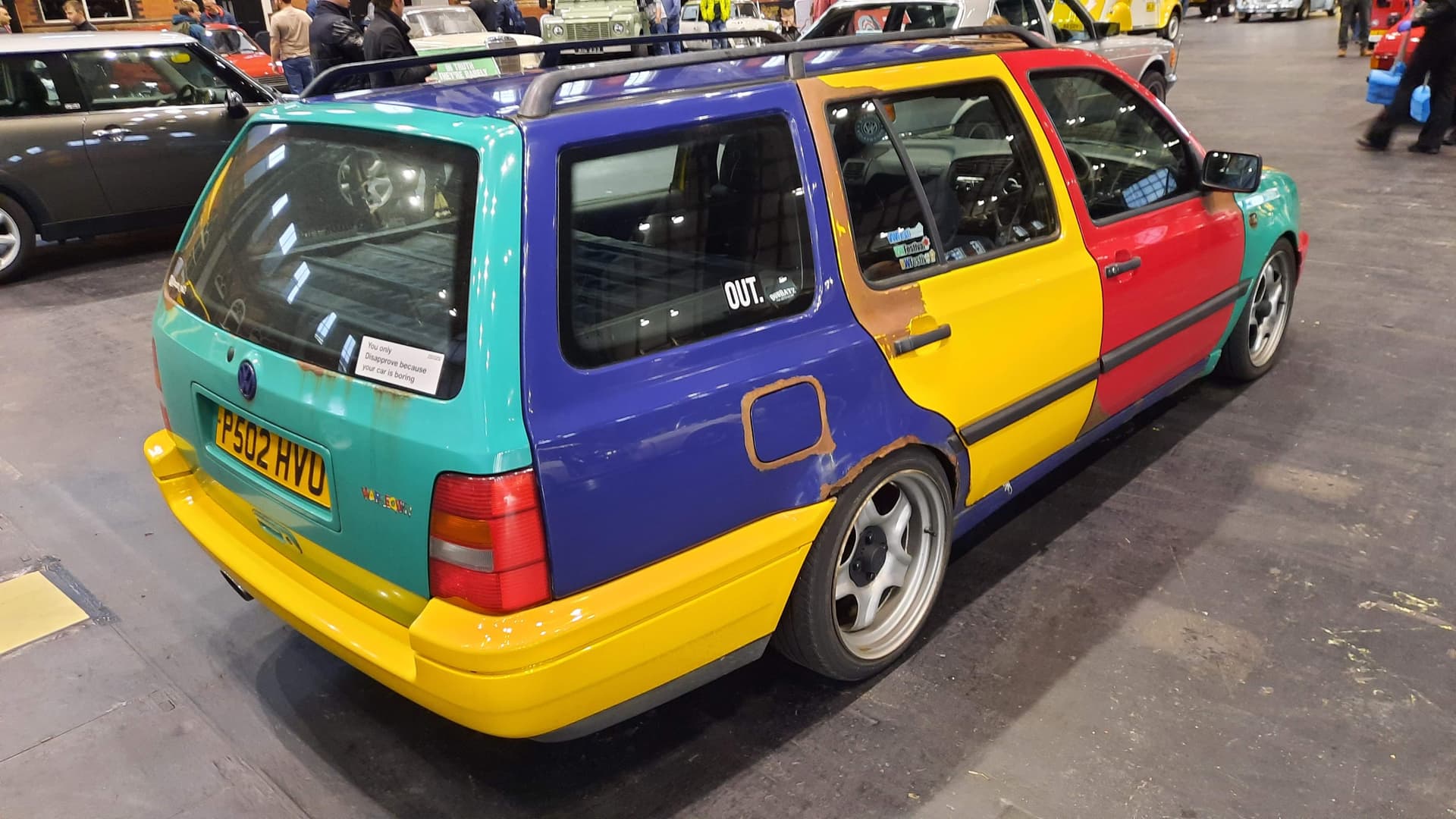

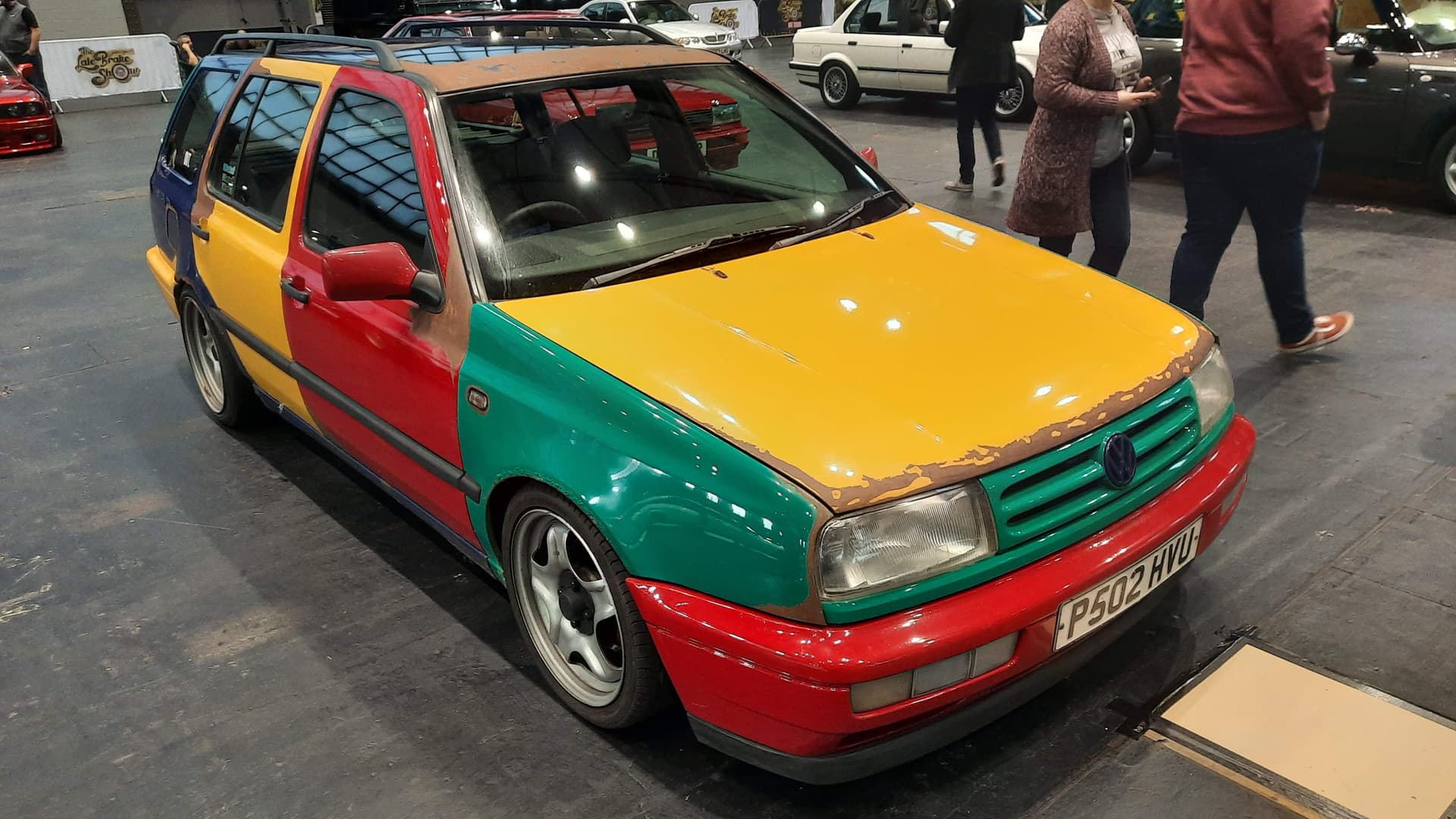

Volkswagen Golf MK3 Harlequin Variant

for some reason pics are named Comfortline while we can clearly see harlequin painting.

–––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: C

• Body type: 5-door wagon

• Transmision: 5-speed automatic

• Drivetrain: FWD

• Length: 4340 mm

• Width: 1694 mm

• Height: 1430 mm

• Wheelbase: 2475 mm

• Front wheeltrack: 1478 mm

• Rear wheeltrack: 1462 mm

• Front overhang: 830 mm

• Rear overhang: 1030 mm

• Ground clearance: 120 mm

• Steering system type: Rack and pinion with hydraulic power assist

• Tire size: 195/60 R14

• Front brake type: Disc

• Rear brake type: Drum

• Front suspension type: Independent MacPherson struts, stabilizer bar, coil springs

• Rear suspension type: Semi-independent single wishbones, coaxial coil springs

• Shock absorbers: Hydraulic telescopic

• Own weight: 1270 kg

• Number of seats: 5

• Euro NCAP test rating: 4/5

–––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Model: 1.9 TDI

• Produced: from 1993 to 1996

• Displacement: 1896 cm³

• Engine type: 4-stroke diesel

• Engine power: 90 hp (66 kW) at 4000 rpm

• Maximum torque: 202 Nm at 1900 rpm

• Engine mounting: at the front, transverselly

• Top-up: turbocharger, intercooler

• Location of the camshaft: SOHC

• Number of cylinders: 4

• Cylinder arrangement: inline

• Number of valves: 8

• Compression ratio: 19.5:1

• Bore × stroke: 79.5 mm × 95.5 mm

• Injection type: direct

• Ignition: compression

• Maximum speed: 178 km/h

• 0 - 100 km/h: 12.8 seconds

• Engine code: 1Z

[Yewnos_100]

@𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝

for some reason pics are named Comfortline while we can clearly see harlequin painting.

wasn’t the original Harlekin just a hatch?

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

idk
