πŸ‡©πŸ‡ͺ Trabant 1.1 Universal (1990 - 1991)

Suggestions CC2 Vehicle Suggestions
, ,
1

Trabant 1.1 Universal

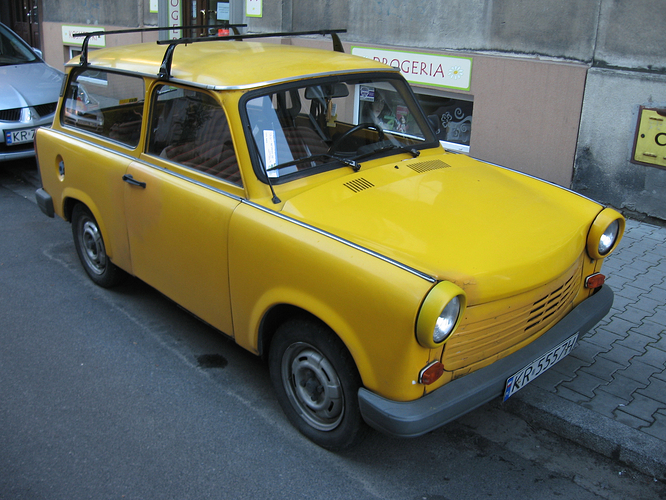

Yellow_Trabant_1,1_Universal_in_KrakΓ³w_(3)
Yellow_Trabant_1,1_Universal_in_KrakΓ³w_(3)1920Γ—1440 2.26 MB

Yellow_Trabant_1,1_Universal_in_KrakΓ³w_(1)
Yellow_Trabant_1,1_Universal_in_KrakΓ³w_(1)1920Γ—1440 2.19 MB

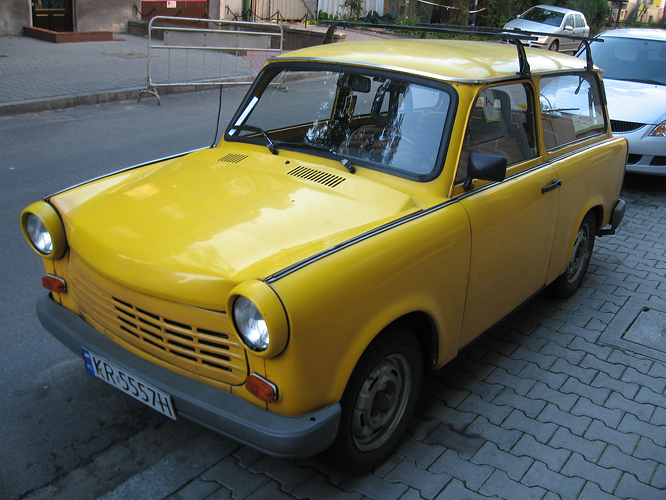

Yellow_Trabant_1,1_Universal_in_KrakΓ³w
Yellow_Trabant_1,1_Universal_in_KrakΓ³w1920Γ—1440 2.26 MB

Yellow_Trabant_1,1_Universal_in_KrakΓ³w_(2)
Yellow_Trabant_1,1_Universal_in_KrakΓ³w_(2)1920Γ—1440 2.29 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: B

  • Body type: 3-door wagon

  • Transmision: 4-speed automatic

  • Drivetrain: FWD

  • Length: 3521 mm

  • Width: 1528 mm

  • Height: 1420 mm

  • Wheelbase: 2020 mm

  • Front wheeltrack: 1284 mm

  • Rear wheeltrack: 1255 mm

  • Tire size: 145/80 SR 13

  • Rim size: 4J x 13 H2

  • Front brake type: disc

  • Rear brake type: drum

  • Front suspension type: independent, MacPherson struts with triangular transverse links and telescopic shock absorbers

  • Rear suspension type: independent with transverse links and coil springs combined with hydraulic telescopic shock absorbers

  • Own weight: 735 kg

  • Number of seats: 4

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.1

  • Produced: from 1990 to 1991

  • Displacement: 1043 cmΒ³

  • Engine type: 4-stroke petrol

  • Cooling: water

  • Engine power: 40 HP (29.4 kW) at 5300 rpm

  • Maximum torque: 74 Nm at 3000 rpm

  • Engine mounting: at the front, transverselly

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 9.5 : 1

  • Bore x stroke: 75 mm x 59 mm

  • Injection type: Weber 32 TLA carburetor

  • Ignition type: electronic

  • Maximum speed: 125 km/h

  • 0 - 100 km/h: 22 seconds

  • Engine code: BM820
