🇨🇿 Škoda 1203 (1968 - 1981)

[𝚂𝚝𝚒𝚕𝚕𝙶𝚎𝚝𝚝]

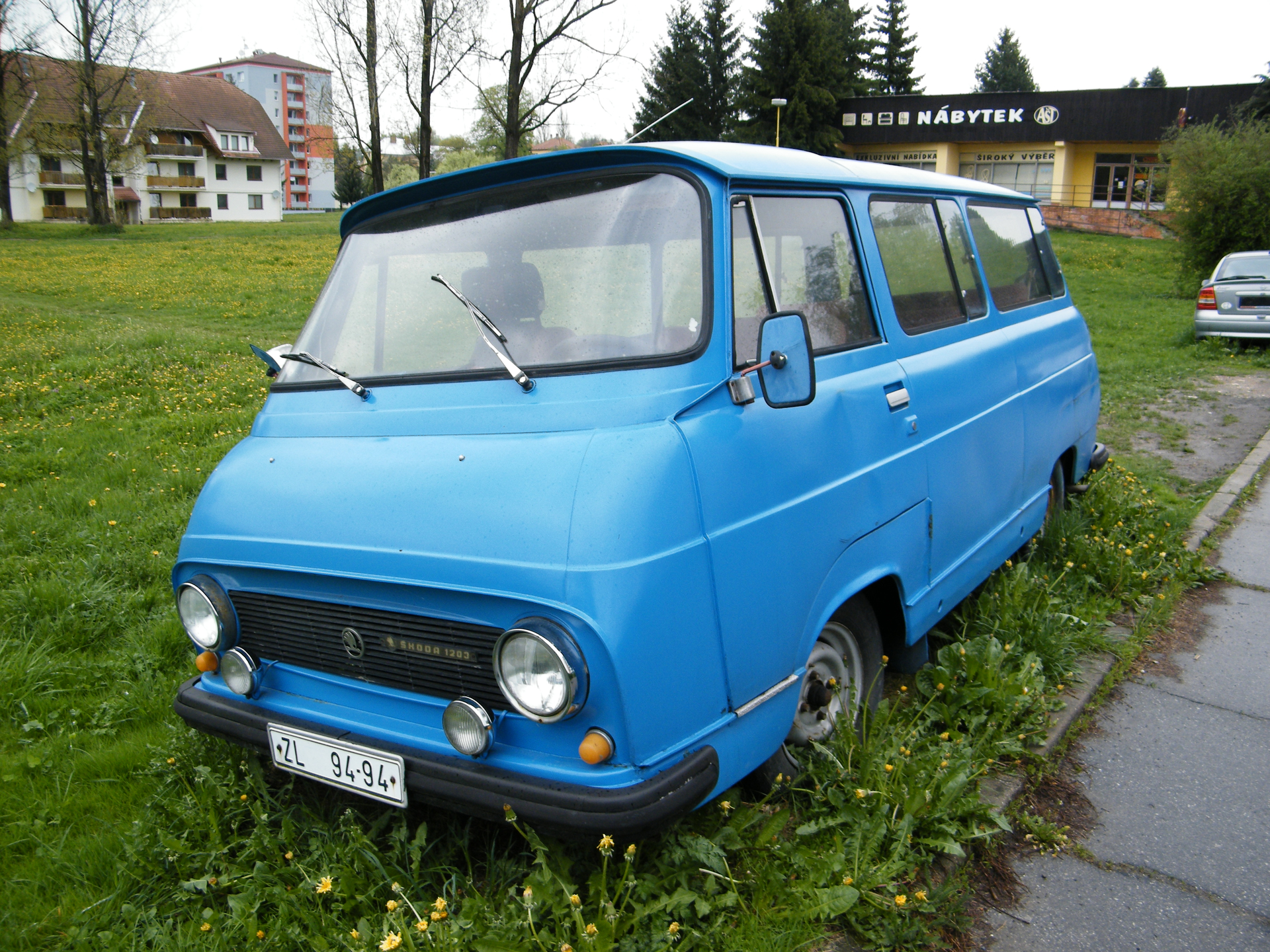

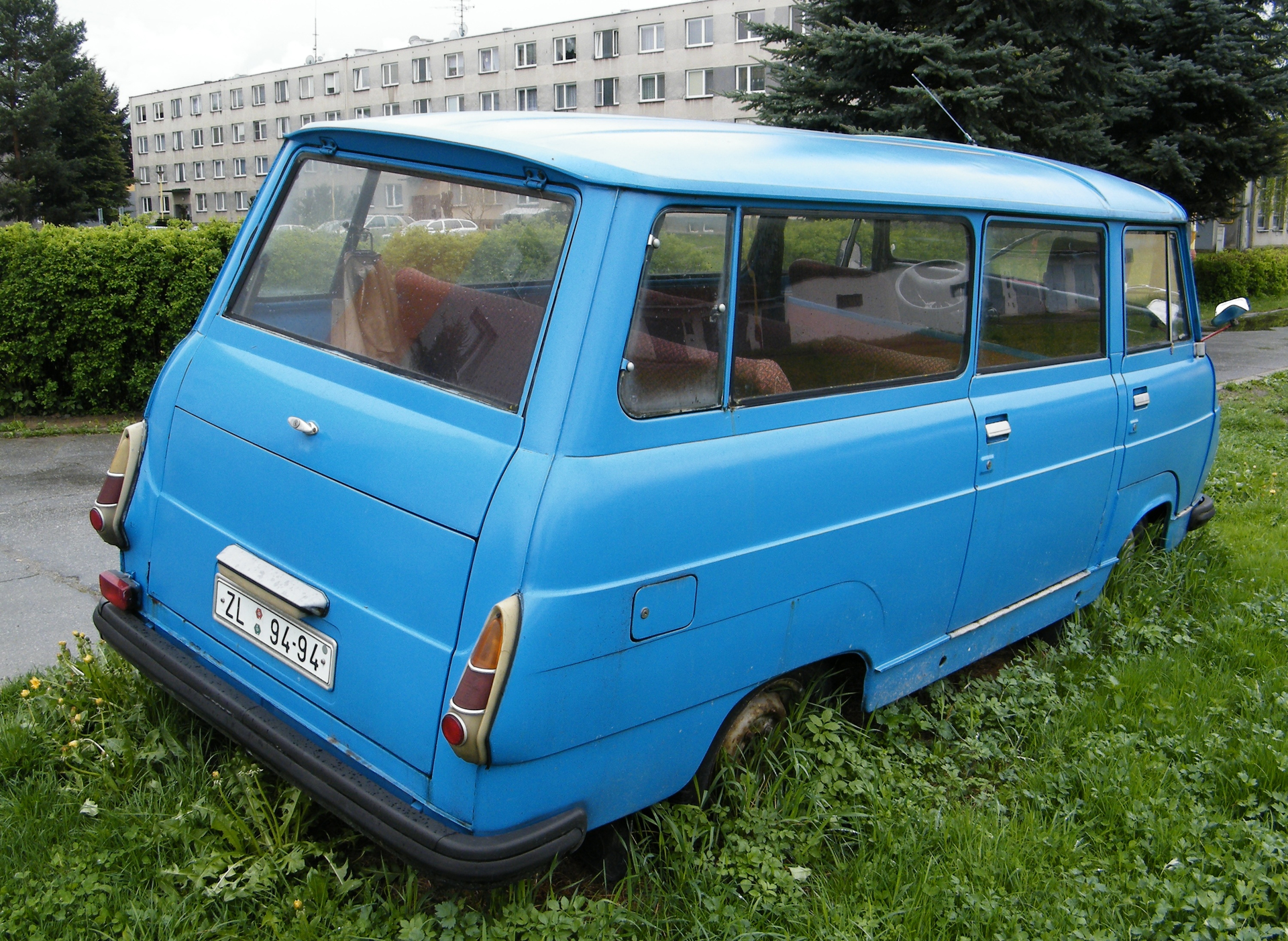

Škoda 1203

–––––––––––––––––––––––––––––––––––

▶️ 1. Main ◀️

• Class: LCV

• Body type: minibus

• Transmision: 4-speed automatic

• Clutch type: single-disc, dry

• Drivetrain: RWD

• Length: 4520 mm

• Width: 1800 mm

• Height: 1900 mm

• Wheelbase: 2320 mm

• Front wheeltrack: 1320 mm

• Rear wheeltrack: 1345 mm

• Ground clearance: 170 mm

• Tire size: 165/80 R15

• Front brake type: drum

• Rear brake type: drum

• Front suspension type: independent with wishbones and coil springs

• Rear suspension type: dependent on longitudinal leaf springs

• Own weight: 1120 kg

• Number of seats: 8

–––––––––––––––––––––––––––––––––––

▶️ 2. Engine ◀️

• Model: 1.2

• Produced: from 1968 to 1981

• Displacement: 1221 cm³

• Engine type: 4-stroke petrol

• Cooling: water

• Engine power: 47 HP (35 kW) at 4600 rpm

• Maximum torque: 88 Nm at 3000-4600 min

• Engine assembly: at the front, longitudinally

• Position of the camshaft: OHV

• Number of cylinders: 4

• Cylinder arrangement: inline

• Number of valves: 8

• Compression ratio: 7.8: 1

• Bore × stroke: 72 mm × 75 mm

• Injection type: 2-chamber Jikov 32 BS-14 carburetor

• Maximum speed: 95 km/h

• 0 - 80 km/h: 40 seconds
