SEAT Inca Panel-Van

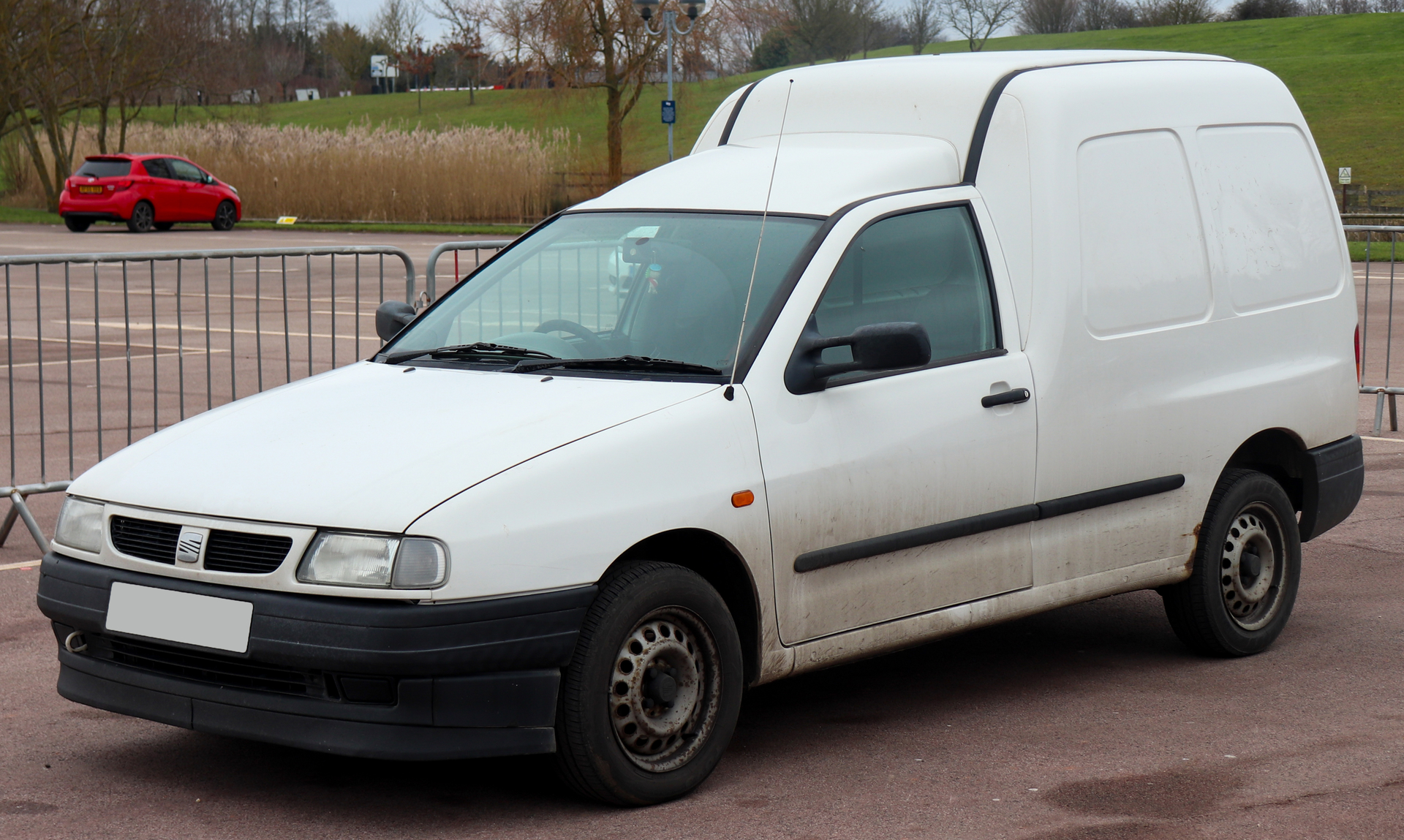

2002_SEAT_Inca_SDi_1.9_Front
2002_SEAT_Inca_SDi_1.9_Front1920Γ—1149 1.73 MB

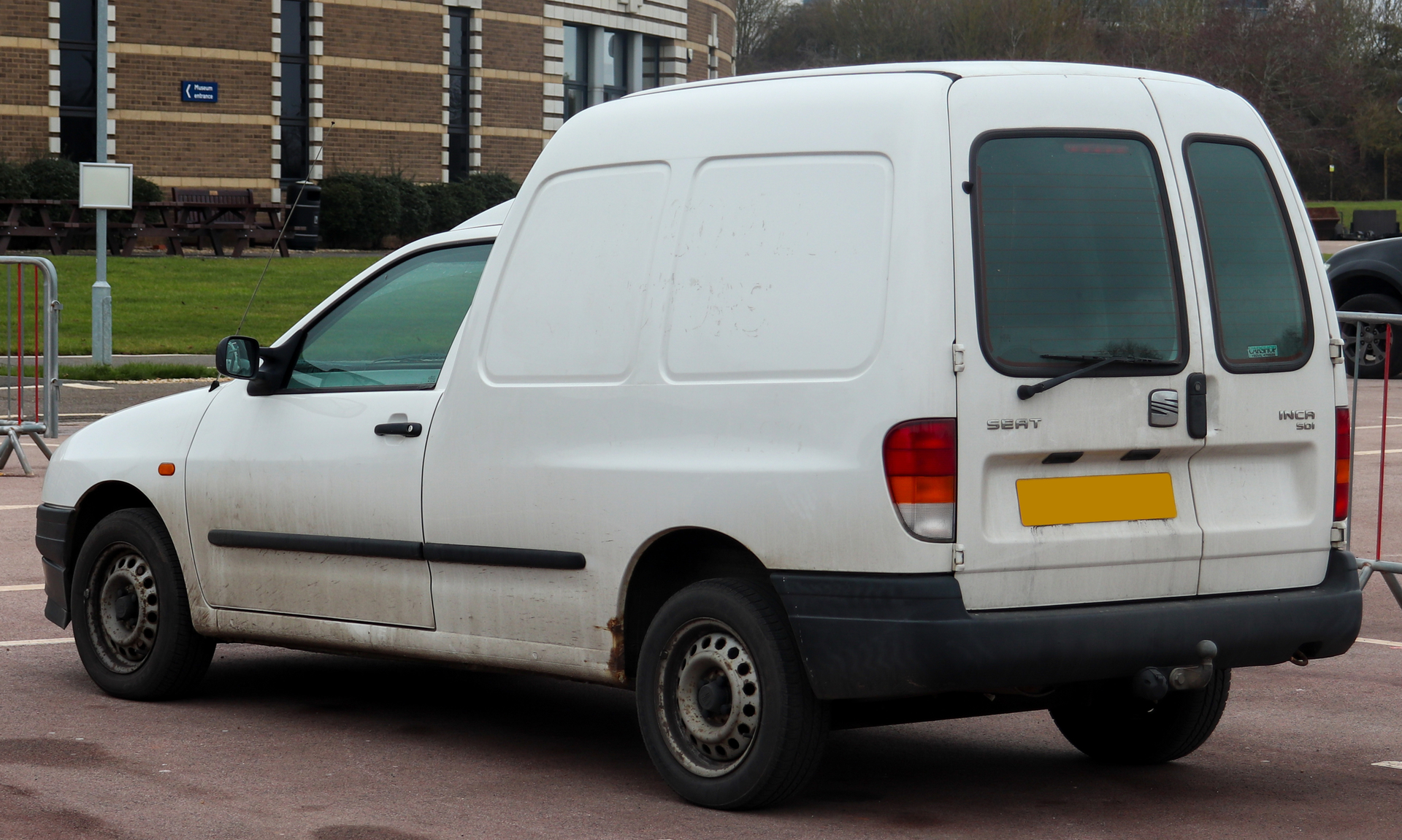

2002_SEAT_Inca_SDi_1.9_Rear
2002_SEAT_Inca_SDi_1.9_Rear1920Γ—1151 1.66 MB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: B LCV

  • Body type: 2-door panel-van

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Length: 4207 mm

  • Width: 1695 mm

  • Height: 1836 mm

  • Wheelbase: 2601 mm

  • Front wheeltrack: 1436 mm

  • Rear wheeltrack: 1452 mm

  • Front overhang: 859 mm

  • Rear overhang: 747 mm

  • Steering system type: Rack and pinion with hydraulic power steering

  • Basic tire size: 175/65 R14

  • Optional tire size: 185/60 R14

  • Rim size: 5.5J x 14

  • Front brake type: disc

  • Rear brake type: drum

  • Own weight: 1165 kg

  • Number of seats: 2

  • Euro NCAP test rating: 3/5

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.9 SDI

  • Produced: from 1995 to 2003

  • Displacement: 1896 cmΒ³

  • Engine type: 4-stroke diesel

  • Engine power: 64 hp (47 kW) at 4200 rpm

  • Maximum torque: 125 Nm at 2000 rpm

  • Engine mounting: at the front, transverselly

  • Position of the camshaft: SOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 19.5:1

  • Bore x stroke: 79.5 mm Γ— 95.5 mm

  • Ignition type: compression

  • Injection type: direct

  • Maximum speed: 144 km/h

  • 0 - 100 km/h: 20.3 seconds

  • Engine code: AEY
