πŸ‡ͺπŸ‡Έ SEAT CΓ²rdoba MK2 S (2002 - 2009)

Suggestions CC2 Vehicle Suggestions
,
1

SEAT CΓ²rdoba MK2 S

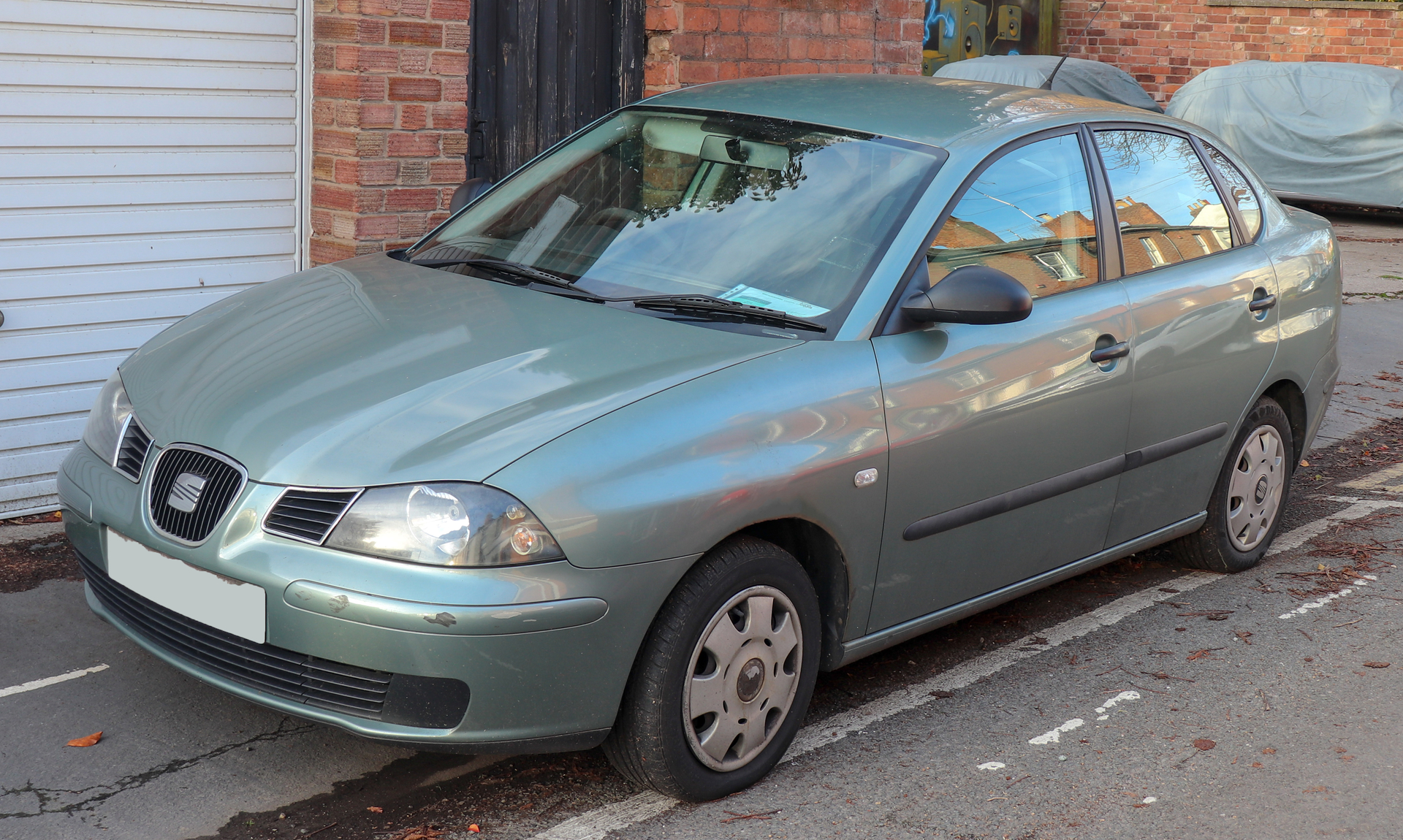

2003_SEAT_Cordoba_S_1.4_Front
2003_SEAT_Cordoba_S_1.4_Front1920Γ—1150 2.09 MB

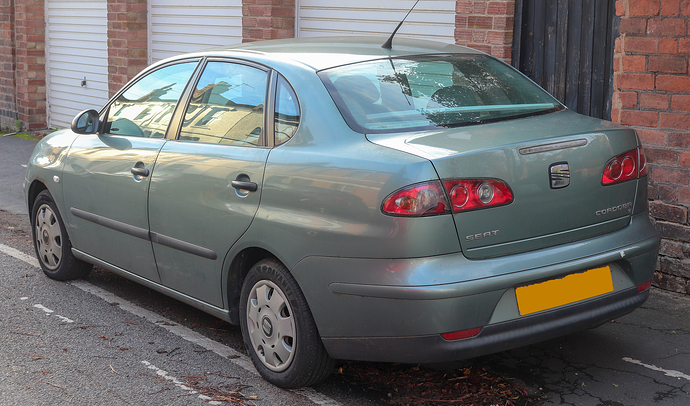

2003_SEAT_Cordoba_S_1.4_Rear
2003_SEAT_Cordoba_S_1.4_Rear1920Γ—1132 1.96 MB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: B

  • Body type: 4-door sedan

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Turning diameter: 10.8 m

  • Turning radius: 5.4 m

  • Length: 4280 mm

  • Width: 1698 mm

  • Height: 1441 mm

  • Wheelbase: 2460 mm

  • Front track: 1419 mm

  • Rear track: 1408 mm

  • Front overhang: 831 mm

  • Rear overhang: 989 mm

  • Ground clearance: 135 mm

  • Steering system type: rack and pinion with hydraulic power assist

  • Basic tire size: 165/70 R14

  • Optional tire sizes: 185/60 R14; 195/55 R15; 205/45 R16

  • Front brake type: Ventilated disc

  • Rear brake type: Drum

  • Front suspension type: Independent McPherson strut

  • Rear suspension type: Semi-independent torsion beam

  • Own weight: 1090 kg

  • Number of seats: 5

  • Euro NCAP test rating: 4/5

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.4

  • Produced: from 2002 to 2008

  • Displacement: 1390 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 75 HP (55 kW) at 5000 rpm

  • Maximum torque: 126 Nm at 3800 rpm

  • Engine mounting: at the front, transverselly

  • Position of the camshaft: DOHC

  • Number of cylinders: 4

  • Cylinder layout: inline

  • Number of valves: 16

  • Compression ratio: 10.5:1

  • Bore Γ— stroke: 76.5 mm Γ— 75.6 mm

  • Injection type: multipoint

  • Ignition type: electronic

  • Maximum speed: 176 km/h

  • 0 - 100 km/h: 13.6 seconds

  • Engine code: BKY

5 Likes
