πŸ‡΅πŸ‡± FSO 125p ME Sedan (1983 - 1991)

Suggestions CC2 Vehicle Suggestions
, ,
1

FSO 125p ME Sedan

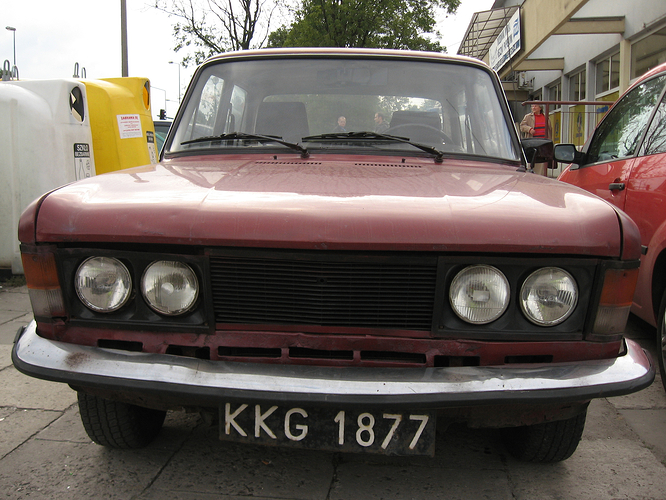

FSO_125p_1.3_ME_in_KrakΓ³w_(4)
FSO_125p_1.3_ME_in_KrakΓ³w_(4)1920Γ—1440 2.15 MB

FSO_125p_1.3_ME_in_KrakΓ³w_(5)
FSO_125p_1.3_ME_in_KrakΓ³w_(5)1920Γ—1440 2.07 MB

FSO_125p_1.3_ME_in_KrakΓ³w_(3)
FSO_125p_1.3_ME_in_KrakΓ³w_(3)1920Γ—1440 2.33 MB

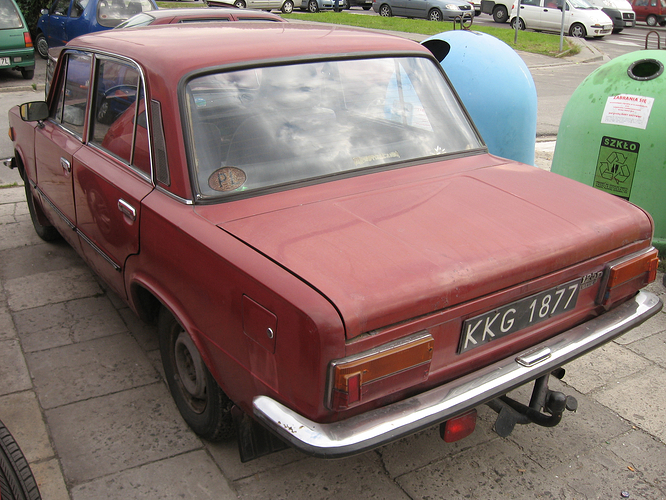

FSO_125p_1.3_ME_in_KrakΓ³w
FSO_125p_1.3_ME_in_KrakΓ³w1920Γ—1440 2.36 MB

FSO_125p_1.3_ME_in_KrakΓ³w_(2)
FSO_125p_1.3_ME_in_KrakΓ³w_(2)1920Γ—1440 2.3 MB

FSO_125p_1.3_ME_in_KrakΓ³w_(1)
FSO_125p_1.3_ME_in_KrakΓ³w_(1)1920Γ—1440 2.37 MB

––––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: D

  • Body type: 4-door sedan

  • Transmision: 5-speed automatic

  • Clutch type: single-disc dry with six springs, mechanically controlled

  • Drivetrain: RWD

  • Turning diameter: 10.8 m

  • Length: 4226 mm

  • Width: 1630 mm

  • Height: 1440 mm

  • Wheelbase: 2506 mm

  • Front wheeltrack: 1298 mm

  • Rear wheeltrack: 1275 mm

  • Front overhang: 670 mm

  • Rear overhang: 1050 mm

  • Ground clearance: 130 mm

  • Basic tire size: 165/80 R13

  • Optional tire size: 175/80 R13

  • Basic rim size: 4.5J x 13

  • Optional rim size: 5J x 13

  • Front brake type: disc

  • Rear brake type: disc

  • Brake disc diameter: 227 mm

  • Handbrake: mechanical acting on the rear wheels

  • Front suspension type: independent, upper and lower Triangular wishbones, coil springs

  • Rear suspension type: rigid rear axle, two longitudinal 2-leaf springs

  • Shock absorbers type: telescopic

  • Own weight: 970 kg

  • Number of seats: 5

––––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.3 ME M - Polonez engine, E - Electronic ignition

  • Produced: from 1983 to 1991

  • Displacement: 1295 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 65 HP (48 kW) at 5300 rpm

  • Maximum torque: 93.2 Nm at 3400 rpm

  • Engine mounting: at the front, longitudinally

  • Position of the camshaft: OHV

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 8

  • Compression ratio: 9.0:1

  • Bore x stroke: 72 mm Γ— 79.5 mm

  • Injection type: Weber 34 SC2 carburetor

  • Ignition type: electronic

  • Maximum speed: 145 km/h

  • 0 - 100 km/h: 20 seconds

  • Engine code: 116C.076/56
