πŸ‡§πŸ‡ͺ Ford Mondeo MK1 LX Wagon before facelift (1992 - 1996)

Suggestions CC2 Vehicle Suggestions
,
1

Ford Mondeo MK1 LX Wagon

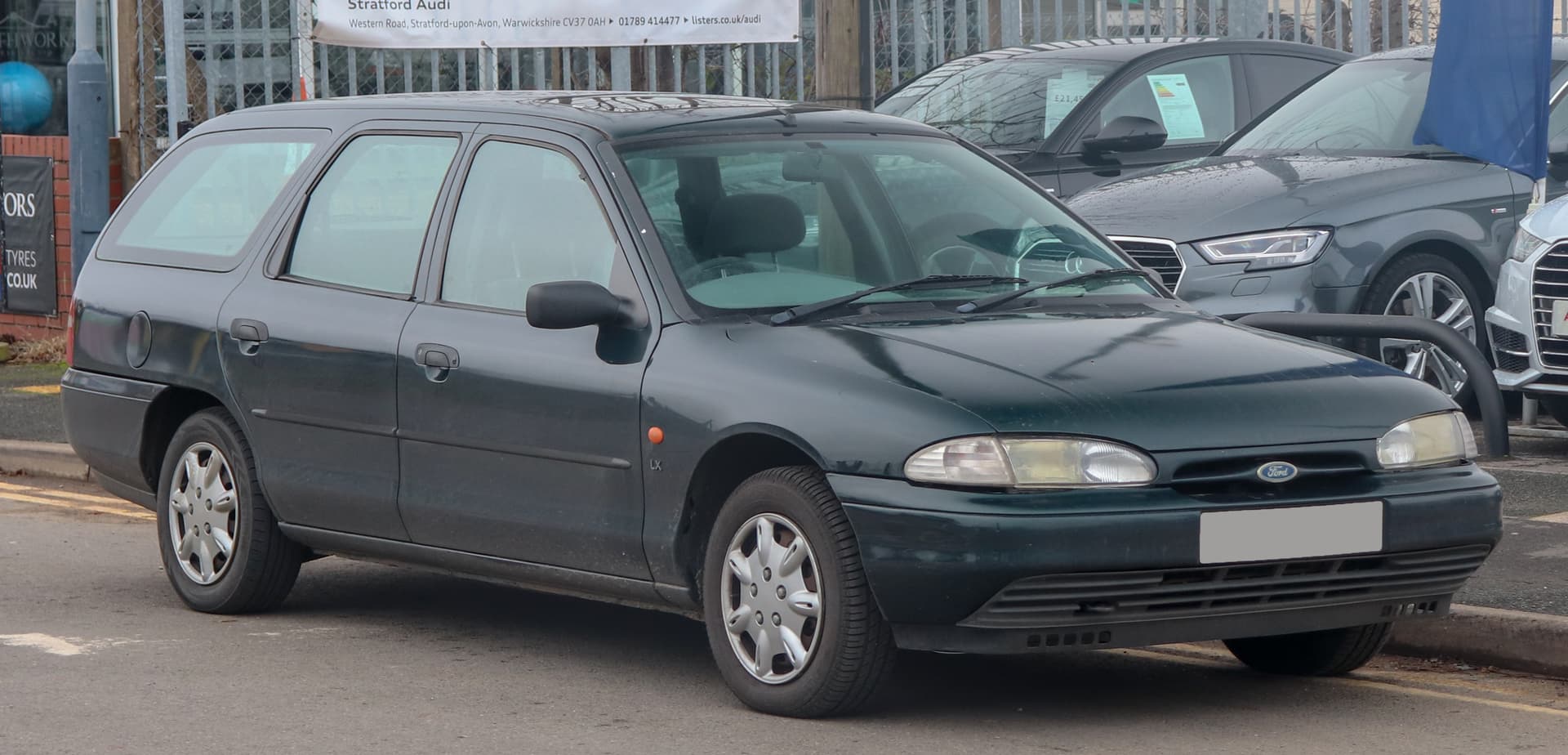

1996_Ford_Mondeo_LX_Estate_1.8_Front
1996_Ford_Mondeo_LX_Estate_1.8_Front1920Γ—924 159 KB

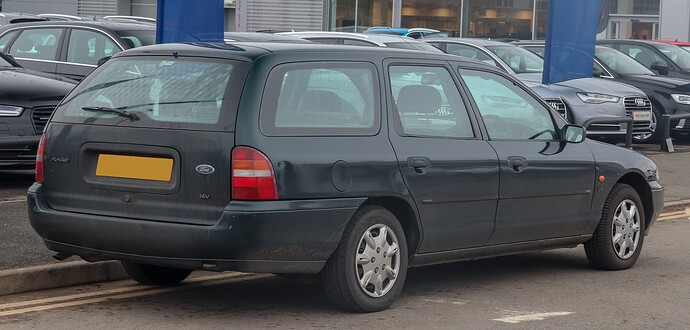

1996_Ford_Mondeo_LX_Estate_1.8_Rear
1996_Ford_Mondeo_LX_Estate_1.8_Rear1920Γ—920 143 KB

–––––––––––––––––––––––––––––––––––

▢️ 1. Main ◀️

  • Class: D

  • Body type: 5-door wagon

  • Transmision: 5-speed automatic

  • Drivetrain: FWD

  • Length: 4631 mm

  • Width: 1746 mm

  • Height: 1391 mm

  • Wheelbase: 2704 mm

  • Front wheeltrack: 1503 mm

  • Rear wheeltrack: 1487 mm

  • Steering system type: rack and pinion with hydraulic power assist

  • Basic tire size: 185/65 R14

  • Optional tire sizes: 195/55 R15; 195/60 R14; 205/50 R16; 205/55 R15; 215/40 R17

  • Basic rim size: 6J x 14

  • Front brake type: ventilated disc

  • Rear brake type: drum

  • Own weight: 1295 kg

  • Number of seats: 5

–––––––––––––––––––––––––––––––––––

▢️ 2. Engine ◀️

  • Model: 1.8 16v

  • Produced: from 1993 to 1996

  • Displacement: 1796 cmΒ³

  • Engine type: 4-stroke petrol

  • Engine power: 114 HP (86 kW) at 5750 rpm

  • Maximum torque: 158 Nm at 3750 rpm

  • Engine mounting: at the front, transverselly

  • Location of the camshaft: DOHC

  • Number of cylinders: 4

  • Cylinder arrangement: inline

  • Number of valves: 16

  • Compression ratio: 10.0 : 1

  • Bore x stroke: 80.6 mm x 88 mm

  • Injection type: sequential

  • Ignition type: spark

  • Maximum speed: 190 km/h

  • 0 - 100 km/h: 11.4 seconds

  • Engine code: RKA
